[Clean & Pack]Duralumin Plates - A2017P, Dimension Configurable
![[Clean & Pack]Duralumin Plates - A2017P, Dimension Configurable](http://pre-my.misumi-ec.com/linked/material/mech/MSM1/PHOTO/110310989909_001.jpg?$product_main$)
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.
(i)Caution
- In principle, products over 30 kg will be delivered on F.O.B. Please prepare loading and unloading machinery such as forklifts.
- Products over 50 kg will be delivered in wooden crates. Products weighting 50 kg or less may also be delivered in wooden crates depending on its dimensions.
Part Number
Configured Part Number is shown.
| Type | [M] Material | Cleaning Method | |||||
| Small Size | Medium Size | Large | Cleaning Method | Cleaning Environment | Packaging Type | Packing Environment | |
| SL-ALDS | SL-ALD | SL-ALDT | A2017P−T351 (Including T3 for T = 5, 6) | Degreasing | General environment | Anti-rust packing | General environment |
| SH-ALDS | SH-ALD | SH-ALDT | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | |
| SHD-ALDS | SHD-ALD | SHD-ALDT | Electrolytic polishing + precision cleaning | ||||
[!] See the details of degreasing, precision cleaning, and electrolytic polishing shown at the bottom of the
specification table.Specification Table

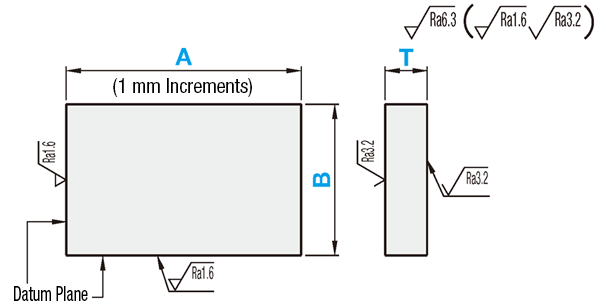

| Part Number | — | A | — | B | — | T |
| SL-ALD | — | 300 | — | 100 | — | 15 |
| Part Number | Finish Method | Size Class | A, B Dimension Tolerance | T Dimension Tolerance | Perpendicularity of Datum Plane | Circumference | |||||||||||
| Up to 100 mm | 101 to 250 | 251 to 1000 | 1001 or more | T5 | T6 | T8 | T10 | T12·15 | T20 | T25 | T30·35 | T40 | (per 100 mm) | Chamfering | |||
| SL-ALDS SH-ALDS SHD-ALDS | Side Milled | Small Size | ±0.2 mm | ±0.25 | ±0.4 | ±1.0 | ±0.35 | ±0.45 | ±0.5 | ±0.6 | ±0.7 | ±0.8 | ±0.9 | ±1.0 | ±1.1 | 0.015 | C0.3 or Less |
| SL-ALD SH-ALD SHD-ALD | Plate Thickness Surfaces Rolled | Medium Size | |||||||||||||||
| SL-ALDT SH-ALDT SHD-ALDT | Large | ||||||||||||||||
Alterations
| Part Number | — | A | — | B | — | T | — | (BC, CCA, etc.) |
| SL-ALD | — | 315 | — | 200 | — | 20 | — | BC176 |
| Alterations | Code | Spec. |
 | BC | Cuts B dimension. |
| BC = 1 mm Increments | ||
| Ordering Code | ||
| BC195 | ||
| [ ! ]SL-ALD·SH-ALD·SHD-ALD 26 ≤ BC ≤ B－1 | ||
| SL-ALDT·SH-ALDT·SHD-ALDT 126 ≤ BC ≤ B－1 | ||
| [ ! ]SL-ALD·SH-ALD·SHD-ALD Applicable to SL-ALDT, SH-ALDT, and SHD-ALDT only | ||

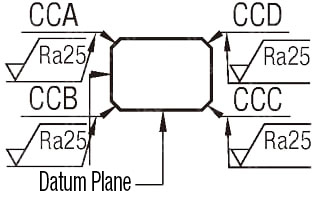

 | CCA | Any corner can be cut. 1 ≤ Corner Cut ≤ 10 1 mm Increments Ordering Code Example: When the corners of A and D are cut by C5 CCA5－CCD5 |
| CCB | ||
| CCC | ||
| CCD | ||
Cleaning Process
* Stainless steel products may be used with alkaline hot pure water. There is no change in cleanliness.
* If the surface treatment is low-temperature black chrome plating, IPA cleaning will be applied.
Working Environment: General environment | ||||||
|---|---|---|---|---|---|---|
 Hydrocarbon cleaning Ro water cleaning Neutral Detergent Cleaning |  |  High-pressure jet washing (Ro water) followed by pure water cleaning | |  Oil-free Compressor Used | |  Anti-rust single packing |
Working Environment: Class 1,000 | Working Environment: Class 10 | |||||||
|---|---|---|---|---|---|---|---|---|
Hydrocarbon cleaning Ro water cleaning Neutral Detergent Cleaning | | High-pressure jet washing (Ro water) followed by pure water (10 MΩ·cm) cleaning | |  Use pure water (13 MΩ·cm) | | Use nitrogen blow | |  Conducted on a clean bench in a Class 10 clean environment |
Working Environment: Class 1,000 | Working Environment: Class 10 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Hydrocarbon cleaning Ro water cleaning Neutral Detergent Cleaning | |  Electrolytic polishing in an electrolytic polishing tank according to the material | | High-pressure jet washing (Ro water) followed by pure water (10 MΩ·cm) cleaning | | Use warm pure water (13 MΩ·cm) | | Use nitrogen blow | | Conducted on a clean bench in a Class 10 clean environment |
Packaging Example| For degreasing: (Part Number: SL-□□)  Depending on some products and dimensions, packaging type may vary. | For precision cleaning or electrolytic polishing + precision cleaning: (Part Number: SH-□□/SHD-□□)  [ ! ] Both the first and second layer packaging are degassed. |
Cleaning Effectiveness / Recommended Environment for UseCleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Use Case and Process |
|---|---|---|---|---|---|
| Degreasing | SL-□□ | Anti-rust packing | Oil removal | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Oil removal Dust removal | Clean environment (Class 10 to 1,000) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process | |||||
| Electrolytic polishing + precision cleaning | SHD-□□ | Degassing double packing | Oil removal Dust removal Outgas reduction | Vacuum environment Clean environment (Class 10 to 1,000) | Pre-semiconductor process |
| Liquid crystal deposition process | |||||
| Pre-OLED process |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| SH-ALD-[100-500/1]-[100,125,150,160,200,250,300]-[5,6,8,10,12,15,20,25,30,35,40] |
| SH-ALDS-[25-100/1]-[25-100/1]-[5,6,8,10,12,15,20,25,30] |
| SH-ALDT-[350-800/1]-[125,150,160,200,250,300,350,400,450,500,600,800]-[5,6,8,10,12,15,20,25,30,35,40] |
| SHD-ALD-[100-500/1]-[100,125,150,160,200,250,300]-[5,6,8,10,12,15,20,25,30,35,40] |
| SHD-ALDS-[25-100/1]-[25-100/1]-[5,6,8,10,12,15,20,25,30] |
| SHD-ALDT-[350-800/1]-[125,150,160,200,250,300,350,400,450,500,600,800]-[5,6,8,10,12,15,20,25,30,35,40] |
| SL-ALD-[100-500/1]-[100,125,150,160,200,250,300]-[5,6,8,10,12,15,20,25,30,35,40] |
| SL-ALDS-[25-100/1]-[25-100/1]-[5,6,8,10,12,15,20,25,30] |
| SL-ALDT-[350-800/1]-[125,150,160,200,250,300,350,400,450,500,600,800]-[5,6,8,10,12,15,20,25,30,35,40] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Thickness T (mm) | Length A (mm) | Width B (mm) |
|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | 7 Day(s) or more | 5 ～ 40 | 100 ～ 500 | 100 ～ 300 | ||
- | 1 Piece(s) | 7 Day(s) or more | 5 ～ 30 | 25 ～ 100 | 25 ～ 100 | ||
- | 1 Piece(s) | 9 Day(s) or more | 5 ～ 40 | 350 ～ 800 | 125 ～ 800 | ||
- | 1 Piece(s) | 7 Day(s) or more | 5 ～ 40 | 100 ～ 500 | 100 ～ 300 | ||
- | 1 Piece(s) | 7 Day(s) or more | 5 ～ 30 | 25 ～ 100 | 25 ～ 100 | ||
- | 1 Piece(s) | 9 Day(s) or more | 5 ～ 40 | 350 ～ 800 | 125 ～ 800 | ||
- | 1 Piece(s) | 7 Day(s) or more | 5 ～ 40 | 100 ～ 500 | 100 ～ 300 | ||
- | 1 Piece(s) | 7 Day(s) or more | 5 ～ 30 | 25 ～ 100 | 25 ～ 100 | ||
- | 1 Piece(s) | 9 Day(s) or more | 5 ～ 40 | 350 ～ 800 | 125 ～ 800 |
Loading...
Basic Information
| Finish Method | Side Milled (4F) | Material | SUS304D | Surface Treatment | N/A |
|---|---|---|---|---|---|
| Select Corner R Processing | N/A | Select Through Hole Processing | N/A | Select Through Hole Processing Type | N/A |
| Plate Thickness Tolerance | It differs depending on the plate thickness (For more information, check the Product page.) | Width Tolerance | It differs depending on the dimension (For more information, check the Product page.) | Length Tolerance | It differs depending on the dimension (For more information, check the Product page.) |
Specification/Dimensions
-
Thickness T(mm)
-
Length A(mm)
-
Width B(mm)
-
type
- SH-ALD
- SH-ALDS
- SH-ALDT
- SHD-ALD
- SHD-ALDS
- SHD-ALDT
- SL-ALD
- SL-ALDS
- SL-ALDT
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 7 Day(s) or Less
- 9 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Additional Products in this Category
- SUS303 A Dimension Configurable Plates
- Dimension Selectable Plates - Aluminum, High Precision-A5052P (Al-Mg Aluminum Alloy, Precision Rolled Products)
- Configurable Plates - ANP79-A7000 (Aℓ-Zn-Mg-Cu Aluminum Alloy)
- [Clean & Pack]Precision Duralumin Cut Plates - A2017P
- BACS thickness board series brass
- BACS Thick Plate Series, Stainless Steel
- BACS Thick Plate Series Mini Metal Plate (Mini) Brass
- BACS Thick Plate Series Mini Metal Plate (Mini) Stainless Steel
