[Clean & Pack]O-Ring - P Series
![[Clean & Pack]O-Ring - P Series](http://pre-my.misumi-ec.com/linked/material/mech/MSM1/PHOTO/110311036169_001.jpg?$product_main$)
- Volume Discount
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.
| Cleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Use Case |
| Degreasing | SL-□□ | Anti-rust packing | Removal of organic stains | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Removal of organic stains Removal of contamination and dusts | Clean environment (Class 10 to 1,000) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process |
(i)Caution
- There is no discoloration or dimensional change due to washing.
Part Number
Configured Part Number is shown.
Back-Up Ring
| Type | [M] Material | Color | Operable Temperature Range | Applications: | Features | Cleaning Method | |||
| Cleaning Method | Cleaning Environment | Packaging Type | Packing Environment | ||||||
| SL-NPBR | Fluororesin | White | Subject to O-ring | For high voltage use | Used when the pressure resistance of O-ring is insufficient. | Degreasing | General environment | Single Packaging | General environment |
| SH-NPBR | Precision cleaning | Class 1,000 | Degassing double packing | Class 10 | |||||
[ ! ] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the
details of degreasing and precision cleaning shown at the bottom of the specification table.Specification Table
| Part Number |
| SL-NPBR15 |
| Part Number | Applicable O-Ring Nominal Number | W | d | D | T | |||||
| Type | No. | |||||||||
| SL-NPBR SH-NPBR (Fluororesin, White) | 15 | P15 | 2.0 | +0.03 －0.05 | 15 | +0.15 0 | 19 | 0 －0.15 | 1.25 | ±0.1 |
| 16 | P16 | 16 | 20 | |||||||
| 18 | P18 | 18 | 22 | |||||||
| 20 | P20 | 20 | 24 | |||||||
| 21 | P21 | 21 | 25 | |||||||
| 22 | P22 | 22 | 26 | |||||||
| 22 A | P22A | 3.0 | 22 | +0.20 0 | 28 | 0 －0.20 | ||||
| 24 | P24 | 24 | 30 | |||||||
| 25 | P25 | 25 | 31 | |||||||
| 26 | P26 | 26 | 32 | |||||||
| 28 | P28 | 28 | 34 | |||||||
| 30 | P30 | 30 | 36 | |||||||
| 32 | P32 | 32 | 38 | |||||||
| 34 | P34 | 34 | 40 | |||||||
| 38 | P38 | 38 | 44 | |||||||
| 40 | P40 | 40 | 46 | |||||||
| 42 | P42 | 42 | 48 | |||||||
| 48 | P48 | 48 | 54 | |||||||
| 50 | P50 | 50 | 56 | |||||||
Cleaning Process· Degreasing (Part Number: SL-□□)
Working Environment: General environment | ||||||
|---|---|---|---|---|---|---|
 IPA Cleaning |  |  Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use clean air blow | |  Single Packing |
Working Environment: General environment | Working Environment: Class 1,000 | Working Environment: Class 10 | ||||||
|---|---|---|---|---|---|---|---|---|
IPA Cleaning | | Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water) | |  Use clean air blow | | Use nitrogen blow | |  Degassing double packing |

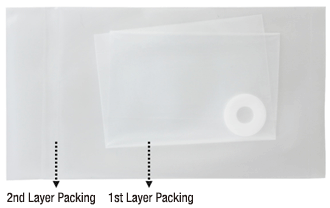

Packaging ExampleDegreasing (Part Number: SL-□□) | Precision Cleaning (Part Number: SH-□□) [ ! ] Both the first and second layer packaging are degassed. |
Cleaning Effectiveness / Recommended Environment for UseCleaning Method | Product Part Number | Packaging Type | Effects Compared to Uncleaned Product | Environment (Standard) | Use Case and Process |
|---|---|---|---|---|---|
| Degreasing | SL-□□ | Anti-rust packing | Removal of organic stains | General environment | Regular assembly process |
| Post battery assembly process | |||||
| Precision cleaning | SH-□□ | Degassing double packing | Removal of organic stains Removal of contamination and dusts | Clean environment (Class 10 to 1,000) | Battery assembly process |
| LCD-related post assembly process | |||||
| In-vehicle camera assembly process |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Inner Dia. do (or d) (mm) | Wire Dia. W (mm) | Properties / applications | O.D. (mm) | Cleaning Method | Applicable O-Ring Nominal Number |
|---|---|---|---|---|---|---|---|---|---|---|
MYR 23.61 | 1 Piece(s) | Available | 6 Day(s) or more | 15 | 2 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 19 | Precision Cleaning | P15 | |
MYR 23.61 | 1 Piece(s) | Available | 6 Day(s) or more | 16 | 2 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 20 | Precision Cleaning | P16 | |
MYR 24.64 | 1 Piece(s) | Available | 6 Day(s) or more | 18 | 2 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 22 | Precision Cleaning | P18 | |
MYR 24.64 | 1 Piece(s) | Available | 6 Day(s) or more | 20 | 2 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 24 | Precision Cleaning | P20 | |
MYR 25.32 | 1 Piece(s) | Available | 6 Day(s) or more | 21 | 2 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 25 | Precision Cleaning | P21 | |
MYR 25.32 | 1 Piece(s) | Available | 6 Day(s) or more | 22 | 2 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 26 | Precision Cleaning | P22 | |
MYR 25.32 | 1 Piece(s) | Available | 6 Day(s) or more | 22 | 3 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 28 | Precision Cleaning | P22A | |
MYR 25.66 | 1 Piece(s) | Available | 6 Day(s) or more | 24 | 3 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 30 | Precision Cleaning | P24 | |
MYR 25.66 | 1 Piece(s) | Available | 6 Day(s) or more | 25 | 3 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 31 | Precision Cleaning | P25 | |
MYR 26.35 | 1 Piece(s) | Available | 6 Day(s) or more | 26 | 3 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 32 | Precision Cleaning | P26 | |
MYR 26.35 | 1 Piece(s) | Available | 6 Day(s) or more | 28 | 3 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 34 | Precision Cleaning | P28 | |
MYR 27.03 | 1 Piece(s) | Available | 6 Day(s) or more | 30 | 3 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 36 | Precision Cleaning | P30 | |
MYR 27.03 | 1 Piece(s) | Available | 6 Day(s) or more | 32 | 3 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 38 | Precision Cleaning | P32 | |
MYR 27.37 | 1 Piece(s) | Available | 6 Day(s) or more | 34 | 3 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 40 | Precision Cleaning | P34 | |
MYR 27.72 | 1 Piece(s) | Available | 6 Day(s) or more | 38 | 3 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 44 | Precision Cleaning | P38 | |
MYR 28.40 | 1 Piece(s) | Available | 6 Day(s) or more | 40 | 3 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 46 | Precision Cleaning | P40 | |
MYR 29.08 | 1 Piece(s) | Available | 6 Day(s) or more | 42 | 3 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 48 | Precision Cleaning | P42 | |
MYR 29.43 | 1 Piece(s) | Available | 6 Day(s) or more | 48 | 3 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 54 | Precision Cleaning | P48 | |
MYR 29.77 | 1 Piece(s) | Available | 6 Day(s) or more | 50 | 3 | Clean washing / Low Dust Generation / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 56 | Precision Cleaning | P50 | |
MYR 19.16 | 1 Piece(s) | Available | 6 Day(s) or more | 15 | 2 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 19 | Degreasing | P15 | |
MYR 19.16 | 1 Piece(s) | Available | 6 Day(s) or more | 16 | 2 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 20 | Degreasing | P16 | |
MYR 20.19 | 1 Piece(s) | Available | 6 Day(s) or more | 18 | 2 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 22 | Degreasing | P18 | |
MYR 20.19 | 1 Piece(s) | Available | 6 Day(s) or more | 20 | 2 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 24 | Degreasing | P20 | |
MYR 20.87 | 1 Piece(s) | Available | 6 Day(s) or more | 21 | 2 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 25 | Degreasing | P21 | |
MYR 20.87 | 1 Piece(s) | Available | 6 Day(s) or more | 22 | 2 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 26 | Degreasing | P22 | |
MYR 20.87 | 1 Piece(s) | Available | 6 Day(s) or more | 22 | 3 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 28 | Degreasing | P22A | |
MYR 21.21 | 1 Piece(s) | Available | 6 Day(s) or more | 24 | 3 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 30 | Degreasing | P24 | |
MYR 21.21 | 1 Piece(s) | Available | 6 Day(s) or more | 25 | 3 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 31 | Degreasing | P25 | |
MYR 21.90 | 1 Piece(s) | Available | 6 Day(s) or more | 26 | 3 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 32 | Degreasing | P26 | |
MYR 21.90 | 1 Piece(s) | Available | 6 Day(s) or more | 28 | 3 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 34 | Degreasing | P28 | |
MYR 22.58 | 1 Piece(s) | Available | 6 Day(s) or more | 30 | 3 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 36 | Degreasing | P30 | |
MYR 22.58 | 1 Piece(s) | Available | 6 Day(s) or more | 32 | 3 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 38 | Degreasing | P32 | |
MYR 22.93 | 1 Piece(s) | Available | 6 Day(s) or more | 34 | 3 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 40 | Degreasing | P34 | |
MYR 23.27 | 1 Piece(s) | Available | 6 Day(s) or more | 38 | 3 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 44 | Degreasing | P38 | |
MYR 23.95 | 1 Piece(s) | Available | 6 Day(s) or more | 40 | 3 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 46 | Degreasing | P40 | |
MYR 24.64 | 1 Piece(s) | Available | 6 Day(s) or more | 42 | 3 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 48 | Degreasing | P42 | |
MYR 24.98 | 1 Piece(s) | Available | 6 Day(s) or more | 48 | 3 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 54 | Degreasing | P48 | |
MYR 25.32 | 1 Piece(s) | Available | 6 Day(s) or more | 50 | 3 | Clean washing / Vacuum / Corrosion resistance / chemical resistance / Heat-Resistance | 56 | Degreasing | P50 |
Loading...
Basic Information
| Type | Back-Up Ring | Environmentally Friendly | RoHS compliant (10 substances) | Standard | P Series |
|---|---|---|---|---|---|
| Material | Fluoropolymer | Hardness | — | Color | White |
Specification/Dimensions
-
Inner Dia. do (or d)(mm)
-
Wire Dia. W(mm)
-
Properties / applications
- Clean washing
- Low Dust Generation
- Vacuum
- Corrosion resistance / chemical resistance
- Heat-Resistance
-
Cleaning Method
- Degreasing
- Precision Cleaning
-
Applicable O-Ring Nominal Number
-
type
- SH-NPBR
- SL-NPBR
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 6 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
