[Clean & Pack]Locating Pin - Resin, Large Head, Tip Shape Selectable, Press Fit

MISUMI

There is no discoloration or dimensional change due to cleaning.

Part Number

Configured Part Number is shown.

Drawing/Specifications
3D Preview
Part Numbers
More Information

● Press Fit

* When D = 1, chamfering at the D dimension part is 0.1. When D < 3
a = 0.5
d = D - 0.1 When D ≥ 3
a = 1.0
d = D - 0.2

[ ! ] Relief dimensions are reference values.
[ ! ] The outer diameter tolerance is the result of measurement at room temperature.

Tip Shape Selectable
Tapered		Sphere
Flat

Type				Fixed Part	Head Shape	[M] Material	Operating Ambient Temperature	Cleaning Method
P Configurable		P, L, B Configurable
Round	Diamond	Round	Diamond					Cleaning Method	Cleaning Environment	Packaging Type	Packing Environment
SL-JKP	SL-JKPD	SL-FKP	SL-FKPD	Z (Press Fit)	A (Tapered) FA (Flat) Q (Sphere)	PEEK (Natural Ivory)	−50 to 250°C	Degreasing	General environment	Single packing	General environment
SH-JKP	SH-JKPD	SH-FKP	SH-FKPD					Precision cleaning	Class 1,000	Degassing double packing	Class 10

[NG] The round type of P Configurable type cannot select A (Tapered)
[!] Products are packed by order quantity. Ex. If the order is for 20 pieces, they are packed in one package (incl. 20 pieces).
[ ! ] See the details of degreasing and precision cleaning shown at the bottom of the

specification table.

Specification Table

Part Number				—	P

Type	Fixed Part	Head Shape	D
SL-JKP	Z	Q	8	—	10.00

■P Configurable

Part Number						P	L	B	C	m	ℓ1	(W)

Type		Fixed Part	Head Shape	D	D Dimension Tolerance	0.01 mm Increments
					m6
(Round)	(Diamond)	Z (Press Fit)	A (Tapered)	1	+0.008	1.50 to 2.50	3	3	0.3	0.5	0	—
SL-JKP	SL-JKPD		FA (Flat)		+0.002
SH-JKP	SH-JKPD		Q (Sphere)	2	+0.008	2.50 to 4.00	4	3	0.5	1	0	—
	^* Applicable to D ≥ 3				+0.002
				3	+0.008	3.50 (4.00)Up to 6.00	5	5	0.5	2	1	1.5
					+0.002
				4	+0.012	4.50 to 7.00	5	6	1	3	1	1.8
					+0.004
				5	+0.012	5.50 to 8.00	10	6	1	3	1	2.2
					+0.004
				6	+0.012	6.50 to 10.00	10	8	1	3	1	3
					+0.004
				8	+0.015	9.00 to 13.00	15	8	1.5	4	1	3.5
					+0.006
				10	+0.015	11.00 to 15.00	15	10	2	4	1	4
					+0.006

[ ! ] P dimension in ( ) is applicable to Diamond Shape

■P, L, B Configurable

Part Number

ℓ1

(W)

1 mm Increments

0.1 mm Increments

Type

Fixed Part

Head Shape

D Dimension Tolerance

0.01 mm Increments

(Round)

(Diamond)

Z (Press Fit)

A (Tapered)

+0.008

1.50 to 2.50

2 to 3

2.0 to 5.0

0.3

0.5

—

SL-FKP

SL-FKPD

FA (Flat)

+0.002

SH-FKP

SH-FKPD

Q (Sphere)

+0.008

2.50 to 4.00

2 to 6

2.0 to 10.0

0.5

—

^* Applicable to D ≥ 3

+0.002

+0.008

3.50 (4.00)Up to 6.00

3 to 6

2.0 to 10.0

0.5

1.5

+0.002

+0.012

4.50 to 7.00

4 to 8

2.0 to 10.0

1.8

+0.004

+0.012

5.50 to 8.00

5 to 10

2.0 to 10.0

2.2

+0.004

+0.012

6.50 to 10.00

6 to 12

2.0 to 12.0

+0.004

+0.015

9.00 to 13.00

8 to 16

2.0 (3.0)Up to 15.0

1.5

3.5

+0.006

+0.015

11.00 to 15.00

10 to 20

3.0 (4.0)Up to 20.0 (15.0)

+0.006

[ ! ] P dimension in ( ) is applicable to Diamond Shape
[ ! ] B dimension in () is applicable to Flat and Diamond Shape

Cleaning Process
· Degreasing (Part Number: SL-□□)

Working Environment: General environment
IPA Cleaning		Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water)		Use clean air blow		Single Packing

· Precision cleaning (Part Number: SH-□□)

Working Environment: General environment				Working Environment: Class 1,000				Working Environment: Class 10
IPA Cleaning		Wash with pure water (10 MΩ·cm) after high-pressure water jet cleaning (Ro water)		Use clean air blow		Use nitrogen blow		Degassing double packing

Packaging Example

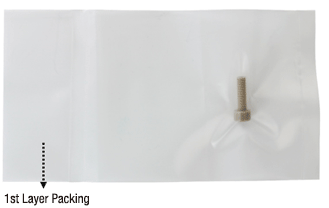

Degreasing (Part Number: SL-□□)

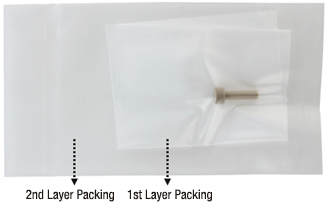

Precision Cleaning (Part Number: SH-□□)

[ ! ] Both the first and second layer packaging are degassed.

Cleaning Effectiveness / Recommended Environment for Use

Cleaning Method	Product Part Number	Packaging Type	Effects Compared to Uncleaned Product	Environment (Standard)	Use Case and Process
Degreasing	SL-□□	Anti-rust packing	Removal of organic stains	General environment	Regular assembly process
Degreasing	SL-□□	Anti-rust packing	Removal of organic stains	General environment	Post battery assembly process
Precision cleaning	SH-□□	Degassing double packing	Removal of organic stains Removal of contamination and dusts	Clean environment (Class 10 to 1,000)	Battery assembly process
					LCD-related post assembly process
					In-vehicle camera assembly process

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

*In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.

CAD Download

: 30; 45; 60

Part Number
SH-FKPZFA1-P[1.5-2.5/0.01]-L[2-3/1]-B[2-5/0.1]
SH-FKPZFA2-P[2.5-4/0.01]-L[2-6/1]-B[2-10/0.1]
SH-FKPZFA3-P[3.5-6/0.01]-L[3-6/1]-B[2-10/0.1]
SH-FKPZFA4-P[4.5-7/0.01]-L[4-8/1]-B[2-10/0.1]
SH-FKPZFA5-P[5.5-8/0.01]-L[5-10/1]-B[2-10/0.1]
SH-FKPZFA6-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]
SH-FKPZFA8-P[9-13/0.01]-L[8-16/1]-B[3-15/0.1]
SH-FKPZFA10-P[11-15/0.01]-L[10-20/1]-B[4-15/0.1]
SH-JKPZFA1-[1.5-2.5/0.01]
SH-JKPZFA2-[2.5-4/0.01]
SH-JKPZFA3-[3.5-6/0.01]
SH-JKPZFA4-[4.5-7/0.01]
SH-JKPZFA5-[5.5-8/0.01]
SH-JKPZFA6-[6.5-10/0.01]
SH-JKPZFA8-[9-13/0.01]
SH-JKPZFA10-[11-15/0.01]
SL-FKPZFA1-P[1.5-2.5/0.01]-L[2-3/1]-B[2-5/0.1]
SL-FKPZFA2-P[2.5-4/0.01]-L[2-6/1]-B[2-10/0.1]
SL-FKPZFA3-P[3.5-6/0.01]-L[3-6/1]-B[2-10/0.1]
SL-FKPZFA4-P[4.5-7/0.01]-L[4-8/1]-B[2-10/0.1]
SL-FKPZFA5-P[5.5-8/0.01]-L[5-10/1]-B[2-10/0.1]
SL-FKPZFA6-P[6.5-10/0.01]-L[6-12/1]-B[2-12/0.1]
SL-FKPZFA8-P[9-13/0.01]-L[8-16/1]-B[3-15/0.1]
SL-FKPZFA10-P[11-15/0.01]-L[10-20/1]-B[4-15/0.1]
SL-JKPZFA1-[1.5-2.5/0.01]
SL-JKPZFA2-[2.5-4/0.01]
SL-JKPZFA3-[3.5-6/0.01]
SL-JKPZFA4-[4.5-7/0.01]
SL-JKPZFA5-[5.5-8/0.01]
SL-JKPZFA6-[6.5-10/0.01]
SL-JKPZFA8-[9-13/0.01]
SL-JKPZFA10-[11-15/0.01]

Standard Unit Price	Minimum order quantity	Days to Ship	Insertion Guide Tip Type	Locating Side Outer Dia. P (Ø) (mm)	Mounting Side Outer Dia. D (mm)	Cleaning Method	Mounting Section Length L (mm)	Positioning Part Length B (mm)
-	1 Piece(s)	9 Day(s) or more	Flat	1.5 ～ 2.5	1	Precision Cleaning	2 ～ 3	2 ～ 5
-	1 Piece(s)	9 Day(s) or more	Flat	2.5 ～ 4	2	Precision Cleaning	2 ～ 6	2 ～ 10
-	1 Piece(s)	9 Day(s) or more	Flat	3.5 ～ 6	3	Precision Cleaning	3 ～ 6	2 ～ 10
-	1 Piece(s)	9 Day(s) or more	Flat	4.5 ～ 7	4	Precision Cleaning	4 ～ 8	2 ～ 10
-	1 Piece(s)	9 Day(s) or more	Flat	5.5 ～ 8	5	Precision Cleaning	5 ～ 10	2 ～ 10
-	1 Piece(s)	9 Day(s) or more	Flat	6.5 ～ 10	6	Precision Cleaning	6 ～ 12	2 ～ 12
-	1 Piece(s)	9 Day(s) or more	Flat	9 ～ 13	8	Precision Cleaning	8 ～ 16	3 ～ 15
-	1 Piece(s)	9 Day(s) or more	Flat	11 ～ 15	10	Precision Cleaning	10 ～ 20	4 ～ 15
-	1 Piece(s)	9 Day(s) or more	Flat	1.5 ～ 2.5	1	Precision Cleaning	3	3
-	1 Piece(s)	9 Day(s) or more	Flat	2.5 ～ 4	2	Precision Cleaning	4	3
-	1 Piece(s)	9 Day(s) or more	Flat	3.5 ～ 6	3	Precision Cleaning	5	5
-	1 Piece(s)	9 Day(s) or more	Flat	4.5 ～ 7	4	Precision Cleaning	5	6
-	1 Piece(s)	9 Day(s) or more	Flat	5.5 ～ 8	5	Precision Cleaning	10	6
-	1 Piece(s)	9 Day(s) or more	Flat	6.5 ～ 10	6	Precision Cleaning	10	8
-	1 Piece(s)	9 Day(s) or more	Flat	9 ～ 13	8	Precision Cleaning	15	8
-	1 Piece(s)	9 Day(s) or more	Flat	11 ～ 15	10	Precision Cleaning	15	10
-	1 Piece(s)	9 Day(s) or more	Flat	1.5 ～ 2.5	1	Degreasing	2 ～ 3	2 ～ 5
-	1 Piece(s)	9 Day(s) or more	Flat	2.5 ～ 4	2	Degreasing	2 ～ 6	2 ～ 10
-	1 Piece(s)	9 Day(s) or more	Flat	3.5 ～ 6	3	Degreasing	3 ～ 6	2 ～ 10
-	1 Piece(s)	9 Day(s) or more	Flat	4.5 ～ 7	4	Degreasing	4 ～ 8	2 ～ 10
-	1 Piece(s)	9 Day(s) or more	Flat	5.5 ～ 8	5	Degreasing	5 ～ 10	2 ～ 10
-	1 Piece(s)	9 Day(s) or more	Flat	6.5 ～ 10	6	Degreasing	6 ～ 12	2 ～ 12
-	1 Piece(s)	9 Day(s) or more	Flat	9 ～ 13	8	Degreasing	8 ～ 16	3 ～ 15
-	1 Piece(s)	9 Day(s) or more	Flat	11 ～ 15	10	Degreasing	10 ～ 20	4 ～ 15
-	1 Piece(s)	9 Day(s) or more	Flat	1.5 ～ 2.5	1	Degreasing	3	3
-	1 Piece(s)	9 Day(s) or more	Flat	2.5 ～ 4	2	Degreasing	4	3
-	1 Piece(s)	9 Day(s) or more	Flat	3.5 ～ 6	3	Degreasing	5	5
-	1 Piece(s)	9 Day(s) or more	Flat	4.5 ～ 7	4	Degreasing	5	6
-	1 Piece(s)	9 Day(s) or more	Flat	5.5 ～ 8	5	Degreasing	10	6
-	1 Piece(s)	9 Day(s) or more	Flat	6.5 ～ 10	6	Degreasing	10	8
-	1 Piece(s)	9 Day(s) or more	Flat	9 ～ 13	8	Degreasing	15	8
-	1 Piece(s)	9 Day(s) or more	Flat	11 ～ 15	10	Degreasing	15	10

Specifications/Overview

[ ! ] The outer diameter tolerance is the result of measurement at room temperature.

Basic Information

Basic Shape	Large Head	Environmentally friendly	RoHS Compliant (10 Substances)	Characteristics/Applications	Clean Washed
Insertion Guide Tip Shape	Round	Insertion Guide Specifications	Not Provided	Mounting Side Shape	Straight (Press-Fit)
Surface Treatment	Not Provided	Heat Treatment	Not Provided	Material	PEEK (Natural Ivory)
Locating Side O.D. Tolerance	0/-0.05	Mounting Side Tolerance	m6	Material Certificate	Available
Material Certificate: Materials	PEEK (Natural Ivory)

Configure

32 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Locating Side Outer Dia. P (Ø)(mm)
[1.5-15/0.01mm Unit(s)]
Clear
Mounting Side Outer Dia. D(mm)
1

2

3

4

5

6

8

10
Clear
Cleaning Method
- Degreasing
- Precision Cleaning
Clear
Mounting Section Length L(mm)
3

4

5

10

15
[2-20/1mm Unit(s)]
Clear
Positioning Part Length B(mm)
3

5

6

8

10
[2-15/0.1mm Unit(s)]
Clear
type
- SH-FKPZA
- SH-FKPZFA
- SH-FKPZQ
- SH-JKPZFA
- SH-JKPZQ
- SL-FKPZA
- SL-FKPZFA
- SL-FKPZQ
- SL-JKPZFA
- SL-JKPZQ
Clear
Insertion Guide Tip Type
- Tapered
- Spherical
- Flat
Clear
CAD
- 2D
- 3D
Clear

Days to Ship

All

9 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
