Handle Lock for NF/NV-FA
Part Number
Configured Part Number is shown.
Handle Lock Characteristics

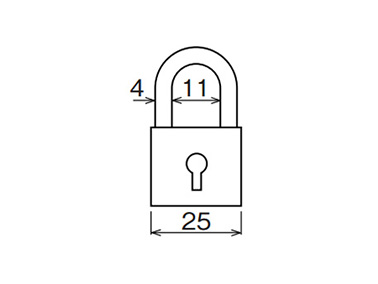

Padlock dimensions

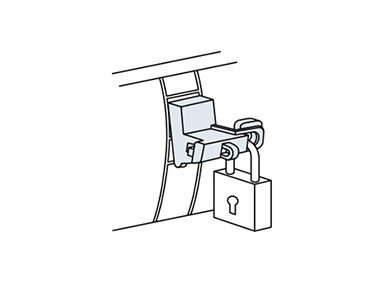

Mounted image
This is equipment for locking a breaker on or off. Even while locked, the breaker will trip when overcurrent occurs.
Handle Lock Applicable Models
| Type Name | Compatible Models | |
|---|---|---|
| NFB | NV | |
| HL-05FH | NF50-FHU, NF100-FHU | NV50-FHU, NV100-FHU |
| HL-05FA | NF30-FA/FAU, NF50-FA/FAU | NV30-FA/FAU, NV50-FA/FAU |
| Part Number |
|---|
| HL-05FA |
| HL-05FH |
| HL-4SW |
| HLF-05SV |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Included equipment | Applicable model (NFB) | Applicable model (NV) | Dimension length (mm) | Dimension width (mm) | Dimension thickness (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
- | 10 Piece(s) | Quote | - | Grip lock equipment | NF30-FA/FAU / NF50-FA/FAU | NV30-FA/FAU / NV50-FA/FAU | - | - | - | ||
- | 10 Piece(s) | Quote | 6 | Grip lock equipment | MB30-CS / MB30-KC / NF30-CS / NF30-KC / MB50-KC / NF50-FHU / NF50-KC / NF100-FHU / NF100-KC | MN30-CS / MN30-KC / NV30-CS / NV30-KC / MN50-CSA / MN50-KC / NV50-CSA / NV50-FHU / NV50-KC / NV100-FHU / NV100-KC | - | - | - | ||
- | 1 Piece(s) | Quote | - | - | NF400-SW/SEW/HEW/REW/UEW | NV400-SW/SEW/HEW/REW | 40 | 22 | 5.5 | ||
- | 10 Piece(s) | Quote | - | - | NF32-SV, NF63-CV/SV/HV | NV32-SV, NV63-CV/SV/HV | 25 | 11 | 4 |
Loading...
Basic Information
| Division | Outer Accessory Option | Type | Locking Cover / Locking Device / Interlock |
|---|
Specification/Dimensions
-
Included equipment
- Grip lock equipment
-
Applicable model (NFB)
-
Applicable model (NV)
- MN30-CS
- MN30-KC
- NV30-CS
- NV30-FA/FAU
- NV30-KC
- NV32-SV, NV63-CV/SV/HV
- NV50-FA/FAU
- MN50-CSA
- MN50-KC
- NV50-CSA
- NV50-FHU
- NV50-KC
- NV100-FHU
- NV100-KC
- NV400-SW/SEW/HEW/REW
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
