Operation Handle for less than 250 frames
Adjustment unit for operation handles for Mitsubishi breakers.
[Features]
・ By mounting the adjustment unit on the fixed operation part, the height from the circuit breaker mounting surface to the board door can be adjusted
[Applications]
・ For V-shaped operation handle (250 A frame or less)
Part Number
Configured Part Number is shown.
V-AD3S
Operation Handle For No Fuse Breaker And Earth Leakage Breaker: Adjustment Unit Features

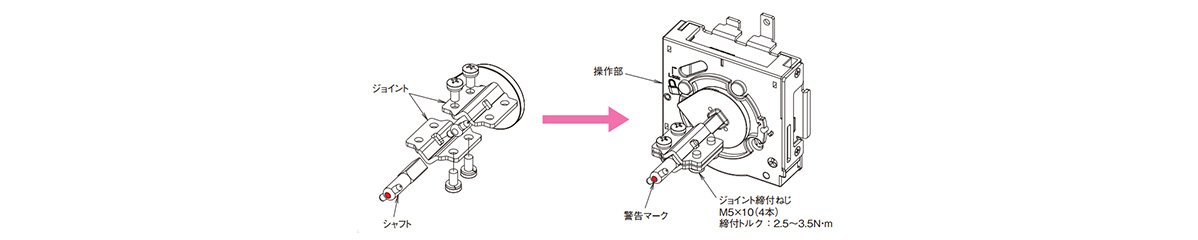

Adjustment Unit Usage
The height from the breaker installation surface to the panel door can be adjusted by equipping the adjustment unit V-AD3S to the V-type handle operation portion. Cut the adjustment unit shaft to match the height.

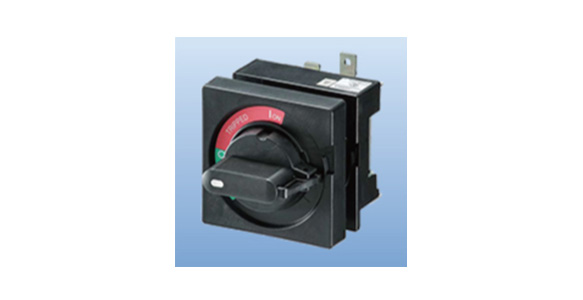

V Type Handle (Door Mount Type)
V Type Handle
- Type for mounting a handle on the panel door, and for mounting an operation portion on the breaker.
- Equipped with an operation lock mechanism that enables using a padlock to lock the handle in the ON or OFF position.
- The panel depth can be adjusted using an extension shaft.
- Protection grade (IEC60529): IP65
| Part Number |
|---|
| V-AD3S |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
- | 1 Piece(s) | Quote |
Loading...
Basic Information
| Operation grip type(Type) | Door mount (V) | Note | Cannot be used for V-03SV and 2-pole external shape breakers |
|---|
Please check the type/dimensions/specifications of the part V-AD3S in the Operation Handle for less than 250 frames series.
Specification/Dimensions
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
