PLC MELSEC-F FX3UC Series Sequencer CPU

MITSUBISHI

A 3rd generation micro sequencer that is compact, with expansion of up to 256 points possible by expanding the input/output.
[Features]
· Achieves a maximum input/output control function of up to 384 points, including remote input/output.
· The connector input/output system conserves wiring.
· Greatly expanded built-in functions such as the highest standard of high-speed processing and positioning in the industry.
· FX3UC-32MT-LT and FX3UC-32MT-LT-2 have the CC-Link/LT Master Function built in.
· The various functions can be connected to an expanded board.
[Applications]
· Convenient for small-scale sequencer controls.

Part Number

Configured Part Number is shown.

Product Specifications
Part Numbers
Catalog

Product Features

MELSEC-F FX3UC Series sequencer main body: related image

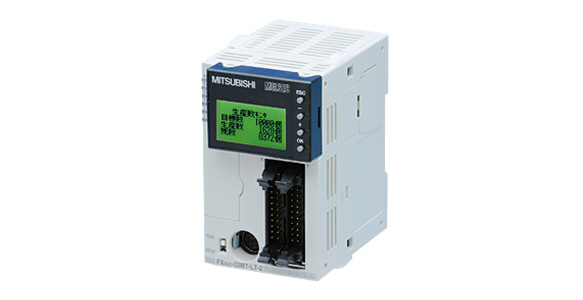

FX3UC Series sequencer main body external appearance

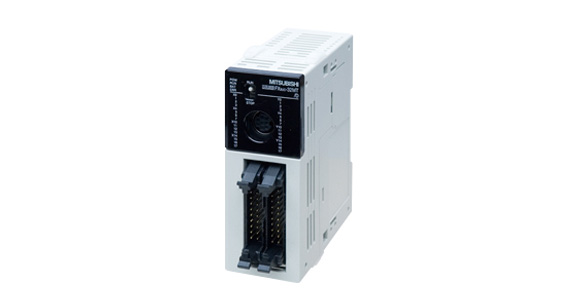

FX3UC Series sequencer main body external appearance 2

Control scale: 32 to 256 points (384 points for CC-Link, AnyWire remote I/O configuration)
Base unit: 16/32/64/96 point

Lineup

FX3UC-16MR/D-T

DC power supply / DC input type
Input: 8 points 24 V DC sink
Output: 8 points relay

FX3UC-16MT / D

DC power supply / DC input type
Input: 8 points 24 V DC sink
Output: 8 points transistor sink

FX3UC-16MT/DSS

DC power supply / DC input type
Input: 8 points 24 V DC sink/source
Output: 8 points transistor source

FX3UC-32MT/D

DC power supply / DC input type
Input: 16 points 24 V DC sink
Output: 16 points transistor sink

FX3UC-32MT/DSS

DC power supply / DC input type
Input: 16 points 24 V DC sink/source
Output: 16 points transistor source

FX3UC-64MT/D

DC power supply / DC input type
Input: 32 points 24 V DC sink
Output: 32 points transistor sink

FX3UC-64MT/DSS

DC power supply / DC input type
Input: 32 points 24 V DC sink/source
Output: 32 points transistor source

FX3UC-96MT/D

DC power supply / DC input type
Input: 48 points 24 V DC sink
Output: 48 points transistor sink

FX3UC-96MT/DSS

DC power supply / DC input type
Input: 48 points 24 V DC sink/source
Output: 48 points transistor source

: 30; 45; 60

Part Number
FX3UC-16MR/D-T
FX3UC-16MR/DS-T
FX3UC-16MT/D
FX3UC-16MT/DSS
FX3UC-32MT/D
FX3UC-32MT/DSS
FX3UC-32MT-LT
FX3UC-32MT-LT-2
FX3UC-64MT/D
FX3UC-64MT/DSS
FX3UC-96MT/D
FX3UC-96MT/DSS

Standard Unit Price	Minimum order quantity	Days to Ship	RoHS	Type	Number of Inputs/Outputs (Point)	Number Of Inputs (Point)	Number of Outputs (Point)	Input specifications	Output Specification	Program size (k step)	RS232	USB	Ethernet	Computer Link	CC-Link	EFI	CC-Link/LT Master Function	AC Power Supply/DC Power Supply	CE	UL	Power Consumption (W)	UL, CUL Standards	KC Standard	Note
MYR 1,658.45	1 Piece(s)	91 Day(s)	-	Standalone	16	8	8	24 VDC Sink	Relay	64	×	×	○	○	○	×	×	DC24V	○	○	6	-	-	-
MYR 1,658.45	1 Piece(s)	91 Day(s)	-	-	16	8	8	DC24V sink/source	Relay	-	-	-	-	-	-	-	-	-	-	○	-	○	○	DC power supply DC input type
MYR 1,658.45	1 Piece(s)	91 Day(s)	6	Standalone	16	8	8	24 VDC Sink	Transistor (sync)	64	×	×	○	○	○	×	×	DC24V	○	○	6	-	-	-
MYR 1,658.45	1 Piece(s)	91 Day(s)	6	Standalone	16	8	8	24 VDC Sink/Source	Transistor (source)	64	×	×	○	○	○	×	×	DC24V	○	○	6	-	-	-
MYR 2,160.67	1 Piece(s)	91 Day(s)	-	Standalone	32	16	16	24 VDC Sink	Transistor (sync)	64	×	×	○	○	○	×	×	DC24V	○	○	8	-	-	-
MYR 2,160.67	1 Piece(s)	91 Day(s)	-	Standalone	32	16	16	24 VDC Sink/Source	Transistor (source)	64	×	×	○	○	○	×	×	DC24V	○	○	8	-	-	-
-	1 Piece(s)	Quote	6	Standalone	32	16	16	24 VDC Sink	Transistor (sync)	64	×	×	○	○	○	×	○	DC24V	○	○	7	-	-	-
MYR 3,125.58	1 Piece(s)	91 Day(s)	6	Standalone	32	16	16	24 VDC Sink	Transistor (sync)	64	×	×	○	○	○	×	○	DC24V	×	×	9	-	-	-
MYR 3,398.73	1 Piece(s)	91 Day(s)	6	Standalone	64	32	32	24 VDC Sink	Transistor (sync)	64	×	×	○	○	○	×	×	DC24V	○	○	11	-	-	-
MYR 3,398.73	1 Piece(s)	91 Day(s)	-	Standalone	64	32	32	24 VDC Sink/Source	Transistor (source)	64	×	×	○	○	○	×	×	DC24V	○	○	11	-	-	-
MYR 4,432.55	1 Piece(s)	91 Day(s)	6	Standalone	96	48	48	24 VDC Sink	Transistor (sync)	64	×	×	○	○	○	×	×	DC24V	○	○	14	-	-	-
MYR 4,432.55	1 Piece(s)	91 Day(s)	-	Standalone	96	48	48	24 VDC Sink/Source	Transistor (source)	64	×	×	○	○	○	×	×	DC24V	○	○	14	-	-	-

Product TOP

Configure

12 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

Specification/Dimensions

Type
- Standalone
Clear
Number of Inputs/Outputs(Point)
16

32

64

96
Clear
Number Of Inputs(Point)
8

16

32

48
Clear
Number of Outputs(Point)
8

16

32

48
Clear
Input specifications
- 24 VDC Sink
- 24 VDC Sink/Source
- DC24V sink/source
Clear
Output Specification
- Relay
- Transistor (source)
- Transistor (sync)
Clear
Program size(k step)
- 64
Clear
RS232
- ×
Clear
USB
- ×
Clear
Ethernet
- ○
Clear
Computer Link
- ○
Clear
CC-Link
- ○
Clear
EFI
- ×
Clear
CC-Link/LT Master Function
- ×
- ○
Clear
AC Power Supply/DC Power Supply
- DC24V
Clear
CE
- ×
- ○
Clear
UL
- ×
- ○
Clear
Power Consumption(W)
6

7

8

9

11

14
Clear
UL, CUL Standards
- ○
Clear
KC Standard
- ○
Clear

Days to Ship

All

91 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
