MELSEC-Q Input Unit (DC Positive Common)
An input unit (DC plus common) for the versatile MELSEC-Q series
Part Number
Configured Part Number is shown.
Mitsubishi High-Precision Sequencer, MELSEC-Q Series
Input/Interrupt Unit
| Number of Points | DC Input | |
|---|---|---|
| 5 V DC | 24 V DC | |
| Positive Common | Positive Common | |
| 8 Points | - | - |
| 16 Points | QX70H | QX40 QX40-TS QX40-S1 QX40H QI60 |
| 32 Points | - | QX41 QX41-S1 QX41-S2 |
| 64 Points | - | QX42 QX42-S1 |
Features

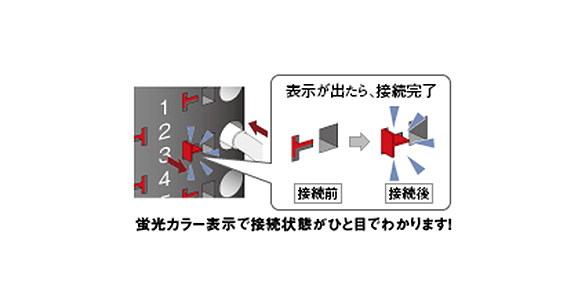

Fluorescent color displays allow connection status to be identified at a glance.
- Allows visual checking of connection status. Increased efficiency in wiring and maintenance work through adoption of a spring clamp terminal block.
- Provides safe connection with increased resistance to vibration.
- Screws are not used, eliminating the need for maintenance previously required.
| Part Number |
|---|
| QX40 |
| QX40-S1 |
| QX40-TS |
| QX40H |
| QX41 |
| QX41-S1 |
| QX41-S2 |
| QX42 |
| QX42-S1 |
| QX70H |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Number Of Inputs | Rated Input Voltage (V) | Features | Number Of Inputs (Point) | Rated input current (mA) | Input answer time | Terminal shape | Number of occupied input/outputs (Point) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 715.96 | 1 Piece(s) | Quote | 6 | 16 | DC24 | 16-point 1-common | 16 | 4 | 1/5/10/20/70 | 18-point terminal block | 16 | ||
MYR 754.67 | 1 Piece(s) | Quote | 6 | 16 | DC24 | 16-point 1-common | 16 | 6 | 0.1/0.2/0.4/0.6/1 | 18-point terminal block | 16 | ||
MYR 823.56 | 1 Piece(s) | Quote | 6 | 16 | DC24 | 16-point 1-common | 16 | 4 | 1/5/10/20/70 | Spring Clamp Terminal Bloc with 18 Point Display Function | 16 | ||
MYR 969.25 | 1 Piece(s) | Quote | 6 | 16 | DC24 | 8-point 1-common | 16 | 6 | 0/0.1/0.2/0.4/0.6/1 | 18-point terminal block | 16 | ||
MYR 1,060.55 | 1 Piece(s) | 20 Day(s) | - | 32 | DC24 | 32-point 1-common | 32 | 4 | 1/5/10/20/70 | 40-pin connector | 32 | ||
MYR 1,214.73 | 1 Piece(s) | Quote | - | 32 | DC24 | 32-point 1-common | 32 | 4 | 0.1/0.2/0.4/0.6/1 | 40-pin connector | 32 | ||
MYR 1,214.73 | 1 Piece(s) | Quote | - | 32 | DC24 | 32-point 1-common | 32 | 6 | 1/5/10/20/70 | 40-pin connector | 32 | ||
MYR 1,921.16 | 1 Piece(s) | 20 Day(s) | 6 | 64 | DC24 | 32-point 1-common | 64 | 4 | 1/5/10/20/70 | 40-Pin Connector × 2 | 64 | ||
MYR 1,921.16 | 1 Piece(s) | Quote | 6 | 64 | DC24 | 32-point 1-common | 64 | 4 | 0.1/0.2/0.4/0.6/1 | 40-Pin Connector × 2 | 64 | ||
MYR 969.25 | 1 Piece(s) | Quote | 6 | 16 | DC5 | 8-point 1-common | 16 | 6 | 0/0.1/0.2/0.4/0.6/1 | 18-point terminal block | 16 |
Loading...
Basic Information
| Representative Standard | CE / UL |
|---|
Specification/Dimensions
-
Number Of Inputs
-
Rated Input Voltage(V)
-
Features
- 8-point 1-common
- 16-point 1-common
- 32-point 1-common
-
Number Of Inputs(Point)
- 16
- 32
- 64
-
Rated input current(mA)
- 4
- 6
-
Input answer time
- 0/0.1/0.2/0.4/0.6/1
- 0.1/0.2/0.4/0.6/1
- 1/5/10/20/70
-
Terminal shape
- 18-point terminal block
- Spring Clamp Terminal Bloc with 18 Point Display Function
- 40-pin connector
- 40-Pin Connector × 2
-
Number of occupied input/outputs(Point)
- 16
- 32
- 64
Days to Ship
-
- All
- 20 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
