MELSEC-Q Output Unit

MELSEC-Q Output Unit

MITSUBISHI

MITSUBISHI

A Mitsubishi high-precision sequencer that is strong against vibrations and can be connected safely.
[Features]
· Since it doesn't use screws, it doesn't need to undergo maintenance like conventional products.
[Applications]
· Convenient for bit signal output, such as output to an external ON/OFF signal.

PDF

Part Number

Configured Part Number is shown.

MELSEC-Q Series Output Unit

Features

MELSEC-Q Output Unit: related image

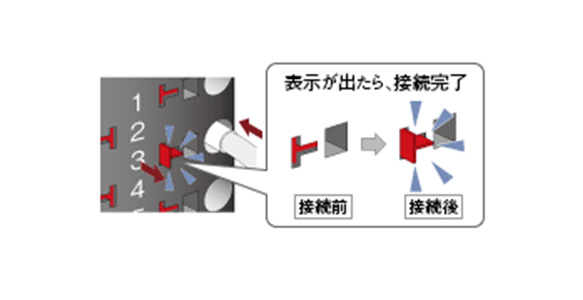

Fluorescent color displays that provide at-a-glance comprehension of connection status.

  • Allows visual checking of connection status. Additionally, a spring clamp terminal block provides increased efficiency in wiring and maintenance work.
  • This improves resistance against vibration and facilitates safe connection.
  • Since it doesn't use screws, it doesn't need to undergo maintenance like conventional products.

Output Unit

Number Of PointsContact OutputTriac OutputTransistor Output
24 V DC,
240 V AC		100 to 240 V AC5 to 12 V DC5 to 24 V DC12 to 24 V DC
SinkSinkSink/SourceSinkSource
7 Points───────
8 pointsQY18A───QY68A──
16 pointsQY10
QY10-TS		QY22QY70──QY40P
QY40P-TS
QY50		QY80
QY80-TS
32 Points──QY71QY41H─QY41PQY81P
64 Points─────QY42PQY82P
30
45
60
  1. 1
Part Number
QY10
QY10-TS
QY11AL
QY13L
QY18A
QY22
QY23L
QY40P
QY40P-TS
QY41H
QY41P
QY42P
QY50
QY51PL
QY68A
QY70
QY71
QY80
QY80-TS
QY81P
QY82P
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipRoHSNumber of Outputs Output Format Rated load voltage
(V) 		Max Load Current Terminal shape Type of unit Rated load voltage
(V) 		Number of occupied input/outputs
(Point)

MYR 969.25

1 Piece(s) 20 Day(s) 616OtherDC24 / AC2402 A/1 piece18-point terminal blockRelay OutputDC24 / AC24016

MYR 1,069.15

1 Piece(s) Quote -16OtherDC24 / AC2402 A/1 pieceSpring Clamp Terminal Bloc with 18 Point Display FunctionRelay OutputDC24 / AC24016

MYR 1,890.15

1 Piece(s) Quote 616OtherDC24 / AC24016 A/ All Points38-Point Terminal Block ConnectorLarge Output (Relay)DC24 / AC24016

MYR 2,742.24

1 Piece(s) Quote -32OtherDC24 / AC2402 A/1 piece38-Point Terminal Block ConnectorLarge Output (Relay)DC24 / AC24032

MYR 892.55

1 Piece(s) Quote 68OtherDC24 / AC2402 A/1 piece18-point terminal blockRelay OutputDC24 / AC24016

MYR 1,176.82

1 Piece(s) 20 Day(s) 616Triac outputAC 100–2400.6A/1 piece18-point terminal blockTriac outputAC 100–24016

MYR 3,409.87

1 Piece(s) Quote -32Triac outputAC 100–2400.6A/1 piece38-Point Terminal Block ConnectorLarge Output (TRIAC)AC 100–24032

MYR 715.96

1 Piece(s) Quote 616Transistor / sync outputDC 12–240.1A/1 piece18-point terminal blockTransistor Output (Sink)DC 12–2416

MYR 823.56

1 Piece(s) Quote 616Transistor / sync outputDC 12–240.1A/1 pieceSpring Clamp Terminal Bloc with 18 Point Display FunctionTransistor Output (Sink)DC 12–2416

MYR 1,636.87

1 Piece(s) Quote -32Transistor / sync outputDC 12–24-40-pin connectorOutput--

MYR 1,214.73

1 Piece(s) 20 Day(s) -32Transistor / sync outputDC 12–240.1A/1 piece40-pin connectorTransistor Output (Sink)DC 12–2432

MYR 1,921.16

1 Piece(s) 20 Day(s) 664Transistor / sync outputDC 12–240.1A/1 piece40-pin connectorTransistor Output (Sink)DC 12–2464

MYR 660.49

1 Piece(s) 58 Day(s) 616Transistor / sync outputDC 12–240.5A/1 piece18-point terminal blockTransistor Output (Sink)DC 12–2416

MYR 2,205.47

1 Piece(s) Quote -32Transistor / sync outputDC 12–24-18-point terminal blockOutput--

MYR 1,030.36

1 Piece(s) Quote 68OtherDC5 to 242 A/1 piece18-point terminal blockTransistor Output (Sink/ Source)DC5 to 2416

MYR 715.96

1 Piece(s) Quote -16Transistor / sync outputDC5 to 1216mA/1 piece18-point terminal blockTTL CMOS OutputDC5 to 1216

MYR 715.96

1 Piece(s) Quote -32Transistor / sync outputDC5 to 1216mA/1 piece40-pin connectorTTL CMOS OutputDC5 to 1232

MYR 969.25

1 Piece(s) 91 Day(s) 616Transistor / source outputDC 12–240.5A/1 piece18-point terminal blockTransistor Output (Source)DC 12–2416

MYR 1,069.15

1 Piece(s) Quote 616Transistor / source outputDC 12–240.5A/1 pieceSpring Clamp Terminal Bloc with 18 Point Display FunctionTransistor Output (Source)DC 12–2416

MYR 1,636.87

1 Piece(s) 20 Day(s) 632Transistor / source outputDC 12–240.1A/1 piece37-Pin D-Sub ConnectorTransistor Output (Source)DC 12–2432

MYR 2,351.11

1 Piece(s) 20 Day(s) 664Transistor / source outputDC 12–240.1A/1 piece40-pin connectorTransistor Output (Source)DC 12–2464
