Q173D/Q172D Motion Controller Manual Pulse Generator
Dedicated motion controller manual pulse generator.
[Features]
・ Pulse resolution: 25 PLS/rev (100 PLS/rev after 4 times multiplication)
・ Allowable Axis Load: Radial load 19.6 N, thrust load 9.8 N
・ Allowable rotation speed: 200 r/min (during normal rotation) Voltage output
・ For MR-J4-A_-RJ, MR-J4-DUA_-RJ, for MR-J3-T, for MR-JN
Manual Pulse Generator Features
Pulse resolution: 25 PLS/rev (100 PLS/rev in multiplication by 4 mode)
Allowable axial load: Radial loads 19.6 N, thrust load 9.8 N
Allowable rotation: 200 r/min (normal revolution), voltage output

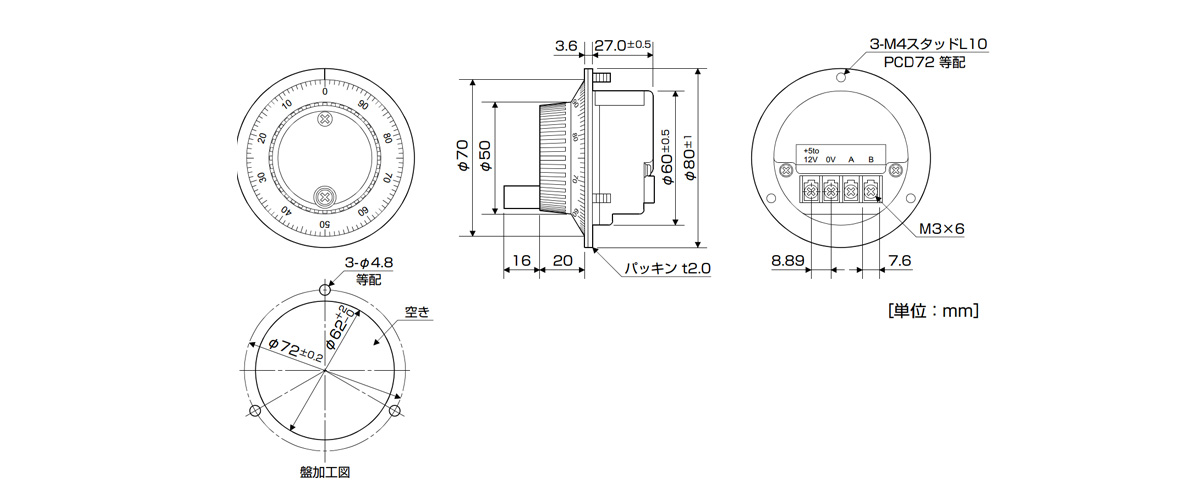

Manual Pulse Generator Drawing
Manual Pulse Generator Specifications
| Item | Specifications |
|---|---|
| Number of Pulses Per Revolution | 25 PLS/rev (100 PLS/rev in multiplication by 4 mode) |
| A-, B-Phase Output Voltage | Input Voltage: -1 V or more* |
| Lifespan | 1,000,000 revolutions or more (at 200 r/min) |
| Allowable Axial Load | Radial load: Maximum 19.6 N |
| Thrust load: Maximum 9.8 N | |
| Ambient Operating Temperature | -10°C to 60°C |
| Current Consumption (5 V DC) | 0.06 A |
| Weight | 0.4 kg |
- *Use a 5 V power supply If using an external power supply.
| Part Number |
|---|
| MR-HDP01 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS |
|---|---|---|---|---|---|
- | 1 Piece(s) | Quote | 6 |
Loading...
Basic Information
| Resolution | 25PLS/rev |
|---|
Please check the type/dimensions/specifications of the part MR-HDP01 in the Q173D/Q172D Motion Controller Manual Pulse Generator series.
Specification/Dimensions
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
