MELSEC-F Series Input/Output Cable Self-Build Connector【1-5 Pieces Per Package】
MELSEC-F Series Optional Training Connector (5 Sets Per Pack).
Part Number
Configured Part Number is shown.
Features of Input/Output Cable Self-Build Connector, 20-Pin Type

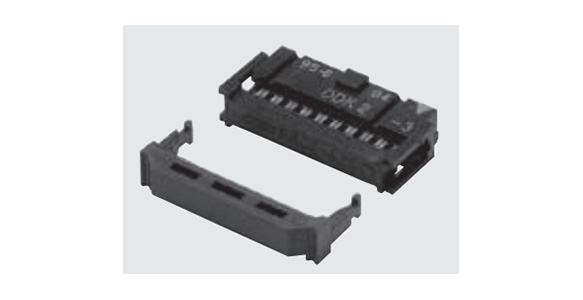

FX2C-I/O-CON

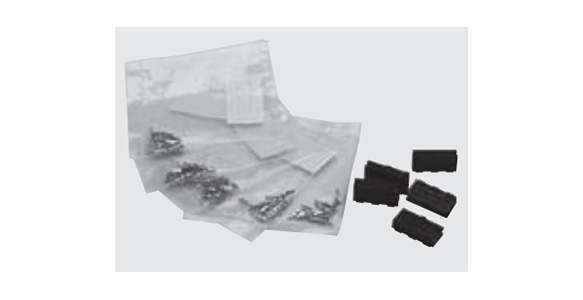

FX2C-I/O-CON-S, FX2C-I/O-CON-SA
Input/Output Cable Self-Build Connector, 20-Pin Type Specifications
| Type Name | Contents |
|---|---|
| ◆ Input/Output Cable Self-Build Connector, 20-Pin Type (Use Your Own Cable and Crimp Tools) | |
| FX2C-I/O-CON | ● AWG28 connector for ribbon cables (0.1 mm2): 10-unit set · Crimp connector: FRC2-A020-3OS 1.27 pitch 20-pin · Crimp tool: sold separately by DDK Ltd. 357J-4674D body 357J-4664N attachment |
| (1) FX2C-I/O-CON-S (2) FX2C-I/O-CON-SA | (1) Discrete wire connector AWG22 (0.3 mm2): 5 sets · Housing: HU-200S2-001 · Crimp contact: HU-411S · Crimp tool: sold separately by DDK Ltd. 357J-5538 |
| (2) Discrete wire connector AWG20 (0.5 mm2): 5 sets · Housing: HU-200S2-001 · Crimp contact: HU-411SA · Crimp tool: sold separately by DDK Ltd. 357J-13963 | |
Features of Input/Output Cable Self-Build Connector, 40-Pin Type

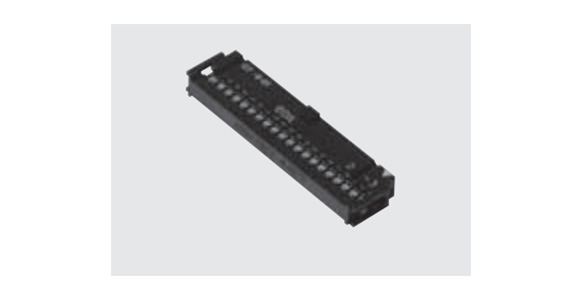

FX-I/O-CON2

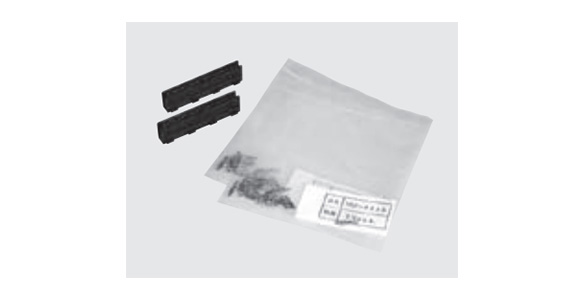

FX-I/O-CON2-S, FX-I/O-CON2-SA
Input/Output Cable Self-Build Connector, 40-Pin Type Specifications
| Type Name | Contents |
|---|---|
| ◆ Input/Output Cable Self-Build Connector, 40-Pin Type (Use Your Own Cable and Crimp Tools) | |
| FX-I/O-CON2 (for FX2NC-64ET) | ● AWG28 connector for ribbon cables (0.1 mm2): 2-unit set · Crimp connector: FRC2-A040-3OS 1.27 pitch 40-pin · Crimp tool: sold separately by DDK Ltd. 357J-4674D body 357J-4664N attachment |
| (1) FX-I/O-CON2-S (2) FX-I/O-CON2-SA (for FX2NC-64ET and FX3U-2HC) | (1) Discrete wire connector AWG22 (0.3 mm2): 2 sets · Housing: HU-400S2-001 · Crimp contact: HU-411S · Crimp tool: sold separately by DDK Ltd. 357J-5538 |
| (2) Discrete wire connector AWG20 (0.5 mm2): 2 sets · Housing: HU-400S2-001 · Crimp contact: HU-411SA · Crimp tool: Sold separately by DDK Ltd. 357J-13963 | |
| Part Number |
|---|
| FX2C-I/O-CON |
| FX2C-I/O-CON-S |
| FX2C-I/O-CON-SA |
| FX-I/O-CON2 |
| FX-I/O-CON2-S |
| FX-I/O-CON2-SA |
| Part Number | Standard Unit Price | Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Applicable Series | Conforming Cable | Conforming wire size | Note |
|---|---|---|---|---|---|---|---|---|---|---|
MYR 219.73 | 1 Piece(s) | Quote | 6 | FX1N / FX1NC / FX2N / FX2NC / FX3G / FX3U / FX3UC | For flat cable | 0.1mm2(AWG28) | (20 pin) connector for flat cables, for connector type basic unit, unit, block, AWG28 | |||
MYR 377.35 | 5 Pieces Per Package | 1 Pack(s) | Quote | - | FX1N / FX1NC / FX2N / FX2NC / FX3G / FX3U / FX3UC | For discrete wire | 0.3mm2(AWG22) | Discrete wire connector (20 pins), basic connector-type unit, unit, for block, AWG22 | ||
MYR 413.51 | 1 Piece(s) | Quote | - | FX1N / FX1NC / FX2N / FX2NC / FX3G / FX3U / FX3UC | For discrete wire | 0.5mm2(AWG20) | Discrete wire connector (20 pins), basic connector-type unit, unit, for block, AWG20 | |||
- | 1 Piece(s) | Quote | 6 | FX1NC / FX2NC / FX3UC | For flat cable | 0.1mm2(AWG28) | (40 pin) connector for flat cables, for FX2NC-64ET, AWG28 | |||
- | 1 Piece(s) | Quote | 10 | FX1NC / FX2NC / FX3UC | For discrete wire | 0.3mm2(AWG22) | Discrete wire connector (40 pins), for FX2NC-64ET AWG22 | |||
- | 1 Piece(s) | Quote | - | FX1NC / FX2NC / FX3UC | For discrete wire | 0.5mm2(AWG20) | Discrete wire connector (40 pins), for FX2NC-64ET AWG20 |
Loading...
Basic Information
| Connector Shape | Square shape | Connector series initials | M/N/O | M/N/O | MELSEC-F |
|---|---|---|---|---|---|
| Applicable pin/contact | Female (socket) | Number Of Pins | 20 | Application | Cable Connection |
| Wire connection method | Crimp |
Specification/Dimensions
-
Applicable Series
- FX1N
- FX1NC
- FX2N
- FX2NC
- FX3G
- FX3U
- FX3UC
-
Conforming Cable
- For discrete wire
- For flat cable
-
Conforming wire size
- 0.1mm2(AWG28)
- 0.3mm2(AWG22)
- 0.5mm2(AWG20)
-
Note
- Discrete wire connector (20 pins), basic connector-type unit, unit, for block, AWG20
- Discrete wire connector (20 pins), basic connector-type unit, unit, for block, AWG22
- (20 pin) connector for flat cables, for connector type basic unit, unit, block, AWG28
- Discrete wire connector (40 pins), for FX2NC-64ET AWG20
- Discrete wire connector (40 pins), for FX2NC-64ET AWG22
- (40 pin) connector for flat cables, for FX2NC-64ET, AWG28
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
