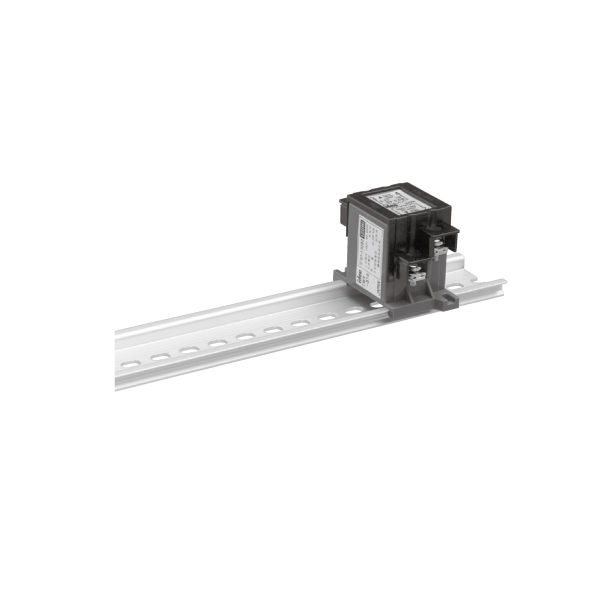

Current Transformer (CT) CW-LT Series
For small current/primary winding, for general-use meters
(i)Caution
- Some products are scheduled to be discontinued from October 2021. Depend on stock status, the end time will be changed. Please check the quotation and order screen for details.
Part Number
Configured Part Number is shown.
Low Voltage Current Transformer Features
For small current flows / primary wind type.

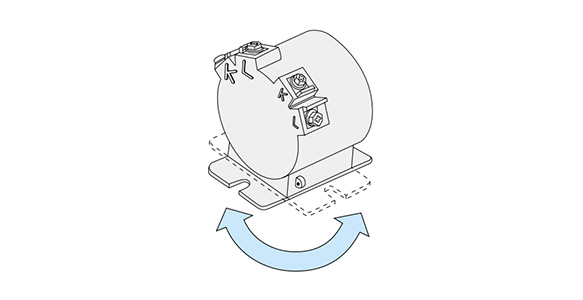

The direction of the attached legs can be changed 90°.
Secondary terminal insulation caps are available as an option.
For general meters.
Self-Loading VA
| CW-5LP | CW-15LP | CW-40LP | |
|---|---|---|---|
| Self-loading (VA) | 3.5 (30 A or less) 5.0 (40, 50 A ) | 5.0 | 6.5 |
Low Voltage Current Transformer Specifications
| Type Name | Rated Primary Current (A) | Rated Load (VA) | Accuracy Grade (Class) | Excess Current Strength (Multiple) | Maximum Voltage /Withstand Voltage (kV) | Frequency (Hz) | External Diagram | Mass (kg) | Testing Advisability | |
|---|---|---|---|---|---|---|---|---|---|---|
| Secondary Current 5 A | Secondary Current 1 A | |||||||||
| CW-5LP | 1 | 1 | 5 | 1.0 | 40 | 1.15/ 4/- | 50/60 Both | Figure 1 | 0.7 | No |
| 2 | 2 | |||||||||
| 3 | 3 | |||||||||
| 5 | 5 | |||||||||
| 7.5 | 7.5 | |||||||||
| 10 | 10 | |||||||||
| 15 | 15 | |||||||||
| 20 | 20 | |||||||||
| 25 | 25 | |||||||||
| 30 | 30 | |||||||||
| 40 | 40 | Figure 2 | 1.1 | |||||||
| 50 | 50 | |||||||||
| CW-15LP | 1 | 1 | 15 | 1.0 | 40 | 1.15/ 4/- | 50/60 Both | Figure 2 | 1.1 | |
| 2 | 2 | |||||||||
| 3 | 3 | |||||||||
| 5 | 5 | |||||||||
| 7.5 | 7.5 | |||||||||
| 10 | 10 | |||||||||
| 15 | 15 | |||||||||
| 20 | 20 | |||||||||
| 25 | 25 | |||||||||
| 30 | 30 | |||||||||
| 40 | 40 | |||||||||
| 50 | 50 | |||||||||
| CW-40LP | 1 | 1 | 40 | 1.0 | 40 | 1.15/ 4/- | 50/60 Both | Figure 2 | 1.1 | |
| 2 | 2 | |||||||||
| 3 | 3 | |||||||||
| 5 | 5 | |||||||||
| 7.5 | 7.5 | |||||||||
| 10 | 10 | |||||||||
| 15 | 15 | |||||||||
| 20 | 20 | |||||||||
| 25 | 25 | |||||||||
| 30 | 30 | |||||||||
| 40 | 40 | 1.2 | ||||||||
| 50 | 50 | |||||||||
External Dimensions Diagram

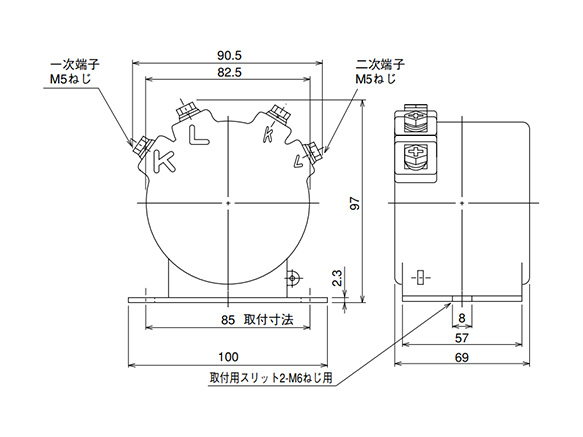

Figure 1. CW-5LP Type (1 to 30 A)

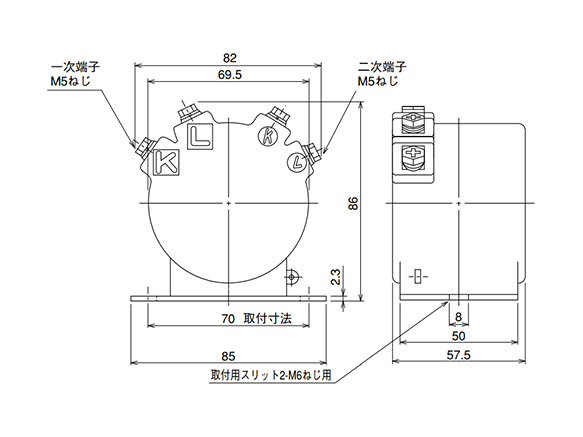

Figure 2. CW-5LP (40, 50 A), CW-15LP, CW-40LP Type
| Part Number |
|---|
| CW-5LP 5/5A |
| CW-5LP 10/5A |
| CW-5LP 15/5A |
| CW-5LP 20/5A |
| CW-5LP 30/5A |
| CW-15LP 15/1A |
| CW-15LP 30/1A |
| CW-15LP 50/5A |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Current Transformation Ratio (A) | Rated load (VA) |
|---|---|---|---|---|---|---|
MYR 168.46 | 1 Piece(s) | 9 Day(s) or more | 5/5 | 5 | ||
MYR 222.89 | 1 Piece(s) | 9 Day(s) or more | 10/5 | 5 | ||
MYR 260.02 | 1 Piece(s) | 8 Day(s) or more | 15/5 | 5 | ||
MYR 260.02 | 1 Piece(s) | 8 Day(s) or more | 20/5 | 5 | ||
MYR 260.02 | 1 Piece(s) | 9 Day(s) or more | 30/5 | 5 | ||
MYR 489.69 | 1 Piece(s) | 26 Day(s) | 15/1 | 15 | ||
MYR 489.69 | 1 Piece(s) | 26 Day(s) | 30/1 | 15 | ||
- | 1 Piece(s) | Quote | 50/5 | 15 |
