Miniature Circuit Breakers BH Series
From 30A frame to 1600A frame expanding the series with renewed models
Japanese Only
Part Number
Configured Part Number is shown.
BH-C1/BH-C2 Characteristics and External Shape
BH-C1/BH-C2 Specifications
| Model | BH-C1 | BH-C1D | BH-C2 | BH-C2D | ||
|---|---|---|---|---|---|---|
| No. of poles / elements | 2P1E | 2P2E | ||||
| Rated current (A) | 15 20 30 | |||||
| Rated insulation voltage (V) | 265 | |||||
| Rated breaking capacity JIS C 8201-2-1 Ann.2 kA | AC | 100 V | 5 | 5 | - | - |
| 100/200 V | - | - | 5 | 5 | ||
| 240 V | - | - | 2.5 | 2.5 | ||
| 125 V DC | - | 1 | - | 2.5 | ||
| Connection method on power supply side | Screw terminal | Suitable | Suitable | Suitable | Suitable | |
| Plug-in terminal (AP) (*2) | Possible use | - | Possible use | - | ||
| Connection method on load side | Screw terminal | Suitable | Suitable | Suitable | Suitable | |
| Quick-connect terminal (QT) (*1) | Suitable | - | Suitable | - | ||
*1: When ordering a quick-connect terminal (QT), please specify "QT" in your order.
*2: When ordering a plug-in terminal (AP), please specify "AP" in your order.

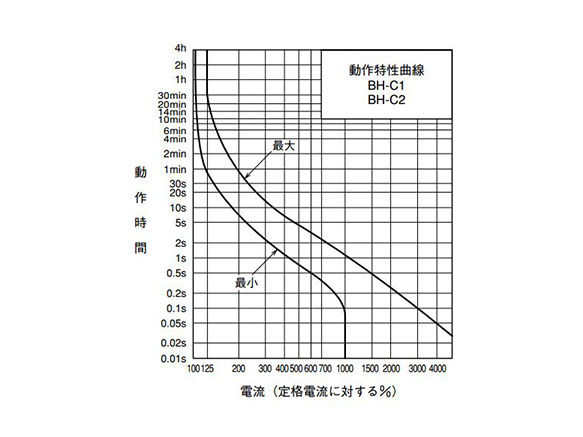

Operating Characteristics Curve

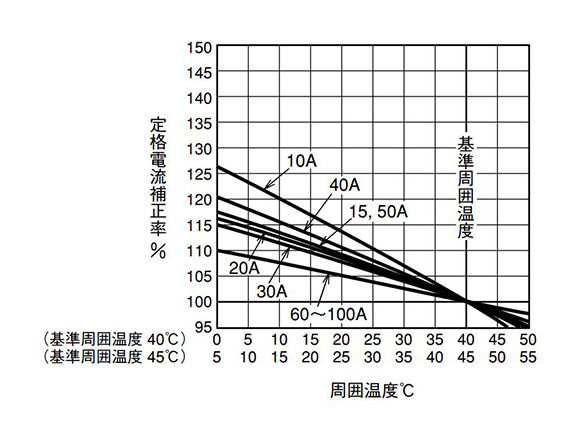

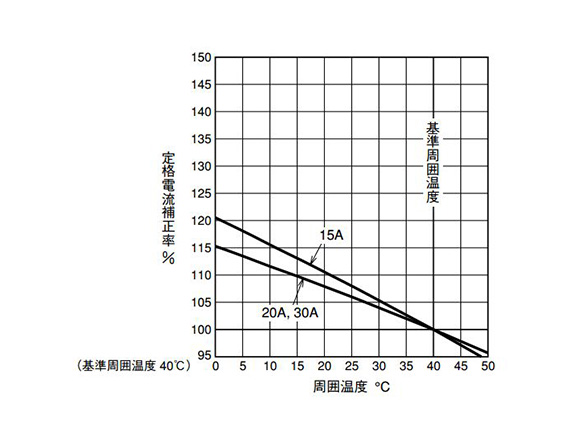

Temperature Correction Curve
BH-C1/BH-C2 Drawing

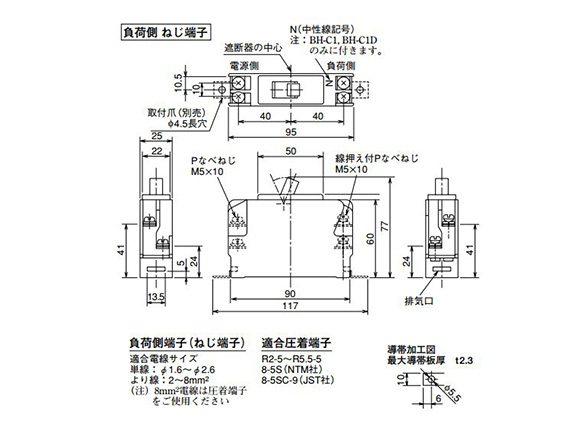

Screw terminal

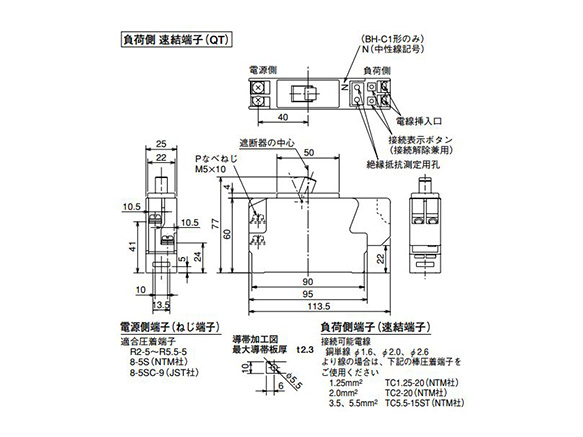

Quick-connect terminal (QT)
BH-CP1/BH-CP2 Characteristics and External Shape
BH-CP1/BH-CP2 Specifications
| Model | BH-CP1NR | BH-CP1NT | BH-CP2 | ||
|---|---|---|---|---|---|
| No. of poles / elements | 2P1E | 2P2E | |||
| Rated current (A) | 15 20 30 | ||||
| Rated insulation voltage (V) | 265 | ||||
| Rated breaking capacity JIS C 8201-2-1 Ann.2 kA | AC | 100 V | 5 | - | |
| 100/200 V | - | 5 | |||
| 240 V | - | 2.5 | |||
| Connection method on load side | Screw terminal | Suitable | Suitable | Suitable | |
| Quick-connect terminal (QT) (*1) | Suitable | Suitable | Suitable | ||

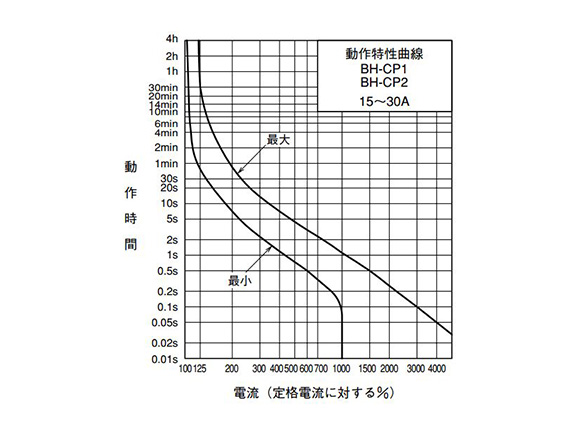

Operating Characteristics Curve

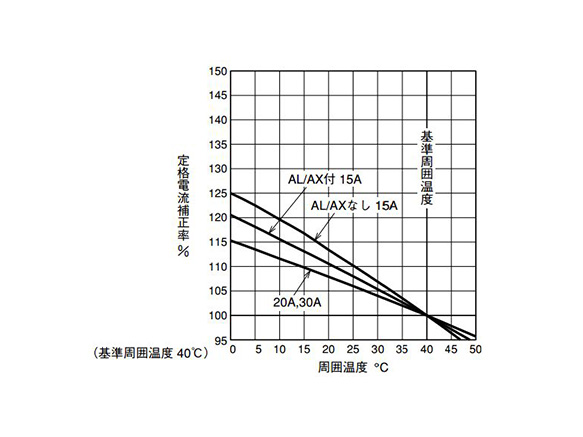

Temperature Correction Curve

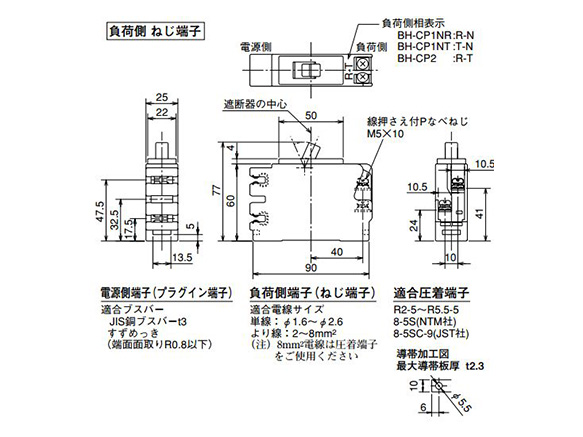

BH-CP1/BH-CP2 Drawing
Screw terminal

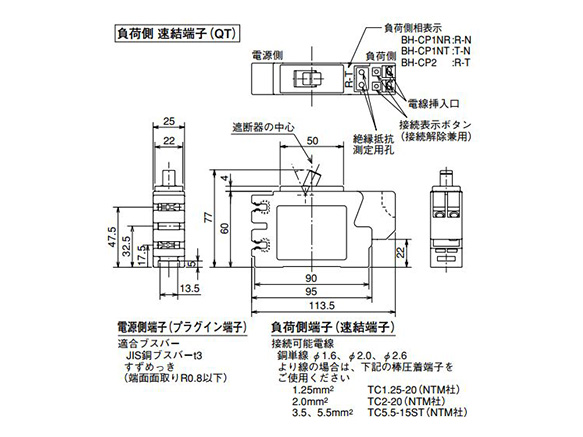

Quick-connect terminal (QT)
BH-K Characteristics and External Shape
BH-K Specifications
| Model | BH-K | |||||
|---|---|---|---|---|---|---|
| Rated current (A) | 10 15 20 30 40 50 | 15 20 30 40 50 | ||||
| Number of poles | 1 | 2 | 3 | |||
| Rated insulation voltage (V) | 300 | 500 | ||||
| Rated breaking capacity (kA) | JIS C 8201-2-1 Ann.2 | AC | 100 V | 5 | - | |
| 100 V / 200 V | - | (*1) (5) | - | |||
| 200 V | - | 5 (*1) (-) | ||||
| 240 V | 2.5 | (*1) (2.5) | - | |||
| 415 V | - | 2.5 (*1) (-) | ||||
| DC | 125 V | 1 | 5 | |||
| NK (*2) | AC | 125 V | - | 7.5 | 5 | |
| 250 V | - | 5 | 2.5 | |||
| DC | 125 V | - | 5 | 2.5 | ||
*1: Values in ( ) are for a rated current of 10 A.
*2: Please specify if NK standard is required.

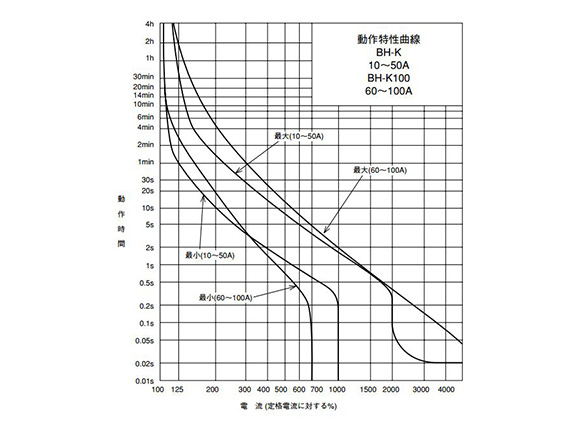

Operating Characteristics Curve
Temperature Correction Curve

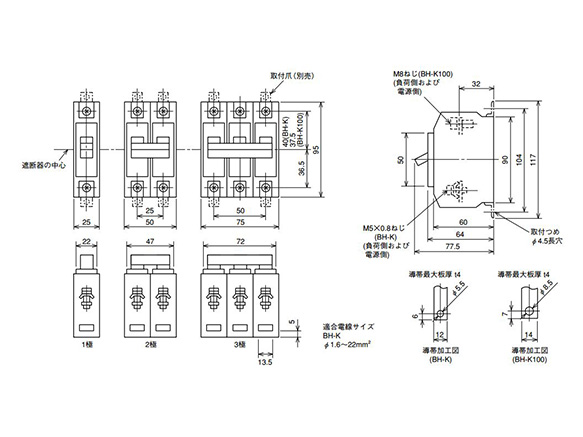

Drawing
| Part Number |
|---|
| BH-CP1NR 20A |
| BH-CP1NR 30A |
| BH-CP1NT 20A |
| BH-CP1NT 30A |
| BH-K 1P 15A |
| BH-K 1P 20A |
| BH-K 1P 30A |
| BH-K 1P 40A |
| BH-K 1P 50A |
| BH-K 2P 10A |
| BH-K 2P 15A |
| BH-K 2P 20A |
| BH-K 2P 30A |
| BH-K 3P 20A |
| BH-K 3P 50A |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Rated block capacity AC 100 V (kA) | Rated block capacity AC 200 V (kA) | Rated block capacity, voltages except VAC 100/200/400, VDC 250 | Number of Poles | Rated Current (A) | Connection Method | Dimension width (mm) | Dimension depth (mm) | Type | MDU breaker product form | rate sensitivity current (mA) | Rated block capacity AC 415 V (kA) | Rated block capacity AC 100/200 V (kA) | Rated block capacity AC 240 V (kA) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 Piece(s) | Quote | - | 5 | - | - | 2 | 20 | [Other] Screw terminal | 25 | 77 | Power supply side plug-in shape no fuse breaker | BH mini (2P1E) | - | - | - | - | ||
- | 1 Piece(s) | Quote | - | 5 | - | - | 2 | 30 | [Other] Screw terminal | 25 | 77 | Power supply side plug-in shape no fuse breaker | BH mini (2P1E) | - | - | - | - | ||
- | 1 Piece(s) | Quote | - | 5 | - | - | 2 | 20 | [Other] Screw terminal | 25 | 77 | Power supply side plug-in shape no fuse breaker | BH mini (2P1E) | - | - | - | - | ||
- | 1 Piece(s) | Quote | - | 5 | - | - | 2 | 30 | [Other] Screw terminal | 25 | 77 | Power supply side plug-in shape no fuse breaker | BH mini (2P1E) | - | - | - | - | ||
- | 1 Piece(s) | Quote | 6 | 5 | - | Available | 1 | 15 | Surface type | 25 | 77.5 | Compatibility breaker | - | 15 | - | - | 2.5 | ||
- | 1 Piece(s) | Quote | 6 | 5 | - | Available | 1 | 20 | Surface type | 25 | 77.5 | Compatibility breaker | - | 20 | - | - | 2.5 | ||
MYR 70.76 | 1 Piece(s) | 9 Day(s) or more | - | 5 | - | Available | 1 | 30 | Surface type | 25 | 77.5 | Compatibility breaker | - | 30 | - | - | 2.5 | ||
- | 1 Piece(s) | Quote | 6 | 5 | - | Available | 1 | 40 | Surface type | 25 | 77.5 | Compatibility breaker | - | 40 | - | - | 2.5 | ||
- | 1 Piece(s) | Quote | - | 5 | - | Available | 1 | 50 | Surface type | 25 | 77.5 | Compatibility breaker | - | 50 | - | - | 2.5 | ||
- | 1 Piece(s) | Quote | 6 | - | - | - | 2 | 10 | Surface type | 50 | 77.5 | Compatibility breaker | - | 10 | - | 5 | - | ||
- | 1 Piece(s) | Quote | - | - | 5 | - | 2 | 15 | Surface type | 50 | 77.5 | Compatibility breaker | - | 15 | - | - | - | ||
- | 1 Piece(s) | Quote | - | - | 5 | - | 2 | 20 | Surface type | 50 | 77.5 | Compatibility breaker | - | 20 | - | - | - | ||
- | 1 Piece(s) | Quote | - | - | 5 | - | 2 | 30 | Surface type | 50 | 77.5 | Compatibility breaker | - | 30 | - | - | - | ||
- | 1 Piece(s) | Quote | - | - | 5 | Available | 3 | 20 | Surface type | 75 | 77.5 | Compatibility breaker | - | 20 | 2.5 | - | - | ||
MYR 419.88 | 1 Piece(s) | 9 Day(s) or more | - | - | 5 | Available | 3 | 50 | Surface type | 75 | 77.5 | Compatibility breaker | - | 50 | 2.5 | - | - |
Loading...
Basic Information
| Ampere frame | 50AF | Mounting Method | Fasten With Screws | Representative Standard | PSE |
|---|---|---|---|---|---|
| Dimension height(mm) | 95 |
Specification/Dimensions
-
Rated block capacity AC 100 V(kA)
-
Rated block capacity AC 200 V(kA)
-
Rated block capacity, voltages except VAC 100/200/400, VDC 250
- Available
-
Number of Poles
- 1
- 2
- 3
-
Rated Current(A)
-
Connection Method
- Surface type
- Other
-
Dimension width(mm)
-
Dimension depth(mm)
-
Type
-
MDU breaker product form
- BH mini (2P1E)
-
rate sensitivity current(mA)
- 10
- 15
- 20
- 30
- 40
- 50
-
Rated block capacity AC 415 V(kA)
-
Rated block capacity AC 100/200 V(kA)
- 5
-
Rated block capacity AC 240 V(kA)
Days to Ship
-
- All
- 9 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Additional Products in this Category
- WS-V series No-fuse circuit breaker for control panel NF-FA series
- Molded Case Circuit Breakers (MCCB) NF-CV/SV
- BH MINI Series No-Fuse Breaker For Power Distribution Board
- Molded Case Circuit Breakers (MCCB) NF-CS Series
- Molded Case Circuit Breakers (MCCB) NF-FAU Series
- ABS series (distribution panel-type, no fuse) [ABS32FB]
- ABS [N]□□C series (high breaking capacity type, without fuse) [ABS52C]
- WS-V Series MCCB, NF-S Class (General-Purpose Product)
Customers Who Viewed This Item Also Viewed
-
BH MINI Series No-Fuse Breaker For Power Distribution BoardMITSUBISHI
Days to Ship : 8 Day(s) or more
-
BH MINI Series Earth Leakage Circuit Breaker For Power Distribution BoardMITSUBISHI
Days to Ship : Quote
-
![ABS series (distribution panel-type, no fuse) [ABS32FB]](//pre-my.misumi-ec.com/linked/material/el/LSI1/PHOTO/222000491785_002.jpg?$product_recommend_b$)
ABS series (distribution panel-type, no fuse) [ABS32FB]LSIS
Standard Price : MYR 90.33-
Days to Ship : 4 Day(s) or more
-
High Cut-off Current, No-Fuse BreakersMISUMI
Standard Price : MYR 189.81-
Days to Ship : 2 Day(s) or more
-
![ABS [N]□□C series (high breaking capacity type, without fuse) [ABS52C]](//pre-my.misumi-ec.com/linked/material/el/LSI1/PHOTO/LSI1_75.jpg?$product_recommend_b$)
ABS [N]□□C series (high breaking capacity type, without fuse) [ABS52C]LSIS
Standard Price : MYR 167.84-
Days to Ship : 4 Day(s) or more
![ABS series (distribution panel-type, no fuse) [ABS32FB]](http://pre-my.misumi-ec.com/linked/material/el/LSI1/PHOTO/222000491785_002.jpg?$product_recommend_b$)
![ABS [N]□□C series (high breaking capacity type, without fuse) [ABS52C]](http://pre-my.misumi-ec.com/linked/material/el/LSI1/PHOTO/LSI1_75.jpg?$product_recommend_b$)
Tech Support
- Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations)
- Tel：(60) 3 7890 6399
- 9:00am - 6:00pm (Monday - Friday)
9:00am - 1:00pm (Saturday) - Technical Inquiry
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
