Magnetic Contactors S-N Series
A high-quality product corresponding to global diversification needs.
Part Number
Configured Part Number is shown.
S-N125 AC200V
MS-N Series S-□ Standard Type AC Operation Electromagnetic Contactor Specifications
| Electromagnetic Contactor | Electromagnetic Switch | Rated Capacity [kW] | Rated Operating Current [A] | Open Thermal Current Ith [A] | Auxiliary Contact | Combination Thermal Relay | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Three-Phase Squirrel-Cage Motor (AC-3 Class) | Three-Phase Squirrel-Cage Motor (AC-3 Class) | Resistant Load (AC-1 Class) | ||||||||||||
| 200 To 220 V | 380 To 440 V | 500 To 550 V | 200 To 220 V | 380 To 440 V | 500 To 550 V | 200 To 220 V | 380 To 440 V | Standard (Special) | Unit Type Name That Can Be Added × Unit Count | Type Name | Heater Nominal Application Range [A] | |||
| S-N50 | MSO-N50 (CX) | 11 | 22 | 22 | 50 | 48 | 38 | 80 | 80 | 80 | 2a2b | UN-AX2, 4 × 1 or UN-AX11 × 2 | TH-N60 | 15 to 42 |
| S-N150 | MSO-N150 | 37 | 75 | 90 | 150 | 150 | 140 | 200 | 200 | 200 | UN-AX150 × 2 | THN120 (TA) | 45 to 125 | |
| S-N400 | MSO-N400 | 110 | 200 | 200 | 400 | 400 | 350 | 450 | 450 | 450 | TH-N400RH | 105 to 330 | ||
| S-N600 | - | 160 | 300 | 300 | 630 | 630 | 500 | 660 | 660 | 660 | UN-AX600 × 1 | TH-N600 | 250 to 500 | |

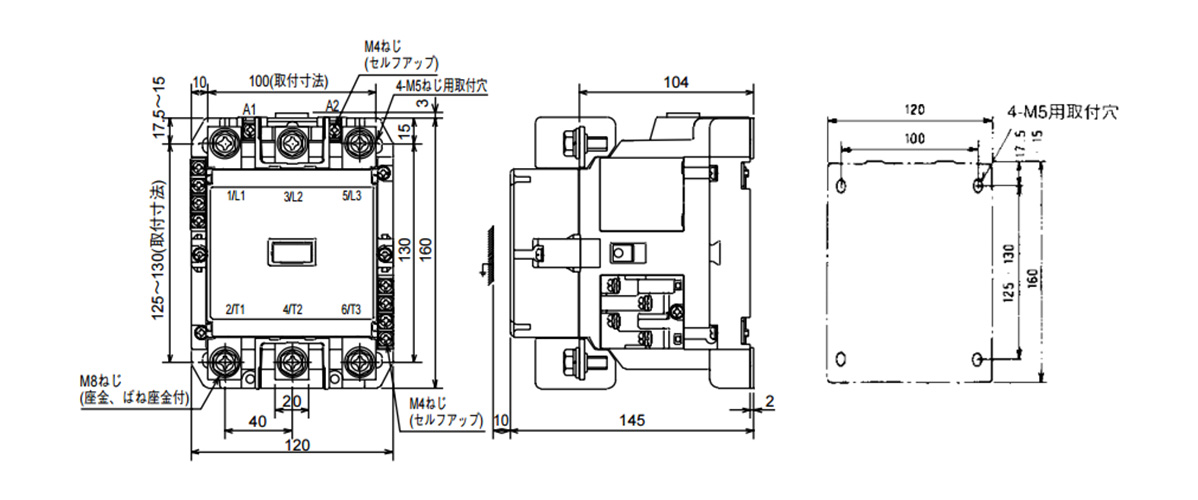

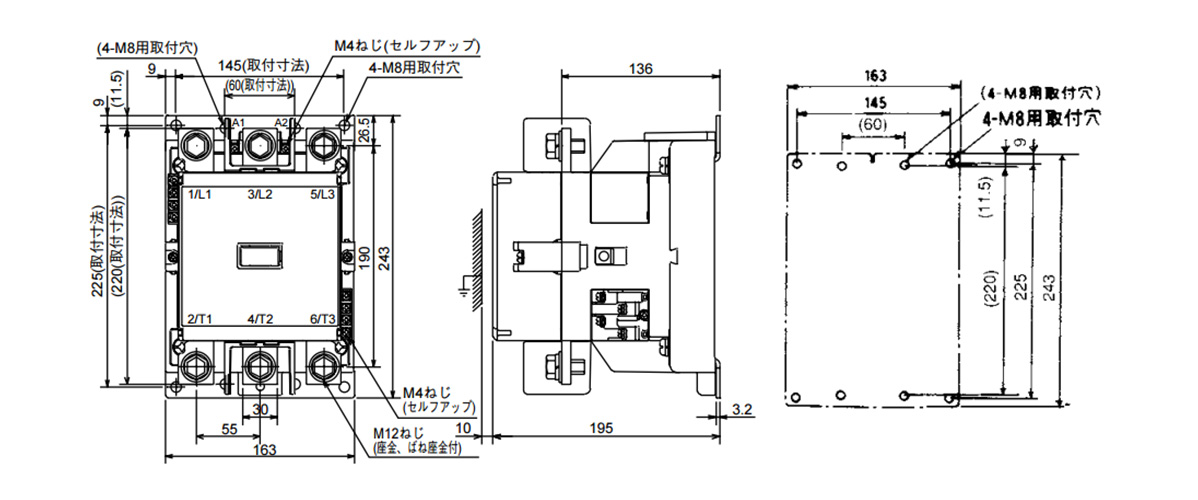

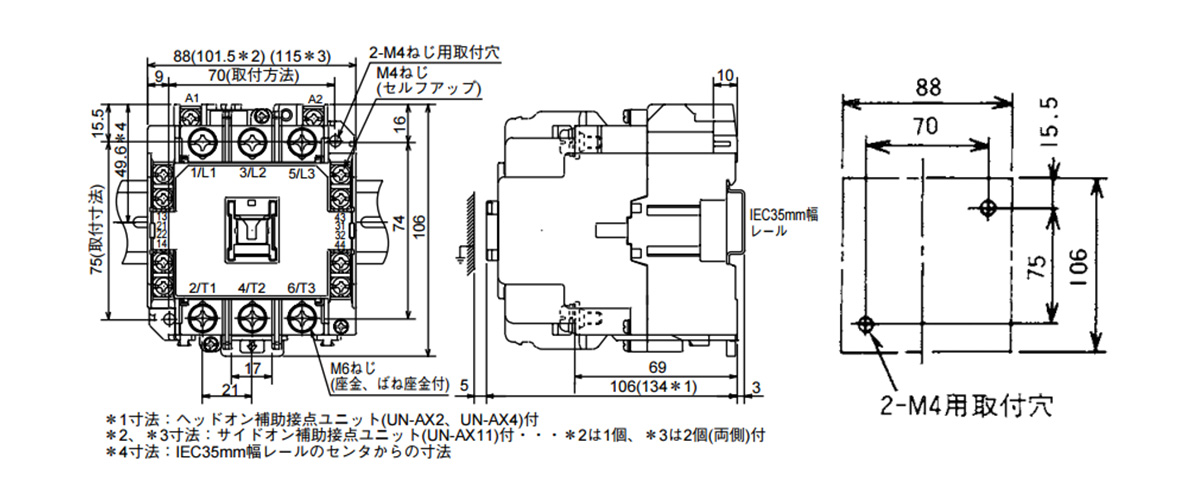

MS-N Series S-□ Standard Type AC Operation Electromagnetic Contactor External Dimensions
S-N50
S-N150
S-N400
S-N600
| Part Number |
|---|
| S-N125 AC200V |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship |
|---|---|---|---|---|
- | 1 Piece(s) | Quote |
Loading...
Basic Information
| Operating Method | Irreversible type | Coil rated voltage(V) | AC200 | Number of Poles | 3 |
|---|---|---|---|---|---|
| Auxiliary Contact | 2a2b | Representative Standard | CE / UL / CUL / TUV / CCC / CSA | Dimension length(mm) | 100 |
| Dimension width(mm) | 150 | Dimension thickness(mm) | 137 | Specifications | Alternating Current Operation |
| Frame Size | N125 | Finger protection/terminal cover | NA | Rated current used Resistance load (AC-1) 200 V(A) | 150 |
| Rated current used Resistance load (AC-1) 400V(A) | 150 |
Please check the type/dimensions/specifications of the part S-N125 AC200V in the Magnetic Contactors S-N Series series.
Specification/Dimensions
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
