GOT1000 Serial Communication Unit
A serial communication unit
Part Number
Configured Part Number is shown.

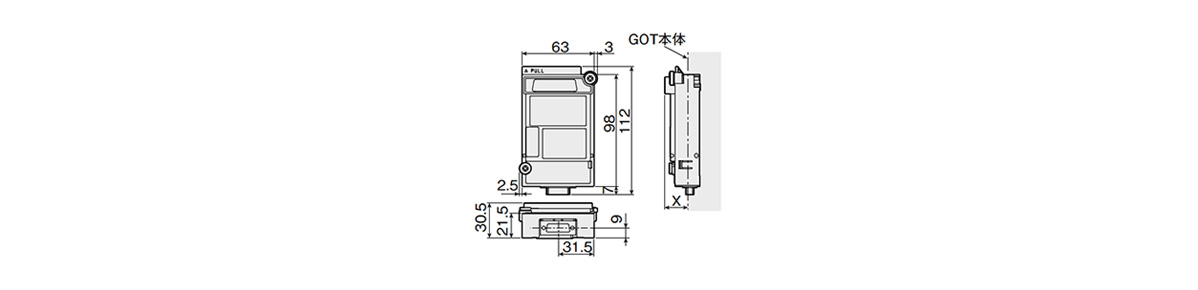

GT15-RS2-9P/GT15-RS4-9S Drawing
Drawing
- *The connector type, etc., vary depending on the type name.

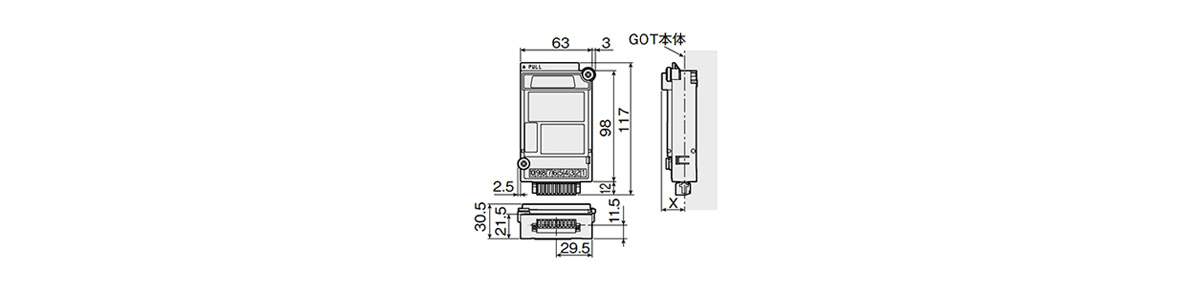

GT15-RS4-TE Drawing
Drawing

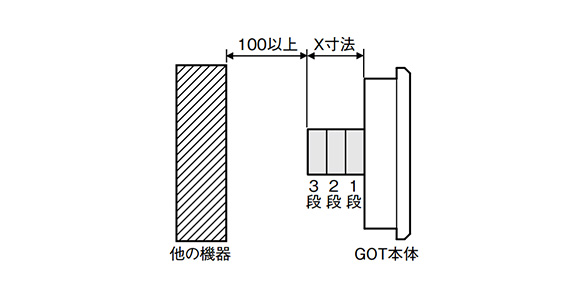

Dimension X With GOT Installed
X dimensional drawing
Calculation formula for dimension X
1 level = Y (main body coefficient) + 21.5
2 levels = Y (main body coefficient) + 21.5 + 21.5
3 levels = Y (main body coefficient) + 21.5 + 21.5 + 21.5
(unit: mm)
| Part Number |
|---|
| GT15-RS2-9P |
| GT15-RS4-9S |
| GT15-RS4-TE |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Connector 1 | Communication method 1 | Communication method 2 | Note |
|---|---|---|---|---|---|---|---|---|---|
MYR 1,945.29 | 1 Piece(s) | 91 Day(s) | 6 | D-Sub 9P | RS-232 | - | Used for Serial Communication Between GOT and FA Devices, RS-232 Serial Communication Unit (D-Sub 9 Pin) | ||
MYR 1,945.29 | 1 Piece(s) | 91 Day(s) | - | D-Sub 9P | RS-422 | RS-485 | Used for Serial Communication Between GOT and FA Devices, RS-422/485 Serial Communication Unit (D-Sub 9 Pin), For GT16, GT15 | ||
MYR 1,945.29 | 1 Piece(s) | 91 Day(s) | 6 | Terminal Block | RS-422 | RS-485 | Used for Serial Communication Between GOT and FA Devices, RS-422/485 Serial Communication Unit (Terminal Block) |
Loading...
Basic Information
| Type | Communication Unit | Compatible Model | G15 / G16 |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
