BH MINI Series No-Fuse Breaker For Power Distribution Board
Since it is a plug-in for the power supply side, it is one-touch installation, shortening the work time for a power outage
Part Number
Configured Part Number is shown.
Power Distribution Board Breaker Specifications
| Applications | No-Fuse Breaker For Branch Circuit | Plug-In Type No-Fuse Breaker On Power Supply Side | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| BH Mini (2P1E) | BH Mini (2P2E) | BH Mini (2P1E) | BH Mini (2P2E) | |||||||
| Frame A | 50 | 50 | 50 | 50 | ||||||
| Type Name | BH-C1 | BH-C1D | BH-C2 | BH-C2D | BH-CP1NR | BH-CP1NT | BH-CP2 | |||
| Rated current A (standard ambient temperature 40°C) | 15 20 30 | 15 20 30 | 15 20 30 | 15 20 30 | ||||||
| Number of contacts | 2 (2P1E) | 2 (2P2E) | 2 (2P1E) | 2 (2P2E) | ||||||
| Rated insulation voltage V | 265 | 265 | 265 | 265 | ||||||
| Rated operating voltage V | AC | - | - | - | - | |||||
| Rated sensitivity current mA | - | - | - | - | - | - | ||||
| Operating time s or less | - | - | - | - | - | - | ||||
| Rated short circuit breaking capacity kA | JIS C 8201-2-1 Ann.2 (Icu) | AC | 240 V | - | - | 2.5 | 2.5 | - | 2.5 | |
| 200 V | - | - | - | - | - | - | ||||
| 100/ 200 V | - | - | 5 | 5 | - | 5 | ||||
| 100 V | 5 | 5 | - | - | 5 | - | ||||
| DC | 125 V | - | 1 | - | 2.5 | - | - | |||
| JIS C 8201-2-2 Ann.2 (Icu) | AC | 240 V | - | - | - | - | - | - | ||
| 200 V | - | - | - | - | - | - | ||||
| 100/ 200 V | - | - | - | - | - | - | ||||
| 100 V | - | - | - | - | - | - | ||||
| External Dimensions mm | a | 25 | 25 | 25 | 25 | |||||
| b | 95 | 95 | 95 | 95 | ||||||
| c | 60 | 60 | 60 | 60 | ||||||
| ca | 77 | 77 | 77 | 77 | ||||||
| Product Mass kg | 0.14 | 0.16 | 0.13 | 0.14 | ||||||
| Connection | Power supply side plug-in type | - | - | ○ Power supply side plug-in type Load side screw terminal type | ○ Power supply side plug-in type Load side screw terminal type | |||||
| Power supply side plug-in type (AP) (Note 2) | △ Note 3 | - | △ Note 3 | - | - | - | ||||
| Load side quick-connect terminal type (QT) (Note 1) | ○ Note 3 | - | ○ Note 3 | - | ○ | ○ | ||||
| Accessory devices | Warning switch (AL) | ○ | - | ○ | - | ○ | ○ | |||
| Auxiliary switch (AX) | ○ | - | ○ | - | ○ | ○ | ||||
| Part sold separately | Lock cover (LC) | ○ | ○ | ○ | ○ | |||||
| Reverse connections | ○ | ○ | - | - | ||||||
| Electrical Appliance And Material Safety Law | Compliant | Compliant | Compliant | Compliant | ||||||
| Overcurrent tripping method | Thermal - electromagnetic | |||||||||
Note 1: When ordering a quick-connect terminal (QT), specify “QT” in your order.
Note 2: When ordering a power supply side plug-in type (AP), specify “AP” in your order.
Note 3: Product is also available combining specifications for AP and QT. Please inquire for details.

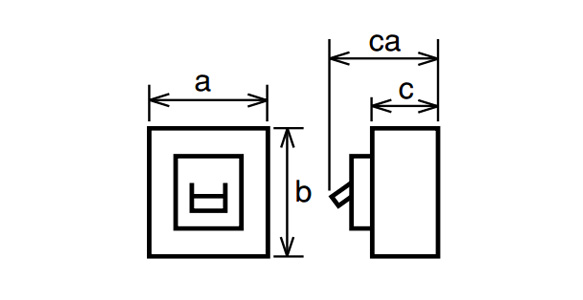

Power Distribution Board Breaker External Dimensions
Notes
1. The rated breaker capacity 100/200 V value is for single-phase 3-wire systems.
2. The rated voltage 240 V product can also be used in circuits with 240 V or less to ground, such as a three-phase 4-wire system, ect.

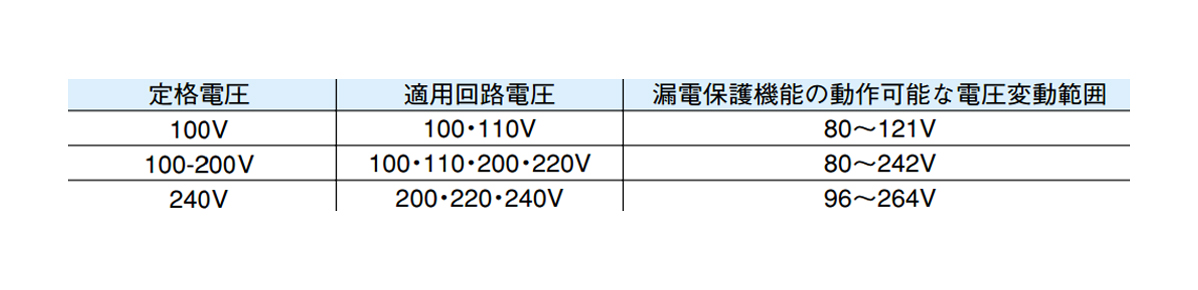

3. Variable voltage range in which electrical leakage protection function can operate.

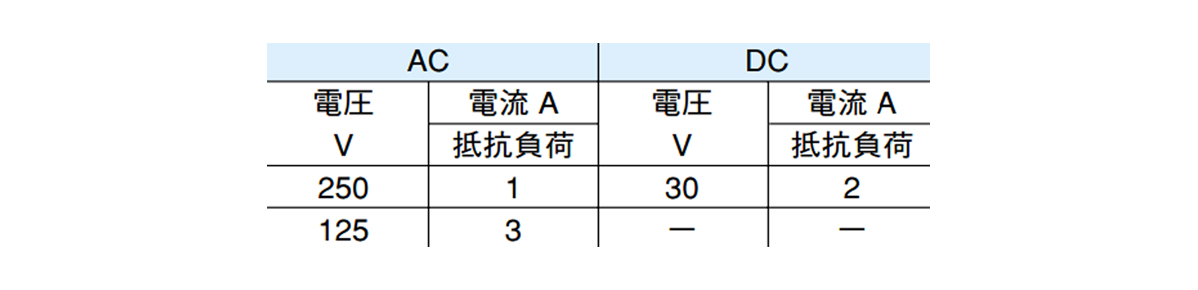

4. Alarm switch (AL) and auxiliary switch (AX) voltage
5. Alarm switch (AL) and auxiliary switch (AX) rating
Use at 60 V, 0.6 A or higher. However, this can be used with input in the 5 to 60 V and 0.05 to 0.6 A range, or at 3 VA input and lower.
Please inquire regarding use at low voltage and current ranges less than these.
| Part Number |
|---|
| BH-CP2 20A |
| BH-CP2 30A |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Rated block capacity, voltages except VAC 100/200/400, VDC 250 | Rated Current (A) | Connection Method | Specifications | Rated block capacity AC 240 V (kA) | Connection phase | Power supply connection method | Number of Elements (Element) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MYR 272.17 | 1 Piece(s) | 8 Day(s) or more | - | Available | 20 | [Other] Plug-in type | Power supply side plug-in shape | 2.5 | R-T | Plug-in terminal | 2 | ||
- | 1 Piece(s) | Quote | - | Available | 30 | [Other] Plug-in type | Power supply side plug-in shape | 2.5 | R-T | Plug-in terminal | 2 |
Loading...
Basic Information
| Ampere frame | 50AF | Rated block capacity AC 100 V(kA) | 5 | Number of Poles | 2 |
|---|---|---|---|---|---|
| Mounting Method | Fasten With Screws | Dimension height(mm) | 95 | Dimension width(mm) | 25 |
| Dimension depth(mm) | 77 | Rated block capacity AC 415 V(kA) | NA | Rated block capacity DC 125 V(kA) | NA |
| Load side connection method | Screw terminal |
Specification/Dimensions
-
Rated block capacity, voltages except VAC 100/200/400, VDC 250
- Available
-
Rated Current(A)
-
Specifications
- For branch circuits
- Power supply side plug-in shape
-
Rated block capacity AC 240 V(kA)
- 2.5
- NA
-
Connection phase
- R-T
-
Power supply connection method
- Plug-in terminal
- Screw terminal
-
Number of Elements(Element)
- 1
- 2
-
Connection Method
- Surface type
- Other
Days to Ship
-
- All
- 8 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
