Magnetic Contactors S-T Series

Magnetic Contactors S-T Series

MITSUBISHI

MITSUBISHI

Mitsubishi electromagnetic opening/closing device.
[Features]
·Universally compatible.
·Twin contact adopted for auxiliary contact
·Terminal cover included as standard.
·Incredible performance housed in a small body.
[Applications]
·Useful for motor starting, stopping and burnout protection.

PDF

Part Number

Configured Part Number is shown.

S-T Series (Non-Reversible) Specifications

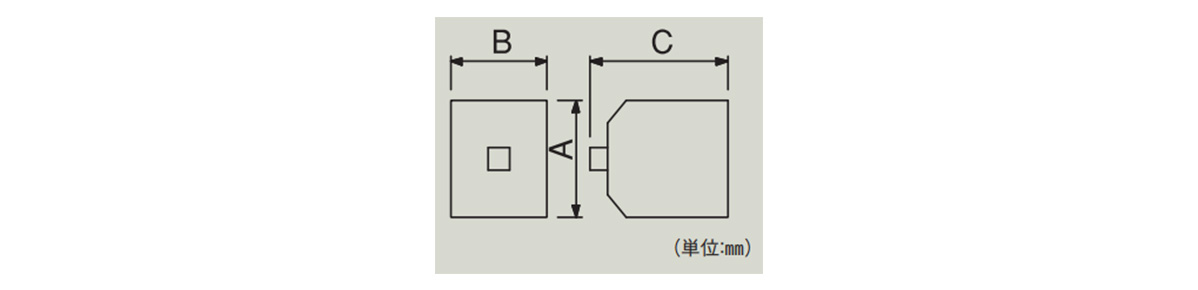

Outline drawing

Outline drawing

Type NameNon-ReversibleS-T10S-T21S-T25S-T32
Rated Operating Current (A)
AC-3 Class		200 To 220 V11202632
380 To 440 V7202532
500 To 550 V6172020
Open Thermal Current lth (A)20323232
Auxiliary Contact ConfigurationNon-ReversibleStandard1a2a2b2a2b-
Special1b---
Size (Unit: mm)Non-ReversibleA75818181
B36636343
C78818181
  • Mountable on IEC 35 mm rail.
  • Auxiliary power contactor front clip-on, auxiliary power contactor mounted on side, and surge absorber can be mounted (options).
Type NameNon-ReversibleS-T35S-T50S-T65S-T80S-T100
Rated Operating Current (A)
AC-3 Class		200 To 220 V35506580100
380 To 440 V3248658093
500 To 550 V2638457575
Open Thermal Current lth (A)6080100120150
Auxiliary Contact ConfigurationNon-ReversibleStandard2a2b2a2b2a2b2a2b2a2b
Special-----
Size (Unit: mm)Non-ReversibleA89106124
B7588100
C91106127
  • Mountable on IEC 35 mm rail (excluding T100).
  • Auxiliary power contactor front clip-on (excluding T100), auxiliary power contactor mounted on side, and surge absorber can be mounted (excluding T65/80/100) (options).
30
45
60
  1. 1
Part Number
S-T10 AC100V 1A
S-T10 AC100V 1B
S-T10 AC200V 1A
S-T10 AC200V 1B
S-T12 AC200V 1A1B
S-T12 AC200V 2A
S-T12BC AC200V 1A1B
S-T20 AC200V
S-T20BC AC100V
S-T20BC AC200V
S-T21 AC100V
S-T21 AC200V
S-T25 AC100V
S-T25 AC200V
S-T25BC AC200V
S-T32 AC100V
S-T32 AC200V
S-T35 AC100V
S-T35 AC200V
S-T35BC AC100V
S-T35BC AC200V
S-T35BCSA AC100V
S-T35BCSA AC200V
S-T35SA AC100V
S-T35SA AC200V
S-T50 AC100V 2A2B
S-T50 AC200V
S-T50 AC400V
S-T50BC AC100V
S-T50BC AC200V
S-T50BCSA AC100V
S-T50BCSA AC200V
S-T50SA AC100V
S-T50SA AC200V
S-T65 AC100V
S-T65 AC200V
S-T65 AC400V
S-T80 AC100V
S-T80 AC200V
S-T80 AC400V
S-T100 AC100V
S-T100 AC200V
S-T100 AC400V
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipOperating Method Coil rated voltage
(V) 		Auxiliary Contact Representative Standard Dimension length
(mm) 		Dimension width
(mm) 		Dimension thickness
(mm) 		Specifications Finger protection/terminal cover Mechanical opening and closing durability
(x10K times) 		Specifications Frame Size Rated insulation voltage
(V) 		Rate Impulse voltage resistant
(kV) 		Rated Frequency
(Hz) 		Rated current used Three-phase box motor (AC-3) AC 200 to 220 V
(A) 		Rated current used Three-phase box motor (AC-3) AC 380 to 440V
(A) 		Rated current used Three-phase box motor (AC-3) AC 500 to 550V
(A) 		Product Type Note

MYR 157.85

1 Piece(s) Quote Irreversible typeAC100V1aCE / UL / CUL / TUV / CCC / CSA753678Alternating Current OperationStandard Equipment1000-T10690650/601176No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC100V1bCE / UL / CUL / TUV / CCC / CSA753678Alternating Current OperationStandard Form1000-T10690650/601176No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC200V1aCE / UL / CUL / TUV / CCC / CSA753678Alternating Current OperationStandard Equipment1000-T10690650/601176No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC200V1bCE / UL / CUL / TUV / CCC / CSA753678Alternating Current OperationStandard Form1000-T10690650/601176No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC200V1a1bCE / UL / CUL / TUV / CCC / CSA754378Alternating Current Operation-1000-T12690650/601399No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC200V2aCE / UL / CUL / TUV / CCC / CSA754378Alternating Current Operation-1000-T12690650/601399No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC200V1a1bCE / UL / CUL / TUV / CCC / CSA754378Alternating Current Operation-1000-T12690650/601399No thermal relayIEC35mm rail mount possible

MYR 227.51

1 Piece(s) Quote Irreversible typeAC200V1a1bCE / UL / CUL / TUV / CCC / CSA754378Alternating Current Operation-1000-T20---181817--

-

1 Piece(s) Quote Irreversible typeAC100V2a2bCE / UL / CUL / TUV / CCC / CSA754378Alternating Current Operation-1000-T20---181817--

-

1 Piece(s) Quote Irreversible typeAC200V2a2bCE / UL / CUL / TUV / CCC / CSA754378Alternating Current Operation-1000-T20---181817--

-

1 Piece(s) Quote Irreversible typeAC100V2a2bCE / UL / CUL / TUV / CCC / CSA816381Alternating Current OperationStandard Form1000-T21690650/60202017No thermal relayIEC35mm rail mount possible

MYR 249.96

1 Piece(s) 11 Day(s) Irreversible typeAC200V2a2bCE / UL / CUL / TUV / CCC / CSA816381Alternating Current OperationStandard Equipment1000-T21690650/60202017No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC100V2a2bCE / UL / CUL / TUV / CCC / CSA816381Alternating Current OperationStandard Form1000-T25690650/60262520No thermal relayIEC35mm rail mount possible

MYR 328.65

1 Piece(s) 8 Day(s) Irreversible typeAC200V2a2bCE / UL / CUL / TUV / CCC / CSA816381Alternating Current OperationStandard Equipment1000-T25690650/60262520No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC200V2a2bCE / UL / CUL / TUV / CCC / CSA816381Alternating Current Operation-1000-T25690650/60303030No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC100V1aCE / UL / CUL / TUV / CCC / CSA814381Alternating Current OperationStandard Form1000-T32690650/60323220No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC200V-CE / UL / CUL / TUV / CCC / CSA814381Alternating Current OperationStandard Form1000-T32690650/60323220No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC100V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationStandard Form1000-T35690650/60353226No thermal relayIEC35mm rail mount possible

MYR 429.78

1 Piece(s) 15 Day(s) Irreversible typeAC200V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationStandard Equipment1000-T35690650/60353226No thermal relayIEC35mm rail mount possible

MYR 354.85

1 Piece(s) Quote Irreversible typeAC100V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationWith wiring rationalizing terminal1000-T35690650/60353226No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC200V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationWith wiring rationalizing terminal1000-T35690650/60353226No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC100V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationWith wiring rationalizing terminal1000Surge absorber mounted typeT35690650/60353226No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC200V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationWith wiring rationalizing terminal1000Surge absorber mounted typeT35690650/60353226No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC100V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationStandard Form1000Surge absorber mounted typeT35690650/60353226No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC200V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationStandard Form1000Surge absorber mounted typeT35690650/60353226No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC100V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationStandard Form1000-T50690650/60504838No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC200V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationStandard Form1000-T50690650/60504838No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC400V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationStandard Form1000-T50690650/60504838No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC100V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationWith wiring rationalizing terminal1000-T50690650/60504838No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC200V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationWith wiring rationalizing terminal1000-T50690650/60504838No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC100V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationWith wiring rationalizing terminal1000Surge absorber mounted typeT50690650/60504838No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC200V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationWith wiring rationalizing terminal1000Surge absorber mounted typeT50690650/60504838No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC100V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationStandard Form1000Surge absorber mounted typeT50690650/60504838No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC200V2a2bCE / UL / CUL / TUV / CCC / CSA897591Alternating Current OperationStandard Form1000Surge absorber mounted typeT50690650/60504838No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC100V2a2bCE / UL / CUL / TUV / CCC / CSA10688106Alternating Current OperationNA500-T65690650/60656545No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC200V2a2bCE / UL / CUL / TUV / CCC / CSA10688106Alternating Current OperationNA500-T65690650/60656545No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC400V2a2bCE / UL / CUL / TUV / CCC / CSA10688106Alternating Current OperationNA500-T65690650/60656545No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC100V2a2bCE / UL / CUL / TUV / CCC / CSA10688106Alternating Current OperationNA500-T80690650/60808075No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC200V2a2bCE / UL / CUL / TUV / CCC / CSA10688106Alternating Current OperationNA500-T80690650/60808075No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC400V2a2bCE / UL / CUL / TUV / CCC / CSA10688106Alternating Current OperationNA500-T80690650/60808075No thermal relayIEC35mm rail mount possible

-

1 Piece(s) Quote Irreversible typeAC100V2a2bCE / UL / CUL / TUV / CCC / CSA124100127Alternating Current OperationNA500-T100690650/601009375No thermal relay-

-

1 Piece(s) Quote Irreversible typeAC200V2a2bCE / UL / CUL / TUV / CCC / CSA124100127Alternating Current OperationNA500-T100690650/601009375No thermal relay-

-

1 Piece(s) Quote Irreversible typeAC400V2a2bCE / UL / CUL / TUV / CCC / CSA124100127Alternating Current OperationNA500-T100690650/601009375No thermal relay-
