Selector Switches（Mounting Hole：Other）

The selector switch is a switch whose operation can be switched by turning the knob. The general mounting method of the selector switch is to make a mounting hole in the panel etc. and fix the switch body with the knob removed with the insertion ring. Press-fit the knob into it. Depending on the product, the diameter of the mounting hole is about ø10 to ø30, and some products require a square hole. The shape of the knob that comes out of the panel can be selected from round, square and rectangular. The number of notches is mostly about 2 to 5, the notch angle varies from 30 degrees to 90 degrees, and the operation method is divided into each position stop type and return type. The terminal shape can be selected from screw terminal, insertion terminal, solder terminal, etc. depending on the product.

10 items

: 30; 45; 60

Days to Ship	All 2 Day(s) or Less 4 Day(s) or Less 5 Day(s) or Less 6 Day(s) or Less 9 Day(s) or Less 12 Day(s) or Less 13 Day(s) or Less 17 Day(s) or Less 23 Day(s) or Less 24 Day(s) or Less

φ22 mm Selector Switch (Non-illumination Type) A22NS Series

OMRON

φ22 mm selector switch. Helps miniaturize control panels with shortened body length and changed wiring direction.
Easy wiring Push-in Plus terminal block type is now available.

[Workability]
· The wiring direction is changed to improve the visibility of wires (Push-in Plus terminal block type)
· Terminal screw hold-on structure (screw terminal block type) that supports round crimp terminal
· Terminals can be additionally tightened even when switch units are stacked together (screw terminal block type)
[Miniaturization]
· The wiring direction is changed so lateral space is not required (Push-in Plus terminal block type)
· Short Body Design
[Safety]
· It uses a lock lever mechanism that can be reliably and easily operated
· The finger protective structure provides high safety
· The wiring will not loosen and is therefore maintenance-free (Push-in Plus terminal block type)
[Product Lineup]
· Safety standard / voltage specification as a global product
· Can be installed on two panel processing dimensions of φ22.3 and φ25.5
· The buttons and bezels are available in abundant colors, shapes and materials
· Conforms to IP66 and NEMA 4X/13 for protective structure

Standard Price:	MYR 39.11-
Days to Ship:	2 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

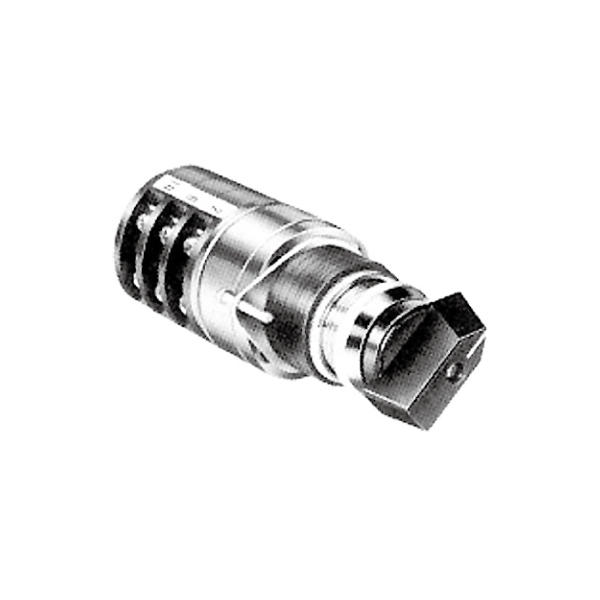

ø25/ø30 CS Series Cam Switches

IDEC

A full line of 71 standard circuits. Shaftless type.

Standard Price:	MYR 227.69-
Days to Ship:	5 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Control Unit, Cam Switch

IDEC

[Features]
· A full set of 25 standard circuits.
· Combine cams with stacking contact blocks to support any type of contact configuration.
· 4 types of replaceable handles.

Standard Price:	MYR 583.07-
Days to Ship:	5 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

LB Series Flash Silhouette Switch, Keyed Selector Switch

IDEC

LB series flash silhouette keyed selector switch.

[Features]
· Detached, short-depth type (2 mm panel height, 34.9 mm panel depth) suited for one-board solutions.
· Up to 3 contacts for push button switches, selector switches, and keyed selector switches.
· Keyed selector switches use wave-type keys for difficult copying.
· 7 types of different key numbers.
· 2 bezel colors: black and metallic.
· Bright, clearly-lit LED light.
· Gold cladding, crossbar contacts, and high capacity.
· Silver contacts used.
· IP65 anti-spray protective construction (IEC60529).
· UL/CSA/TÜV/CCC applications filed.

Standard Price:	MYR 201.31
Days to Ship:	5 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

LB Series Flash Silhouette Switch, Selector Switch

IDEC

LB series flash silhouette selector switch.

[Features]
· Detached, short-depth type (2 mm front panel height, 34.9 mm panel depth) suited for one-board solutions.
· Up to 3 contacts for push button switches, selector switches, and keyed selector switches.
· Keyed selector switches use wave-type keys for difficult copying.
· 7 types of different key numbers.
· 2 bezel colors: black and metallic.
· Bright, clearly-lit LED light.
· Gold cladding, crossbar contacts, high capacity, and silver contacts used.
· IP65 anti-spray protective construction (IEC60529).
· UL/CSA/TÜV/CCC applications filed.

Standard Price:	MYR 150.16-
Days to Ship:	5 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

φ22 mm Key Type Selector Switch A22NK Series

OMRON

φ22 mm key type selector switch. Helps miniaturize control panels with shortened body length and changed wiring direction.
Easy wiring Push-in Plus terminal block type is now available.

[Workability]
· Three switch units can be mounted on one stage and multi-stage expansion is possible
· Terminal screw hold-on structure (screw terminal block type) that supports round crimp terminal
· Terminals can be additionally tightened even when switch units are stacked together (screw terminal block type)
· Directionality of the switch unit is eliminated to facilitate assembly
[Miniaturization]
· The wiring direction is changed so lateral space is not required (Push-in Plus terminal block type)
· Short Body Design
[Safety]
· It uses a lock lever mechanism that can be reliably and easily operated
· The finger protective structure provides high safety
· The wiring will not loosen and is therefore maintenance-free (Push-in Plus terminal block type)
[Product Lineup]
· Safety standard / voltage specification as a global product
· Can be installed on two panel processing dimensions of φ22.3 and φ25.5
· The buttons and bezels are available in abundant colors, shapes and materials
· Conforms to IP66 and NEMA 13 for protective structure

Standard Price:	MYR 73.02-
Days to Ship:	5 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

φ22 mm Selector Switch (Illumination Type) A22NW Series

OMRON

φ22 mm selector switch. Helps miniaturize control panels with shortened body length and changed wiring direction.
Easy wiring Push-in Plus terminal block type is now available.

[Workability]
· The wiring direction is changed to improve the visibility of wires (Push-in Plus terminal block type)
· Terminal screw hold-on structure (screw terminal block type) that supports round crimp terminal
· Terminals can be additionally tightened even when switch units are stacked together (screw terminal block type)
[Miniaturization]
· The wiring direction is changed so lateral space is not required (Push-in Plus terminal block type)
· Short Body Design
· Same size as A22NW (illuminated type) and A22NS (non-illuminated type)
[Safety]
· It uses a lock lever mechanism that can be reliably and easily operated
· The finger protective structure provides high safety
· The wiring will not loosen and is therefore maintenance-free (Push-in Plus terminal block type)
[Product Lineup]
· Safety standard / voltage specification as a global product
· Can be installed on two panel processing dimensions of φ22.3 and φ25.5
· The buttons and bezels are available in abundant colors, shapes and materials
· Conforms to IP66 and NEMA 4X/13 for protective structure

Standard Price:	MYR 84.03-
Days to Ship:	5 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

φ30 mm Key Type Selector Switch A30NK Series

OMRON

φ30 mm key type selector switch. Helps miniaturize control panels with shortened body length and changed wiring direction.
Easy wiring Push-in Plus terminal block type is now available. Workability and safety have been improved.

[Workability]
· Three switch units can be mounted on one stage and multi-stage expansion is possible (screw terminal block type)
· Terminal screw hold-on structure (screw terminal block type) that supports round crimp terminal
· Terminals can be additionally tightened even when switch units are stacked together (screw terminal block type)
· Directionality of the switch unit is eliminated to facilitate assembly
[Safety]
· It uses a lock lever mechanism that can be reliably and easily operated
· The finger protective structure provides high safety
· The wiring will not loosen and is therefore maintenance-free (Push-in Plus terminal block type)
[Product Lineup]
· The buttons and bezels are available in abundant colors and shapes

Standard Price:	MYR 84.96-
Days to Ship:	5 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

φ30 mm Selector Switch (Non-illumination Type) A30NS Series

OMRON

φ30 mm selector switch. Helps miniaturize control panels with shortened body length and changed wiring direction.
Easy wiring Push-in Plus terminal block type is now available. Workability and safety have been improved.

[Workability]
· Three switch units can be mounted on one stage and multi-stage expansion is possible (screw terminal block type)
· Terminal screw hold-on structure (screw terminal block type) that supports round crimp terminal
[Safety]
· It uses a lock lever mechanism that can be reliably and easily operated
· The finger protective structure provides high safety
The wiring will not loosen and is therefore maintenance-free (Push-in Plus terminal block type)
[Product Lineup]
· The buttons and bezels are available in abundant colors and shapes

Standard Price:	MYR 50.46-
Days to Ship:	5 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

φ30 mm Selector Switch (Illumination Type) A30NW Series

OMRON

φ30 mm selector switch. Helps miniaturize control panels with shortened body length and changed wiring direction.
Easy wiring Push-in Plus terminal block type is now available. Workability and safety have been improved.

[Workability]
· Three switch units can be mounted on one stage and multi-stage expansion is possible (screw terminal block type)
· Terminal screw hold-on structure (screw terminal block type) that supports round crimp terminal
[Safety]
· It uses a lock lever mechanism that can be reliably and easily operated
· The finger protective structure provides high safety
· The wiring will not loosen and is therefore maintenance-free (Push-in Plus terminal block type)
[Product Lineup]
· The buttons and bezels are available in abundant colors and shapes

Standard Price:	MYR 95.52-
Days to Ship:	5 Day(s) or more

"Same Day Ship Out" is available for item with 1 day


Brand
Product Series
Days to Ship
Mounting Hole
Type
Notch number
Contact configuration (key lock, selector)
Shape
With key
Illumination
Suspend/Return
Representative Standard
Terminal shape
Protection function (environmentally resistant)
Dimension vertical(mm)
Dimension width(mm)
Dimension depth(mm)


Brand	OMRON	IDEC	IDEC	IDEC	IDEC	OMRON	OMRON	OMRON	OMRON	OMRON
Product Series	φ22 mm Selector Switch (Non-illumination Type) A22NS Series	ø25/ø30 CS Series Cam Switches	Control Unit, Cam Switch	LB Series Flash Silhouette Switch, Keyed Selector Switch	LB Series Flash Silhouette Switch, Selector Switch	φ22 mm Key Type Selector Switch A22NK Series	φ22 mm Selector Switch (Illumination Type) A22NW Series	φ30 mm Key Type Selector Switch A30NK Series	φ30 mm Selector Switch (Non-illumination Type) A30NS Series	φ30 mm Selector Switch (Illumination Type) A30NW Series
Days to Ship	2 Day(s) or more	5 Day(s) or more	5 Day(s) or more	5 Day(s) or more	5 Day(s) or more	5 Day(s) or more	5 Day(s) or more	5 Day(s) or more	5 Day(s) or more	5 Day(s) or more
Mounting Hole	Other	Other	Other	Other	Other	Other	Other	Other	Other	Other
Type	Selector	Selector	Selector	Keylock switch	Selector	Keylock switch	Selector	Keylock switch	Selector	Selector
Notch number	2 / 3	2 / 3 / 4 / Other	3 / 5 / Other	2	2 / 3	2 / 3	2 / 3	2 / 3	2 / 3	2 / 3
Contact configuration (key lock, selector)	1a / 2a / 1a1b / Other	-	-	2c	1c / 2c / Other	1a / 2a / 1a1b / Other	1a / 2a / 1a1b / Other	1a / 2a / 1a1b / Other	1a / 2a / 1a1b / Other	1a / 2a / 1a1b / Other
Shape	Round	Rectangular shape	Round	Round	Rectangular shape / Round	Round	Round	Round	Round	Round
With key	NA	NA	NA	Available	NA	Available	NA	Available	NA	NA
Illumination	NA	NA	NA	NA	NA	NA	Available	NA	NA	Available
Suspend/Return	Suspend / Return	Suspend / Return	Suspend	Suspend	Suspend	Suspend / Return	Suspend / Return	Suspend / Return	Suspend / Return	Suspend / Return
Representative Standard	CE / UL / CUL / TUV / CCC / CSA	-	-	CE / UL / TUV / CSA	CE / UL / TUV / CSA	CE / UL / CUL / TUV / CCC / CSA	CE / UL / CUL / TUV / CCC / CSA	CE / UL / CUL / TUV / CCC / CSA	CE / UL / CUL / TUV / CCC / CSA	CE / UL / CUL / TUV / CCC / CSA
Terminal shape	Screw terminal / Insertion Terminal	Screw terminal	-	Solder terminal/tab terminal	Solder terminal/tab terminal	Screw terminal / Insertion Terminal	Screw terminal / Insertion Terminal	Screw terminal / Insertion Terminal	Screw terminal / Insertion Terminal	Screw terminal / Insertion Terminal
Protection function (environmentally resistant)	Available	Available	-	Available	Available	Available	Available	Available	Available	Available
Dimension vertical(mm)	47 ～ 47.6	70	61	22	22	47 ～ 47.6	47 ～ 47.6	47 ～ 47.6	47 ～ 47.6	47 ～ 47.6
Dimension width(mm)	30	70	49	22	22 ～ 23	30	30	34.7	34.7	34.7
Dimension depth(mm)	63.7 ～ 69.5	85.3 ～ 129.3	122 ～ 146	36.9	43.4	58.3 ～ 64.1	63.7 ～ 69.5	58.3 ～ 64.1	63.7 ～ 69.5	63.7 ～ 69.5
