Terminal Blocks for Circuit Boards

Board terminal blocks are components used to electrically connect printed circuit boards. There are different types of terminal blocks, such as plug-in ends, tab ends, freestanding terminals, etc. There are various ways to mount the terminal block, including direct mounting, DIN rail mounting that can be mounted on the DIN rail with a single-action, PCBs that are fixed by soldering or connected by inserting cables, etc. For connection methods there are differences such as screws, screwless, etc. Many terminal blocks are screw terminals that fix mounting holes by processing the holes and binding the cables with screws. The connection direction is also straight or L-shaped, so it is necessary to select it depending on the connection location. Some products offer excellent stability while others are space-saving.

9 items

: 30; 45; 60

Days to Ship	All 2 Day(s) or Less 3 Day(s) or Less 4 Day(s) or Less 5 Day(s) or Less 6 Day(s) or Less 8 Day(s) or Less 9 Day(s) or Less 13 Day(s) or Less 18 Day(s) or Less

Terminal block XW4 series for printed circuit boards.

OMRON

A terminal block for PCBs that is ideal for interfaces to control equipment.
[Features]
Push-in type
・ 3.5-mm, 5.0-mm pitch terminal block
・ With single wire / pin terminal, you can easily connect by simply inserting the cable
・ Stranded wire can be easily connected with a general screwdriver
Thread type
・ 3.81-mm, 5.08-mm pitch terminal block
・ The connection terminal thread section has a finger protection structure
・ Connection is possible without crimp terminals
・ Adoption of a unique cable crimp structure that does not directly apply force to the circuit board soldering part

Standard Price:	MYR 4.00-
Days to Ship:	2 Day(s)

"Same Day Ship Out" is available for item with 1 day

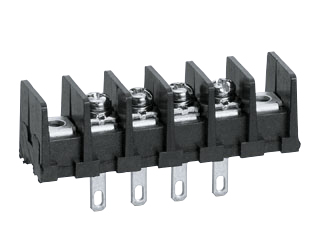

BTBH Series Fixed Terminal Block

IDEC

[Features]
· A sturdy fixed type terminal block with between 2 and 30 poles.
· Touch down types for less wiring work are also available.
· Self-up (BTB series) and touch down types (BTBH series) also available.
· Made using high flame retardancy UL certified resin (UL94V-0).
· Also boasts excellent impact/shock resistance.
· Has a structure for fitting between units. All poles are sturdy structures which are fixed using two bolts.
· The mark sheet is a wide size with a width of 9.5 mm.
· Complies with JISC2811 "Terminal Block for Industrial Use" standards.
· A UL and CSA certified product. Conforms to EN standards (TUV certified).

Standard Price:	MYR 26.11-
Days to Ship:	4 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

BA Series Terminal Block

BA Series Terminal Block【1-50 Pieces Per Package】

IDEC

A quick mounting terminal block which mounts to DIN 35 mm wide rails in a single-action. For 16A to 400A (600V).

[Features]
· The BA terminal block is a quick mounting terminal block that can be mounted or removed in a single-action and on any position on a rail.
· Can be attached to 35 mm wide DIN rails.
· Available in a wide variety of current capacities; from 16A to 400A.
· In each case, the rated insulation voltage is 600V.
· No end plate types required.
· Convenient three pole types, types with fuses, or types with disconnection functionality are also available.
· Is both tough and flame-retardant (self-extinguishing) (UL94-V2).
· The large capacity type (BA811S and BA911S) can be directly mounted to panels.
· The main body is made of polyamide resin (black).

Standard Price:	MYR 15.87-
Days to Ship:	3 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

ML-1700-A Series

SATOPARTS

[Features]
・ Screwless relay terminal
・ 2-wire connection per position, stable fixing is possible by flanges at both ends
・ Made in Japan

Standard Price:	MYR 19.27
Days to Ship:	8 Day(s)

"Same Day Ship Out" is available for item with 1 day

BTB Series Fixed Terminal Block

IDEC

Standard Price:	MYR 17.11-
Days to Ship:	4 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

ML-40-S1AXF Series

SATOPARTS

[Features]
・ It is a through-type terminal block with 110 tab terminals for dual soldering-use
・ M3 square washer screw mounting
・ UL, CSA standard product, made in Japan

Standard Price:	MYR 44.93
Days to Ship:	9 Day(s)

"Same Day Ship Out" is available for item with 1 day

Terminals For Adjustment Parts/HOS

HIROSUGI-KEIKI

Pin
[Material] Phosphor bronze (C5191)
[Treatment] Gold plating (nickel substrate)
Stand
[Material] PBT (contains 30% glass fiber)
[Colors] 6 colors
[Thermal Deformation Temperature] 1.82 MPa, 200°C (solder resistance)
[UL Standard] UL94V-0 (Material)

Standard Price:	MYR 2.36
Days to Ship:	18 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Terminals For Adjustment Parts/HOV

HIROSUGI-KEIKI

Standard Price:	MYR 2.28
Days to Ship:	18 Day(s) or more

"Same Day Ship Out" is available for item with 1 day

Check Terminal (For Logic Circuits)/HT

HIROSUGI-KEIKI

[Materials]Free-cutting brass (C3604BD), cadmium content less than 75 ppm
[Finish]Gold plating 0.1 μ (Nickel base 2 μ)
[Features]
・ Check terminal (For logic circuit)

Standard Price:	MYR 0.84-
Days to Ship:	18 Day(s) or more

"Same Day Ship Out" is available for item with 1 day


Brand
Product Series
Days to Ship
Wiring Method
Mounting Method
Parts/Completed products
Number of Poles(Pole)
Screw Size
Number of input/outputs
Rated current (JIS)(A)
Rated current (VDE)(A)
Rated current (IEC)(A)
Rated current (UL)(A)


Brand	OMRON	IDEC	IDEC	SATOPARTS	IDEC	SATOPARTS	HIROSUGI-KEIKI	HIROSUGI-KEIKI	HIROSUGI-KEIKI
Product Series	Terminal block XW4 series for printed circuit boards.	BTBH Series Fixed Terminal Block	BA Series Terminal Block【1-50 Pieces Per Package】	ML-1700-A Series	BTB Series Fixed Terminal Block	ML-40-S1AXF Series	Terminals For Adjustment Parts/HOS	Terminals For Adjustment Parts/HOV	Check Terminal (For Logic Circuits)/HT
Days to Ship	2 Day(s)	4 Day(s) or more	3 Day(s) or more	8 Day(s)	4 Day(s) or more	9 Day(s)	18 Day(s) or more	18 Day(s) or more	18 Day(s) or more
Wiring Method	Screw / Other	Screw	-	Screwless	Screw	Screw	Screwless	Screwless	Screwless
Mounting Method	PCB / Other	Direct attachment	DIN rail mount / DIN/Direct attachment	Direct attachment	Direct attachment	Other	-	-	-
Parts/Completed products	Assembled product	Assembled product	-	Assembled product	Assembled product	Assembled product	-	-	-
Number of Poles(Pole)	2 ～ 10	4 ～ 20	1	2	2 ～ 23	10	-	-	-
Screw Size	Other	M3 ～ M3.5	M3 ～ M12	-	M3 ～ M5	M3	-	-	-
Number of input/outputs	-	1 to 1	-	1 to 1	1 to 1	1 to 1	-	-	-
Rated current (JIS)(A)	-	16 ～ 21	10 ～ 370	10	16 ～ 70	10	-	-	-
Rated current (VDE)(A)	8 ～ 17.5	-	-	-	-	-	-	-	-
Rated current (IEC)(A)	8 ～ 17.5	-	-	-	22 ～ 67	-	-	-	-
Rated current (UL)(A)	8 ～ 16	10 ～ 15	-	10	10 ～ 50	10	-	-	-
