Interface Terminal Blocks (Round/Y Terminal Types)
| Days to Ship |
|
|---|
-

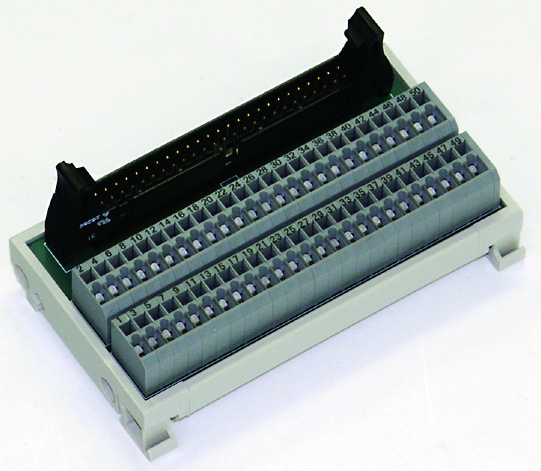

FANUC Operation Board I/O Connector Terminal Block for FANUC Control
WAGO
[Features]
● Pins no. 47 to 50 are common. Ideal for FANUC operations board I/O.
● Increased wiring efficiency. Power supply horizontal pass is possible
● Space saving. 50 pole 3.5 mm terminal block.
● A size that allows for it to be inserted even into tight spaces. Designed so as not to be too tall.Standard Price: MYR 397.26 Days to Ship: 10 Day(s) or more -
MWS Series (Spring-Loaded), Compatible Crimp Terminals Y terminal/Round terminal
MISUMI
A 34-position MIL connector terminal block equipped with a KV-Nano series name plate that reduces work labor-hours thanks to its spring-loaded structure, allowing lower stage wiring without upper stage terminal wiring getting in the way.
- Volume Discount
- Connection in Boards
- Space-saving
- PLC
- 125 V
- CAD ：
- 2D
Standard Price: MYR 95.44- Days to Ship: 1 Day(s) or more -
TOYOGIKEN
[Features]
· The width of the main body is 40 mm in comparison to a DIN rail width of 35 mm.
· Boasts an even slimmer finish.
· The terminal block and connector are connected on the circuit board, helping prevent mis-wiring.
· The terminal number and connector number are wired 1-to-1.
· Circuits can be freely designed.
· Improves workability when using new screw types.
· If using a fork type terminal, the PCN series is without doubt the most effective option.
· A lever type which enables neat and tidy removal from rails.
· No tools required for removal, and so no need for wasted space on the backside of the main body.
· Compatible with both rail mounting and direct mounting.- CAD ：
- 2D
Standard Price: MYR 167.95- Days to Ship: 2 Day(s) or more -
IM Series IM-M/IMF MIL/FCN Connector Terminal Block for Control Panels
WAGO
[Features]
● Simple to use. 1-to-1 circuit
● Industry standard. Connector: MIL, FCN (AMP)
● Wide product lineup. Terminal blocks with a pitch of 3.5 mm or 5 mm
● New to the product lineup. The "-KV" for KEYENCE PLC CPUs is also available
● Improved reliability. Features a cage clamp connection that is strong against vibration.Standard Price: MYR 187.76- Days to Ship: 4 Day(s) or more -
PX7DW Series (terminal pitch: 7.62mm)
YOSHIDADENKI
Self-up type screw MIL connector type terminal block
Standard Price: MYR 153.95- Days to Ship: 4 Day(s) or more -
PLC Connector Terminal Block (for Mitsubishi Electric PLC, Input/Output), Weight: 150 g
MISUMI
This is a PLC connector terminal block compatible with Mitsubishi Electric PLC circuits, greatly reducing wiring labor-hours and allowing lower stage wiring without upper stage terminal wiring getting in the way.
- Volume Discount
- Connection in Boards
- Space-saving
- PLC
- 125 V
Standard Price: MYR 212.22 Days to Ship: 4 Day(s) or more -
Connector Terminal Block for Control Panels, PM-32 Series
WAGO
[Features]
● Proven results. A best selling connector terminal block.
● For smaller control panels. An ultra-small connector terminal block with a horizontal width of just 77 mm.
● For reducing mis-wiring. Even if the PLC changes, the signal and common terminal block placement remain the same. The signal and common terminal blocks are colored for easier differentiation.
● For reducing the amount of wiring required. With common terminal blocks, power can be passed horizontally to adjacent poles.
● Improved reliability. Uses a cage clamp mechanism so as to prevent wires from becoming loose.
● For using fewer parts. No stopper required for aluminum DIN railsStandard Price: MYR 276.57- Days to Ship: 4 Day(s) or more -
PLC Connector Terminal Block (for OMRON PLC, Output), Mounting Method: DIN Rail / Direct Mount
MISUMI
This is a PLC connector terminal block for output compatible with OMRON PLC circuits, greatly reducing wiring labor-hours and allowing lower stage wiring without upper stage terminal wiring getting in the way.
- Volume Discount
- Connection in Boards
- Space-saving
- PLC
- 125 V
- CAD ：
- 2D
Standard Price: MYR 201.10- Days to Ship: 4 Day(s) or more -
RJ-45 Connector Terminal Block
MISUMI
[Specifications]·A connector terminal block with RJ-45 connector · Effective for developing small communication devices
- Volume Discount
Standard Price: MYR 348.12 Days to Ship: 8 Day(s) or more -
Connector Terminal Block Conversion Unit XW2R (PLC Connection Type)
OMRON
Connector terminal block conversion units designed specifically to connect PLCs.
[Features]
・ The wiring pattern specialized for PLC connection has reduced the trouble of checking the signal layout
・ The name paper of the terminal block will be the PLC address
・ Connection method is cross-head screw type, straight-slot screw type, push-in type
・ Available with and without power supply terminal
・ The operability of the push-in terminal has been improved, making it even easier to use
・ Connection work has become smoother with a terminal arrangement that takes workability into consideration
・ It can be mounted with DIN rail and screws
・ With a common design, it can be customized
・ The ribs for screw mounting are designed to dive into the DIN rail so that they do not interfere with DIN rail mounting parts or end plates
・ Of course, even if XW2Rs are connected to each other, they will be placed without any interference
[Applications]
・ Convert various input devices such as sensors into connectors and use them for PLC inputStandard Price: MYR 131.26- Days to Ship: 5 Day(s) or more -
Standard Price: MYR 484.20- Days to Ship: 5 Day(s) or more -
IM-DSF Dsub Female Connector Terminal Block for Control Panels
WAGO
[Features]
● Simple to use. 1-to-1 circuit
● A wide range of wire connections. A 5 mm pitch terminal block.
● Industry standard. An international standard Dsub connector.
● For large current applications. Convenient for 3 A energizing
● Ideal for EMC audits, etc. Equipped with a shield terminal block.Standard Price: MYR 276.73- Days to Ship: 4 Day(s) or more -
MWI Series (Upper/Lower Division)
MISUMI
[Specifications]·A terminal block with MIL socket connectors wired separately in the upper and lower stages
- Volume Discount
- UL
- Connection in Boards
- Space-saving
- Sensor
- PLC
- 125 V
- CAD ：
- 2D
Standard Price: MYR 250.52- Days to Ship: 4 Day(s) or more -
PLC Connector Terminal Block (for Mitsubishi Electric, Input/Output) FCN/MIL
MISUMI
A spring-loaded terminal block that can be directly connected to the circuit of a Mitsubishi Electric PLC. It is an input/output PLC connector terminal block allowing lower stage wiring without upper stage terminal wiring getting in the way.
- Volume Discount
- Connection in Boards
- Space-saving
- PLC
- 125 V
- CAD ：
- 2D
Standard Price: MYR 145.37- Days to Ship: 2 Day(s) or more -
MWS Series (Spring-Loaded), Terminal Block Screw Type: Spring-Loaded
MISUMI
A terminal block equipped with a Centronics connector that reduces work labor-hours thanks to its spring-loaded structure, allowing lower stage wiring without upper stage terminal wiring getting in the way.
- Volume Discount
- For Signal
- Sensor
- 125 V
- CAD ：
- 2D
Standard Price: MYR 157.92- Days to Ship: 4 Day(s) or more -

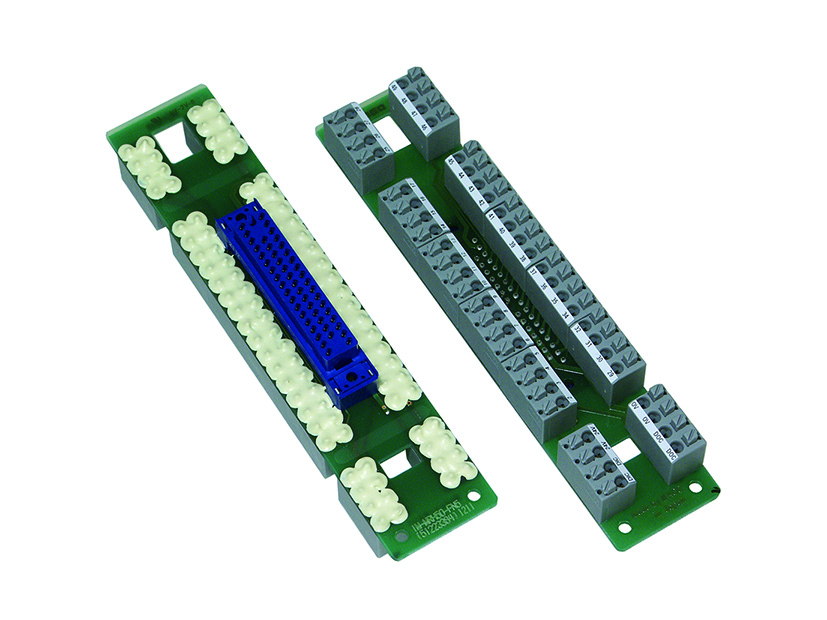

WAGO
[Features]
● Simple connection. Push-in type wire connection.
● No harness required. Direct coupling with FANUC distribution type I/O.
● Increased wiring efficiency. Power supply horizontal pass is possible
● Space saving. Slim horizontal width & common
● Shorter on-site wire connection work. Quick connect terminal block
● Ideal for when adding units or making changes. No need to develop a specialized circuit board.Standard Price: MYR 420.21 Days to Ship: 10 Day(s) or more -
PLC Connector Terminal Block (for OMRON PLC, Input)
MISUMI
A spring-loaded terminal block that can be directly connected to the circuit of an OMRON PLC. It is a PLC connector terminal block for input allowing lower stage wiring without upper stage terminal wiring getting in the way.
- Volume Discount
- Connection in Boards
- Space-saving
- PLC
- 125 V
- CAD ：
- 2D
Standard Price: MYR 145.37 Days to Ship: 4 Day(s) or more -
PLC Connector Terminal Block (for OMRON PLC, Output)
MISUMI
A spring-loaded terminal block that can be directly connected to the circuit of an OMRON PLC. It is a PLC connector terminal block for output allowing lower stage wiring without upper stage terminal wiring getting in the way.
- Volume Discount
- Connection in Boards
- Space-saving
- PLC
- 125 V
- CAD ：
- 2D
Standard Price: MYR 145.37 Days to Ship: 4 Day(s) or more -
MWS Series (Spring-Loaded), Mounting Method: DIN Rail / Direct Mount
MISUMI
A terminal block equipped with an FCN 40-core connector that reduces work labor-hours thanks to its spring-loaded structure, allowing lower stage wiring without upper stage terminal wiring getting in the way.
- Volume Discount
- Connection in Boards
- Space-saving
- PLC
- 125 V
Standard Price: MYR 183.68 Days to Ship: 4 Day(s) or more -
MWS Series (Spring-Loaded), for Both DIN Rail and Screw Mounting
MISUMI
A terminal block equipped with a D-sub connector that reduces work labor-hours thanks to its spring-loaded structure, allowing lower stage wiring without upper stage terminal wiring getting in the way.
- Volume Discount
- Connection in Boards
- Space-saving
- PLC
- CAD ：
- 2D
Standard Price: MYR 133.81- Days to Ship: 2 Day(s) or more -
MWS Series (Spring-Loaded), Compatible Crimp Terminals: Y terminal/Round terminal
MISUMI
This is a terminal block equipped with an MDR connector that is effective as a relay terminal block for AC servo motors, allowing lower stage wiring without upper stage terminal wiring getting in the way.
- Volume Discount
- AC Servo
- 125 V
Standard Price: MYR 236.48 Days to Ship: 4 Day(s) or more -
+com PLC connector terminal block (for Mitsubishi Electric input/output)
MISUMI
[New Product] 8 pole + 32 PLC signal common terminal block incorporated into a 40 pole terminal block
- Volume Discount
- Connection in Boards
- Space-saving
- PLC
- 125 V
- CAD ：
- 2D
Standard Price: MYR 179.77- Days to Ship: 4 Day(s) or more -
+comPLC connector terminal block (for Omron input, for output) MIL
MISUMI
[New Product] OMRON PLC terminal block that combines common 8 pole terminal block and 32 point terminal block
- Volume Discount
- Connection in Boards
- Space-saving
- PLC
- 125 V
- CAD ：
- 2D
Standard Price: MYR 179.77 Days to Ship: 4 Day(s) or more -
MWI Series (Terminal Pitch 7 mm), Compatible Crimp Terminals: Spade/Ring
MISUMI
A terminal block with a terminal pitch of 7 mm that can be selected from 25-core male/female and 37-core male D-sub connectors.
- Volume Discount
- For Signal
- PLC
- 125 V
- CAD ：
- 2D
Standard Price: MYR 256.75- Days to Ship: 4 Day(s) or more -
MWI Series (Terminal Pitch 7 mm), Compatible Crimp Terminals: Spade
MISUMI
This is a terminal block equipped with a MIL socket connector, allowing lower stage wiring without upper stage terminal wiring getting in the way. You can choose a machine name plate. Every 6th bulkhead shape and a triangle mark support number recognition.
- Volume Discount
- c-UL
- Space-saving
- Sensor
- PLC
- 125 V
- CAD ：
- 2D
Standard Price: MYR 142.43- Days to Ship: 1 Day(s) or more -
MISUMI
[Specifications]·A 45 mm × 55 mm space saving connector terminal block
- Volume Discount
- c-UL
- For Signal
- Space-saving
- Sensor
- PLC
Standard Price: MYR 236.86 Days to Ship: 4 Day(s) or more -
MWI Series (Upper/Lower Division)
MISUMI
Space saving with a width of 80 mm is achieved by split wiring in the upper and lower stages. The same number is used for the connector number and the terminal block name plate. Equipped with Fujitsu FCN series 40-core connector. Supports both DIN rail mounting and screw mounting.
- Volume Discount
- For Signal
- Sensor
- PLC
Standard Price: MYR 260.05 Days to Ship: 4 Day(s) or more -
MWI series (pitch between terminals 7mm), compatible equipment: servo motor
MISUMI
Centro connector-equipped terminal block with 7 mm pitch between terminals
- Volume Discount
- For Signal
- Sensor
- 125 V
- CAD ：
- 2D
Standard Price: MYR 371.74 Days to Ship: 4 Day(s) or more -
MWI series (7mm pitch between terminals), terminal block screw type: Self-up
MISUMI
MDR connector-equipped terminal block with 7 mm pitch between terminals
- Volume Discount
- AC Servo
- 125 V
- CAD ：
- 2D
Standard Price: MYR 357.93 Days to Ship: 4 Day(s) or more -
MWI Series (Pitch between terminals 8.5 mm)
MISUMI
[Specifications]·A terminal block with a PCR connector that is widely used on I/O boards.
- Volume Discount
- c-UL
- Crimp Terminal
- 125 V
- CAD ：
- 2D
Standard Price: MYR 664.54- Days to Ship: 4 Day(s) or more -
KWI Series (Pitch between terminals 7 mm)
MISUMI
[Specifications]·Low-cost, high-performance MIL connector type · General-purpose specification that pursues cost advantages while maintaining the basic functions of the MWI-series terminal block.
- Volume Discount
- Connection in Boards
- Space-saving
- PLC
- 125 V
- CAD ：
- 2D
Standard Price: MYR 144.43 Days to Ship: 4 Day(s) or more -
Interface Terminal Block (Crimp Terminal Insertion Type), TIFY Series
PATLITE (KASUGA)
Use a screwdriver to insert crimp terminals (round/Y types) or to remove wiring and wires. Release the wires by pressing the release button (labor-saving design). A compact type terminal with a pitch of just 5 mm (space saving design).
[Features]
· A clutch lock (screw-less) type with 1-to-1 wiring (screw-less type). Dedicated connection for crimp terminals.- CAD ：
- 2D
Standard Price: MYR 162.33- Days to Ship: 5 Day(s) or more -
Interface Terminal Block, Slim Type Terminal Block, 7 mm Pitch
PATLITE (KASUGA)
A 7-mm pitch interface terminal block that uses a full-cover structure that does not expose the circuit board, and is designed with safety in mind.
[Features]
・ The cover is openable and can be fixed at any position
・ Compared to the conventional TIFA7 Series, it is a series that reduces the installation space by approx. 12% pursuing further space saving
・ Standard-product connector is Hirose Electric MIL connector (Ribbon cable connector)
・ OMRON MIL connector and Fujitsu F360 series connector (input/output connector for circuit board) can also be mounted
[Applications]
・ Ideal for PLC (programmable controller) and computer interfaceStandard Price: MYR 122.99 Days to Ship: 5 Day(s) or more -
Interface Terminal Block , Standard Type, 8.5mm Pitch
PATLITE (KASUGA)
It is possible to wire 2 mm2 cable which is 1 size larger in consideration of voltage drop, etc.
[Features]
・ Standard one-to-one connection interface terminal block
・ The terminal pitch 8.5-mm type, which emphasizes workability, allows sufficient clearance between the upper and lower terminal screws, allowing the lower terminal screws to be retightened even after wiring
・ It is possible to change the bottom wiring without removing the top wiring
[Applications]
・ Ideal for connecting to PLC- CAD ：
- 2D
Standard Price: MYR 217.67 Days to Ship: 5 Day(s) or more -
Connector Terminal Block, PCI Series, Crimp Terminal Type
TOYOGIKEN
[Features]
· The PCI series is compatible with the main Mitsubishi and OMRON sequencers (forDC5V to 24V).
· A slim design with a main body width of just 40 mm. For use with 35 mm wide DIN rails.Standard Price: MYR 235.37 Days to Ship: 4 Day(s) or more -
TOYOGIKEN
An ultra small size with a pitch between terminals of just 7 mm. Ideal for size reducing PLC or SBC interfaces. A compact type for helping reduce the size of control panels.
[Features]
· An ultra small size with a pitch between terminals of just 7 mm.
· Ideal for size reducing PLC or SBC interfaces.
· A compact type for helping reduce the size of control panels.
· The connector and terminal block are easy-to-handle 1:1 wire connection types.
· Uses SS terminal screws for easy wiring.
· Structured to prevent screws from dropping out and becoming lost.
· The terminal is an open/close type and is pre-equipped with a name plate featuring the terminal number on both sides. Designed for greater efficiency during wiring.
· Compatible with both DNI rail mounting and direct mounting methods.- CAD ：
- 2D
Standard Price: MYR 124.74- Days to Ship: 2 Day(s) or more -
PX7DW Series Dsub Connector Terminal Block (terminal pitch: 7.62mm)
YOSHIDADENKI
A captive screw 1/2 space Dsub connector type.
Standard Price: MYR 301.74 Days to Ship: 4 Day(s) or more -
PX7DS Series MIL Connector Terminal Block (Horizontal Insert・Terminal Pitch: 7.62mm)
YOSHIDADENKI
Ideal for times when there are height restrictions.
[Features]
· Equipped with a common terminal block for each power supply and signal, and so no external relay terminal block required.
· A variety of models are available which support PLCs and NCs from a variety of companies.
· Self-up and screw-up types are available.Standard Price: MYR 168.56- Days to Ship: 4 Day(s) or more -
PX7DW Series FCN Connector Terminal Block (center insertion/terminal Pitch: 7.62mm)
YOSHIDADENKI
A space saving 7.62 mm pitch FCN connector type terminal block.
Standard Price: MYR 236.00 Days to Ship: 4 Day(s) or more -
PX7DS Series FCN Connector Terminal Block (Horizontal Insert/Terminal Pitch: 7.62mm)
YOSHIDADENKI
A 7.62 mm pitch type. Ideal for times when there are height restrictions.
[Features]
· Equipped with a common terminal block for each power supply and signal, and so no external relay terminal block required.
· A variety of models are available which support PLCs and NCs from a variety of companies.
· Self-up and screw-up types are available.Standard Price: MYR 297.81 Days to Ship: 4 Day(s) or more -
Connector Terminal Block Conversion Unit XW2R (for general purpose use)
OMRON
[Features]
· A general purpose type connector terminal block conversion unit that can be used for saving on the amount of wiring required in a variety of measures.Standard Price: MYR 136.56- Days to Ship: 5 Day(s) or more -
Connector Terminal Block Conversion Unit (Common Type) XW2C-20G5-IN16
OMRON
Equipped with a power supply common terminal and operation display LED, it realizes wiring saving in the control panel with the input device.
[Features]
・ Equipped with a common power supply terminal for input devices
・ With LED that shows ON/OFF of input signal at a glance
・ For both DIN rail mounting and screw mounting types
・ Prepare a dedicated connection cable (Sold separately)
[Applications]
・ Used for wiring saving in the control panelStandard Price: MYR 252.98 Days to Ship: 5 Day(s) or more -
Connector Terminal Block Conversion Unit (Standard Type) XW2B (Standard Type)
OMRON
[Features]
· Makes the conversion of connectors and terminal blocks easy. Helps reduce the amount of wiring required on control panels.
· Compatible with both DIN rail mounting and screw mounting.
· The connector side standardizes MIL flat cable connectors and multi-pin square connectors.
· Terminal blocks using M3 screws and M3.5 screws are available.
· Dedicated manufacturer programmable controller.
· Connector connection cable also available (sold separately).Standard Price: MYR 179.42- Days to Ship: 5 Day(s) or more -
Connector Terminal Block For Control Panels, PM-32 Series, Ultra Compact Type
WAGO
[Features]
● Proven results. A best selling connector terminal block.
● For smaller control panels. An ultra-small connector terminal block with a horizontal width of just 77 mm.
● For reducing mis-wiring. Even if the PLC changes, the signal and common terminal block placement remain the same. The signal and common terminal blocks are colored for easier differentiation.
● For reducing the amount of wiring required. With common terminal blocks, power can be passed horizontally to adjacent poles.
● Improved reliability. Uses a cage clamp mechanism so as to prevent wires from becoming loose.
● For using fewer parts. No stopper required for aluminum DIN railsStandard Price: MYR 259.51 Days to Ship: 10 Day(s) or more -
IM-MDR Half Pitch MDR Connector Terminal Block for Control Panels
WAGO
[Features]
● Simple to use. 1-to-1 circuit
● An ultra small type. A 3.5 mm pitch terminal block.
● Industry standard. An MDR connector used as standard in servo amplifiers.
● Ideal for shield processing and EMC audits, etc. Equipped with a shield terminal block.Standard Price: MYR 213.59- Days to Ship: 4 Day(s) or more
| Brand |
|---|
| Product Series |
| CAD |
| Days to Ship |
| Specifications |
| Connector |
| Number of Poles(Pole) |
| Mounting Method |
| Supported equipment manufacturer |
| Pitch Between Terminals(mm) |
| Supported equipment |
| Dimension width(mm) |
| Terminal Block Screw |
| Representative Standard |
| Dimension vertical(mm) |
| Dimension depth(mm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| Brand | WAGO | MISUMI | TOYOGIKEN | WAGO | YOSHIDADENKI | MISUMI | WAGO | MISUMI | MISUMI | OMRON | OMRON | WAGO | MISUMI | MISUMI | MISUMI | WAGO | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | PATLITE (KASUGA) | PATLITE (KASUGA) | PATLITE (KASUGA) | TOYOGIKEN | TOYOGIKEN | YOSHIDADENKI | YOSHIDADENKI | YOSHIDADENKI | YOSHIDADENKI | OMRON | OMRON | OMRON | WAGO | WAGO |
| Product Series | FANUC Operation Board I/O Connector Terminal Block for FANUC Control | MWS Series (Spring-Loaded), Compatible Crimp Terminals Y terminal/Round terminal | IM Series IM-M/IMF MIL/FCN Connector Terminal Block for Control Panels | PLC Connector Terminal Block (for Mitsubishi Electric PLC, Input/Output), Weight: 150 g | PLC Connector Terminal Block (for OMRON PLC, Output), Mounting Method: DIN Rail / Direct Mount | Connector Terminal Block Conversion Unit XW2R (PLC Connection Type) | IM-DSF Dsub Female Connector Terminal Block for Control Panels | PLC Connector Terminal Block (for Mitsubishi Electric, Input/Output) FCN/MIL | MWS Series (Spring-Loaded), Terminal Block Screw Type: Spring-Loaded | MWS Series (Spring-Loaded), Mounting Method: DIN Rail / Direct Mount | MWS Series (Spring-Loaded), for Both DIN Rail and Screw Mounting | MWS Series (Spring-Loaded), Compatible Crimp Terminals: Y terminal/Round terminal | +com PLC connector terminal block (for Mitsubishi Electric input/output) | +comPLC connector terminal block (for Omron input, for output) MIL | MWI Series (Terminal Pitch 7 mm), Compatible Crimp Terminals: Spade/Ring | MWI Series (Terminal Pitch 7 mm), Compatible Crimp Terminals: Spade | MWI series (pitch between terminals 7mm), compatible equipment: servo motor | MWI series (7mm pitch between terminals), terminal block screw type: Self-up | Interface Terminal Block (Crimp Terminal Insertion Type), TIFY Series | Interface Terminal Block, Slim Type Terminal Block, 7 mm Pitch | PX7DW Series Dsub Connector Terminal Block (terminal pitch: 7.62mm) | PX7DS Series MIL Connector Terminal Block (Horizontal Insert・Terminal Pitch: 7.62mm) | PX7DW Series FCN Connector Terminal Block (center insertion/terminal Pitch: 7.62mm) | PX7DS Series FCN Connector Terminal Block (Horizontal Insert/Terminal Pitch: 7.62mm) | Connector Terminal Block Conversion Unit XW2R (for general purpose use) | Connector Terminal Block Conversion Unit (Common Type) XW2C-20G5-IN16 | Connector Terminal Block Conversion Unit (Standard Type) XW2B (Standard Type) | Connector Terminal Block For Control Panels, PM-32 Series, Ultra Compact Type | IM-MDR Half Pitch MDR Connector Terminal Block for Control Panels | ||||||||||||||||
| CAD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||||||||||||||||||||||
| Days to Ship | 10 Day(s) or more | 1 Day(s) or more | 2 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 8 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 2 Day(s) or more | 4 Day(s) or more | 10 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 2 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 1 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 4 Day(s) or more | 2 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 10 Day(s) or more | 4 Day(s) or more |
| Specifications |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||||||||||||||||||||
| Connector | MIL Connector | MIL Connector | MIL Connector / FCN Connector / MR connector / D-sub connector / MDR connector / Other | MIL Connector / FCN Connector | MIL Connector | FCN Connector | MIL Connector | MIL Connector / FCN Connector | Other | MIL Connector | MIL Connector | D-sub connector | MIL Connector | MIL Connector / FCN Connector | Centronics Connector | Other | MIL Connector | MIL Connector | FCN Connector | D-sub connector | MDR connector | MIL Connector / FCN Connector | MIL Connector | D-sub connector | MIL Connector | MIL Connector | MIL Connector | Centronics Connector | MDR connector | Other | MIL Connector | MIL Connector / Other | Other | MIL Connector | MIL Connector | MIL Connector / FCN Connector / MR connector / D-sub connector / Other | D-sub connector | MIL Connector | FCN Connector | FCN Connector | MIL Connector / FCN Connector | MIL Connector | MIL Connector / Other | MIL Connector | MDR connector |
| Number of Poles(Pole) | 50 | 20 ～ 50 | 20 ～ 50 | 20 ～ 50 | 20 ～ 50 | 40 | 32 | 40 | 10 | 34 ～ 40 | 20 ～ 40 | 15 ～ 37 | 34 ～ 40 | 40 | 24 ～ 50 | - | 40 | 40 | 40 | 25 ～ 37 | 50 | 40 | 40 | 25 | 20 ～ 40 | 20 | 40 | 50 | 50 | 68 ～ 96 | 20 | 20 ～ 40 | 20 | 40 | 20 | 20 ～ 50 | 37 | 20 ～ 50 | 40 | 40 | 20 ～ 50 | 20 | 20 ～ 50 | 32 | 20 ～ 50 |
| Mounting Method | Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | With DIN rail | DIN rail/Direct attachment | DIN rail/Direct attachment | With DIN rail | DIN rail/Direct attachment | DIN rail/Direct attachment | Other | Other | With DIN rail | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | With DIN rail | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | With DIN rail | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | DIN rail/Direct attachment | Other | Other | Other | With DIN rail | With DIN rail |
| Supported equipment manufacturer | - | Mitsubishi Electric / Omron / YASKAWA ELECTRIC / Panasonic Electronic Works / KEYENCE | Mitsubishi Electric / Omron / Panasonic Electronic Works / KEYENCE | KEYENCE | - | Mitsubishi Electric | Mitsubishi Electric / Omron / KEYENCE | Omron | - | Mitsubishi Electric / Omron / KEYENCE | - | - | - | Mitsubishi Electric | - | - | Omron | Omron | Mitsubishi Electric / Omron | - | - | Mitsubishi Electric | Omron | - | Mitsubishi Electric / Omron / KEYENCE | Mitsubishi Electric / Omron | - | - | Mitsubishi Electric / Omron / YASKAWA ELECTRIC / Panasonic Electronic Works | - | - | Mitsubishi Electric / Omron / Panasonic Electronic Works / KEYENCE | - | Mitsubishi Electric / Omron / Panasonic Electronic Works / KEYENCE | Mitsubishi Electric / Omron | Mitsubishi Electric / Omron / Panasonic Electronic Works / KEYENCE | - | - | Mitsubishi Electric / Omron | - | - | - | - | Mitsubishi Electric / Omron / KEYENCE | - |
| Pitch Between Terminals(mm) | 3.5 | 7 | 7.62 | 3.5 ～ 5 | 7.62 | 7 | 3.5 | 7 | 7.62 | 5 ～ 7 | 7.62 | 5 | 7 | 7 | 7 | 5 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7.62 | 7 | 7 | 7 | 8.5 | 7 | 5 | 7 | 8.5 | 7.62 | 7 | 7.62 | 7.62 | 7.62 | 7.62 | 5 ～ 7 | 8.5 | 5.08 ～ 8.5 | 3.5 | 3.5 |
| Supported equipment | - | PLC / Servo Motor | Other | PLC | PLC / Servo Motor | PLC | PLC | PLC | Other | - | Servo Motor / Other | - | PLC | PLC | Servo Motor | - | PLC | PLC | PLC | PLC | Servo Motor | PLC | PLC | PLC | PLC | PLC | PLC | Servo Motor | Servo Motor | I/O board | PLC | Other | - | Other | PLC | PLC / I/O board | PLC | PLC / Servo Motor | PLC | PLC | - | - | - | PLC | - |
| Dimension width(mm) | 95 | 76 ～ 181 | 86 ～ 200 | 52 ～ 132 | 63 ～ 139.31 | 129 | 42 | 129 | 63 | 98.5 ～ 151.7 | 135 ～ 180 | 48 ～ 102 | 80 | 125 | 89.5 ～ 180.5 | 31.5 | 125 | 125 | 146 | 96.5 ～ 138.5 | 180.5 | 125 | 125 | 101 | 80 ～ 150 | 55 | 80 | 185 | 185 | 219.55 | 80 | 55 ～ 105 | 80 | 180 | 162 | 80 ～ 184 | 101.21 | 82.2 ～ 202.5 | 101.21 | 158.4 | 81.7 ～ 186.7 | 160 | 67.5 ～ 247.5 | 77 | 46 ～ 100 |
| Terminal Block Screw | - | M3 | M3 | - | M3 | M3 | - | M3 | M3 | Other | M3 | - | M3 | M3 | M3 | - | M3 | M3 | M3 | M3 | M3 | M3 | M3 | M3 | M3 | M3 | M3 | M3 | M3 | M3.5 | M3 | - | M3 | M3.5 | M3 | M3 | M3 | M3 | M3 | M3 | Other | M3.5 | M3 / M3.5 | - | - |
| Representative Standard | - | - | UL / CUL / TUV | - | UL / CSA | - | - | - | - | - | - | - | UL | - | - | - | - | - | - | - | - | - | - | - | CUL | CUL | - | - | - | CUL | - | CE / UL | CE / UL | CE / TUV | UL / CUL / TUV | UL / CUL / TUV | UL / CSA | UL / CSA | UL / CSA | UL / CSA | - | - | - | - | - |
| Dimension vertical(mm) | 41.6 | 42 | 40 | 22.6 ～ 38.3 | 64 | 42 | 48.5 | 42 | 64 | 43.3 ～ 48.35 | 42.8 ～ 44.3 | 27.1 | 86 | 42 | 50.7 | 32 | 42 | 42 | 42 | 50.7 | 50.7 | 42 | 42 | 49 | 41.5 | 47 | 86 | 49 | 49 | 64 | 42 | 59 | 40 | 55 | 40 | 40 | 64 | 54.8 | 64 | 43.2 | 33.4 ～ 48.35 | 35 | 38.1 ～ 43.8 | 41.3 | 31.1 |
| Dimension depth(mm) | 55 | 51 | 36 ～ 43 | 55 | 48 | 42.4 | 85 | 42.4 | 36.5 | 50 | 45 | 55 | 42.5 | 51 | 47.6 | 151 | 51 | 51 | 51 | 47.6 | 47.6 | 51 | 51 | 45 | 42.5 | 50 | 42.5 | 45 | 45 | 35.5 | 42.5 | 42 | 42.3 | 51 | 36.8 | 36 ～ 36.8 | 48 | 57 | 48 | 54.8 | 50 | 50 | 45 | 55 | 55 |
Loading...
Configure
Specification/Dimensions
-
Connector
-
Number of Poles(Pole)
-
Mounting Method
-
Supported equipment manufacturer
-
Pitch Between Terminals(mm)
-
Supported equipment
-
Dimension width(mm)
-
Terminal Block Screw
-
Representative Standard
-
Dimension vertical(mm)
-
Dimension depth(mm)
Narrow search by specifying Manufacturer
CAD
-
- 2D
- 3D
Related Categories to Interface Terminal Blocks (Round/Y Terminal Types)
-
- Interface Terminal Blocks (Round/Y Terminal Types)
- Interface Terminal Blocks (Rod Terminal Type)
- Sensor Terminals
- Common Terminal Blocks
- Terminal Blocks (Round/Y Terminal Types)
- Terminal Blocks (Rod Terminal Type)
- Crossing Metal Fittings
- End Plates
- End Stoppers
- Name Plates
- Insulation Covers
- Terminal Blocks (Options, Others)
-
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
