PATLITE (KASUGA) Terminal Blocks (Round/Y Terminal Types)
| Days to Ship |
|
|---|
-
Assembly Terminal Block Self-Up
PATLITE (KASUGA)
A terminal block that can be assembled with a predetermined number of poles. Such detailed frames allow for selections to be made according to budget.
[Features]
· All models include a cover and name plate sticker (sold separately for TC300 to TC600).
· A screw-up type for efficient wiring work is also available (TC10SU).- CAD ：
- 2D
Standard Price: MYR 10.56- Days to Ship: 5 Day(s) or more -
TX Assembly Terminal Block Jump-Up
PATLITE (KASUGA)
[Features]
・ This is a terminal block in which a rail type terminal block (TX series) terminal unit is assembled with a shaft. The cover and name sticker are included, and there is no hassle of assembly. Jump-up types are also available for efficient wiring work.
・ A jump-up structure terminal block.
· Equipped with both a touch lock function that enables temporary fixing in place, and a jump-up function which stays in place when the screw is loosened and lifted up. Ideal for efficient wiring work.
UL, CSA standard certified product. In addition, it is a CE marking compliant product that has been certified by TÜV as an EN/IEC standard compliant product.
・ Models up to 50 A frame size are UL field wiring certified.
[Applications]
・ Ideal for wiring with a fixed number of poles.- CAD ：
- 2D
Standard Price: MYR 20.45- Days to Ship: 5 Day(s) or more -

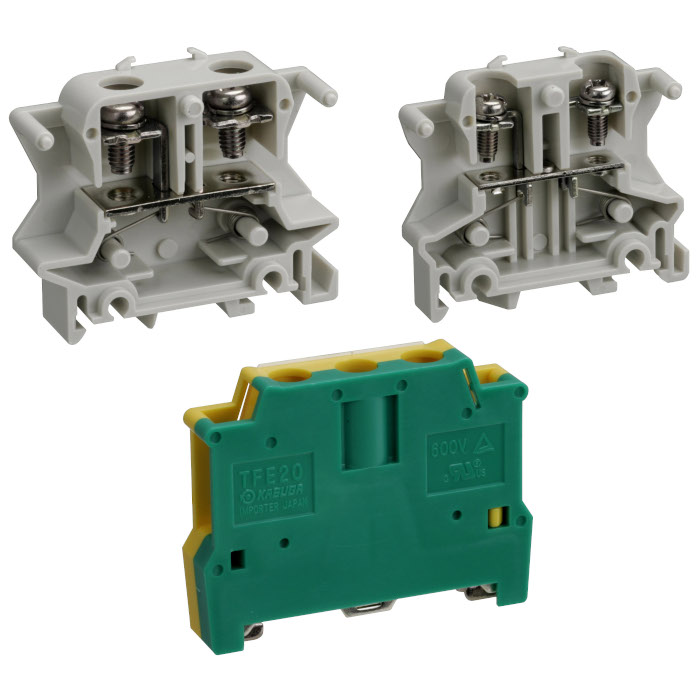

Multi-Rail Type Terminal Block, Captive Screw【1-60 Pieces Per Package】
PATLITE (KASUGA)
Easy-to-use standard multi-rail type terminal block with self-up structure.
[Features]
・ Wide range of capacities and detailed frames are available
・ UL, CSA standard certified product
・ CE marking compliant product certified by TÜV as EN/IEC standard compliant product
・ UL field wiring certified products up to 50 A frame
[Applications]
・ Ideal for relaying cables
・ Ideal for mounting on rails with desired number of poles- CAD ：
- 2D
Standard Price: MYR 4.91- Days to Ship: 2 Day(s) or more -
Flexible Terminal Block Assembly Type
PATLITE (KASUGA)
A assembled terminal block assembled with a fixed number of poles.
[Features]
・ Complete assembly of the flexible terminal block, with a cover and name sticker attached and no hassle of assembly
・ c-UL-us Standard certification (Compatible with both field and factory wiring)
・ Shaftless and easy to assemble (A connection press-fitting machine is required for assembly)
[Applications]
・ Ideal for wiring with a fixed number of poles- CAD ：
- 2D
Standard Price: MYR 16.18- Days to Ship: 2 Day(s) or more -
TX Assembly Terminal Block Self-Up
PATLITE (KASUGA)
The standard terminal block is assembled on the shaft with a terminal block cover and a name sticker, so there is no hassle of assembly.
[Features]
・ Jump up type for efficient wiring work is also available
・ TXM and TXUM Series are UL/CSA standard certified products (Excluding TXM600)
・ TXM and TXUM types are EN/IEC standard compliant products that have acquired TÜV certification (Excluding TXM600)
[Applications]
・ Ideal for wiring with a fixed number of poles- CAD ：
- 2D
Standard Price: MYR 17.92- Days to Ship: 5 Day(s) or more -
Finger Protection 2-Staged Terminal Block Jump-Up (rail type)【20 Pieces Per Package】
PATLITE (KASUGA)
[Features]
・ The finger protection terminal block is a terminal block that does not require a terminal cover, with an emphasis on safety
・ It has a finger protection structure that does not expose the terminal charging part, so it is ideal for enhancing safety
・ Protection rating according to IEC 60529 is IP20
・ The body color of the terminal block is gray
・ Jump up terminals are used for the terminal screws (Not a touch lock type)
・ In addition to rail-type terminal blocks that can be freely assembled with the required number of poles, there are also assembled terminal blocks that do not use rails
[Applications]
・ Ideal for safety- CAD ：
- 2D
Standard Price: MYR 201.66 Days to Ship: 5 Day(s) or more -
Finger Protection Terminal Block Jump-Up (Rail Type)【20-50 Pieces Per Package】
PATLITE (KASUGA)
[Features]
・ The finger protection terminal block is a terminal block that does not require a terminal cover, with an emphasis on safety
・ It has a finger protection structure that does not expose the terminal charging part, so it is ideal for enhancing safety
・ Protection rating according to IEC 60529 is IP20
・ The body color of the terminal block is gray
・ Jump up terminals are used for the terminal screws (Not a touch lock type)
・ In addition to rail-type terminal blocks that can be freely assembled with the required number of poles, there are also assembled terminal blocks that do not use rails
[Applications]
・ Ideal for safety- CAD ：
- 2D
Standard Price: MYR 100.52- Days to Ship: 5 Day(s) or more -
Finger Protection Terminal Block Jump-Up Assembly Type
PATLITE (KASUGA)
[Features]
・ It has a finger protection structure that does not expose the terminal charging part, so it is ideal for enhancing safety
・ Panel mount terminal block with finger protect terminal block mounted on the shaft
・ Protection rating according to IEC 60529 is IP20
・ The body color of the terminal block is gray
[Applications]
・ Ideal for safety- CAD ：
- 2D
Standard Price: MYR 23.03- Days to Ship: 5 Day(s) or more -
Flexible Screw-Upwards Terminal Block Assembly Type
PATLITE (KASUGA)
A terminal block preassembled with the required number of poles.
[Features]
・ A cover and a name sticker are included and there is no hassle of assembly
・ The TEU Series has a screw-up structure that facilitates wiring work, contributing to increased efficiency
・ Shaftless and easy to assemble (A connection press-fitting machine is required for assembly)
[Applications]
・ Ideal for wiring with a fixed number of poles- CAD ：
- 2D
Standard Price: MYR 21.29- Days to Ship: 5 Day(s) or more -
Multi-Rail Type Terminal Block Jump-Up【1-60 Pieces Per Package】
PATLITE (KASUGA)
Standard rail type terminal block. Multi-rail type terminal block jump up.
[Features]
・ Jump up structure terminal block
・ UL, CSA standard certified product
・ CE marking compliant product certified by TÜV as EN/IEC standard compliant product
・ UL field wiring certified products up to 50 A frame
[Applications]
・ Ideal for relaying cables
・ Ideal for mounting on rails with desired number of poles
・ Equipped with a touch lock function (temporary fixing function, except TXU7), ideal for shortening the wiring work time for round crimp terminals- CAD ：
- 2D
Standard Price: MYR 11.93- Days to Ship: 2 Day(s) or more -
Terminal Block for Large-capacity Series Branch
PATLITE (KASUGA)
A large-capacity series branch terminal block with a variety of models for each application.
[Features]
・ For branching, a wide number of branches and various branch wirings are supported, and it is possible to reduce the work labor-hours by approx. 1/6 and installation area by approx. 15% compared to branch wirings using conventional copper bars.
・ Can reduce the number of branch wiring labor-hours
・ When assembled, there is no side base, so high space saving is achieved
・ All models are rated according to the use of heat-resistant cables
・ For both IEC35 mm and IEC / C type
・ With name sticker
[Applications]
・ Ideal for branching cables- CAD ：
- 2D
Standard Price: MYR 95.63- Days to Ship: 5 Day(s) or more -

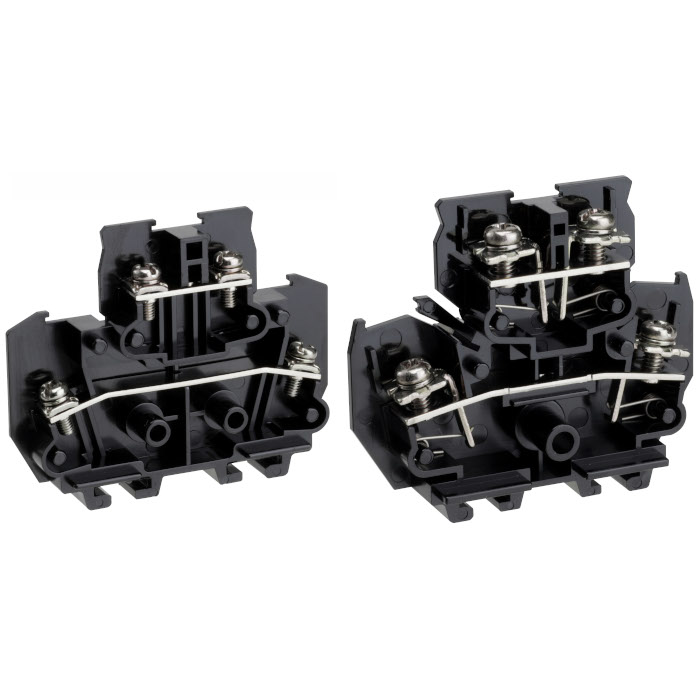

2-Stage Type Terminal Block, TTJ Series【20 Pieces Per Package】
PATLITE (KASUGA)
A small and space saving type terminal block for equipment. Compatible with 15 mm wide / 35 mm wide IEC rails.
[Features]
· TÜV certified and complies with EN and IEC standards.
A two-level type terminal block. Compatible with 15 mm wide / 35 mm wide IEC rails.
· A snap-on structure for easier mounting between units, and for easier removal.- CAD ：
- 2D
Standard Price: MYR 107.83 Days to Ship: 1 Day(s) -

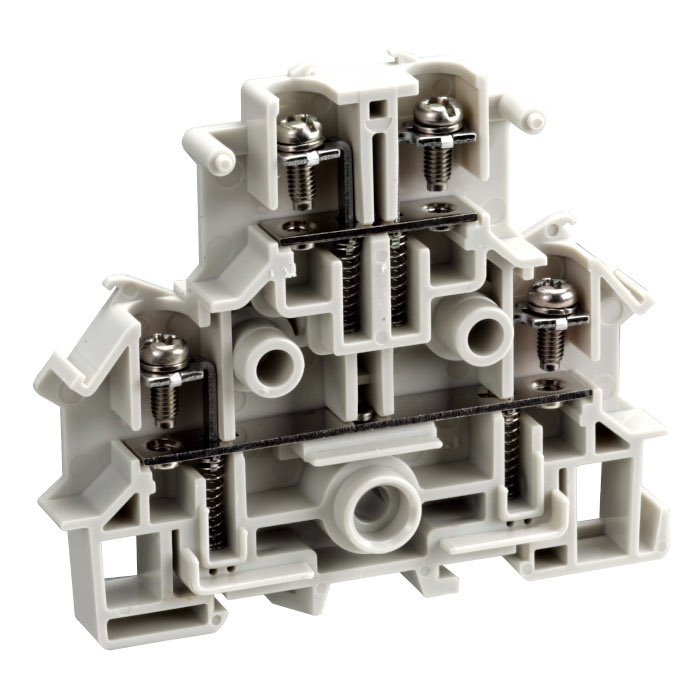

2-Stage Terminal Block (Rail Type)【20 Pieces Per Package】
PATLITE (KASUGA)
Rail type terminal block. (The screw structure is a SEMS screw or a jump-up screw)
[Features]
・ The 2-stage terminal block is ideal when many control circuit terminals are required in a narrow space
・ Since the upper and lower terminals are displaced by half pole, you can wire from either side of the upper and lower rows
・ It is also possible to mount directly on the shaft without using rails (assembled terminal type)
[Applications]
・ Ideal when many control circuit terminals are required in a narrow space- CAD ：
- 2D
Standard Price: MYR 154.91- Days to Ship: 4 Day(s) or more -
2-Stage Terminal Block Jump-Up (rail type)【1-20 Pieces Per Package】
PATLITE (KASUGA)
Rail type terminal block. (The screw structure is a jump-up screw)
[Features]
・ The 2-stage terminal block is ideal when many control circuit terminals are required in a narrow space
・ Since the upper and lower terminals are displaced by half pole, you can wire from either side of the upper and lower rows
・ It is also possible to mount directly on the shaft without using rails (assembled terminal type)
[Applications]
・ Ideal when many control circuit terminals are required in a narrow space- CAD ：
- 2D
Standard Price: MYR 19.97- Days to Ship: 4 Day(s) or more -
2-Stage Terminal Block, Self-Up (Rail Type)【1-20 Pieces Per Package】
PATLITE (KASUGA)
Rail type terminal block. (The screw structure is a SEMS screw)
[Features]
・ The 2-stage terminal block is ideal when many control circuit terminals are required in a narrow space
・ Since the upper and lower terminals are displaced by half pole, you can wire from either side of the upper and lower rows
・ It is also possible to mount directly on the shaft without using rails (assembled terminal type)
[Applications]
・ Ideal when many control circuit terminals are required in a narrow space- CAD ：
- 2D
Standard Price: MYR 16.82- Days to Ship: 4 Day(s) or more -
Assembly Terminal Block TL Self-Up
PATLITE (KASUGA)
TL Series self-up type assembled terminal block assembled with the required number of poles.
[Features]
・ This is a general-purpose terminal block with an insulation voltage of 600 V
・ Mounting holes are aligned on the center Line, making drilling easier
・ All models come with a cover and a name sticker
[Applications]
・ Ideal for relaying cables
・ UL/CSA standard certified product- CAD ：
- 2D
Standard Price: MYR 16.18- Days to Ship: 5 Day(s) or more
| Brand |
|---|
| Product Series |
| CAD |
| Days to Ship |
| Number of Poles(Pole) |
| Rated current (UL)(A) |
| Mounting Method |
| Screw Size |
| Parts/Completed products |
| Wiring Method |
| Number of input/outputs |
| Rated current (JIS)(A) |
| Rated current (IEC)(A) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| Brand | PATLITE (KASUGA) | PATLITE (KASUGA) | PATLITE (KASUGA) | PATLITE (KASUGA) | PATLITE (KASUGA) | PATLITE (KASUGA) | PATLITE (KASUGA) | PATLITE (KASUGA) | PATLITE (KASUGA) | PATLITE (KASUGA) | PATLITE (KASUGA) | PATLITE (KASUGA) | PATLITE (KASUGA) | PATLITE (KASUGA) | PATLITE (KASUGA) | PATLITE (KASUGA) |
| Product Series | Multi-Rail Type Terminal Block, Captive Screw【1-60 Pieces Per Package】 | Finger Protection 2-Staged Terminal Block Jump-Up (rail type)【20 Pieces Per Package】 | Finger Protection Terminal Block Jump-Up (Rail Type)【20-50 Pieces Per Package】 | Multi-Rail Type Terminal Block Jump-Up【1-60 Pieces Per Package】 | 2-Stage Type Terminal Block, TTJ Series【20 Pieces Per Package】 | 2-Stage Terminal Block Jump-Up (rail type)【1-20 Pieces Per Package】 | 2-Stage Terminal Block, Self-Up (Rail Type)【1-20 Pieces Per Package】 | |||||||||
| CAD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Days to Ship | 5 Day(s) or more | 5 Day(s) or more | 2 Day(s) or more | 2 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 2 Day(s) or more | 5 Day(s) or more | 1 Day(s) | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 5 Day(s) or more |
| Number of Poles(Pole) | 1 ～ 30 | 2 ～ 30 | 1 | 2 ～ 20 | 2 ～ 30 | 1 | 1 | 2 ～ 18 | 2 ～ 16 | 1 | 1 ～ 4 | 1 | 1 | 1 | 1 | 2 ～ 30 |
| Rated current (UL)(A) | - | 10 ～ 115 | 10 ～ 380 | 15 ～ 25 | 10 ～ 380 | 15 | 10 ～ 30 | 10 ～ 25 | 20 ～ 35 | 10 ～ 115 | 85 ～ 380 | - | 15 ～ 25 | - | - | 20 ～ 50 |
| Mounting Method | Direct attachment | Direct attachment | DIN rail mount | Direct attachment | Direct attachment | DIN rail mount | DIN rail mount | Direct attachment | Direct attachment | DIN rail mount | Other | DIN rail mount | DIN rail mount | DIN rail mount | DIN rail mount | Direct attachment |
| Screw Size | M3.5 / M4 / M5 / M8 / M10 / M12 / M13 or Higher | M3 / M3.5 / M4 / M5 / M6 / M8 | M3 / M3.5 / M4 / M5 / M6 / M8 / M10 / M12 | M3 / M3.5 / M4 | M3 / M3.5 / M4 / M5 / M6 / M8 / M10 / M12 | M3 / M3.5 | M3 / M3.5 / M4 / M5 | M3 / M3.5 / M4 | M3.5 / M4 / M5 | M3 / M3.5 / M4 / M5 / M6 / M8 | M6 / M8 / M10 / M12 | M3.5 | M3 / M3.5 / M4 | M3 / M3.5 / M4 | M3 / M3.5 / M4 | M3.5 / M4 / M5 |
| Parts/Completed products | Assembled product | Assembled product | Individual parts | Assembled product | Assembled product | Individual parts | Individual parts | Assembled product | Assembled product | Individual parts | Assembled product | Individual parts | Individual parts | Individual parts | Individual parts | Assembled product |
| Wiring Method | Screw | Screw | Screw | Screw | Screw | Screw | Screw | Screw | Screw | Screw | Screw | Screw | Screw | Screw | Screw | Screw |
| Number of input/outputs | 1 to 1 | 1 to 1 | 1 to 1 | 1 to 1 | 1 to 1 | Other | 1 to 1 | 1 to 1 | 1 to 1 | 1 to 1 | Other | Other | Other | Other | Other | 1 to 1 |
| Rated current (JIS)(A) | 20 ～ 650 | 15 ～ 130 | 15 ～ 400 | 10 ～ 30 | 15 ～ 500 | 20 | 15 ～ 80 | 15 ～ 40 | 20 ～ 50 | 15 ～ 130 | 90 ～ 400 | 20 | 20 ～ 40 | 15 ～ 30 | 15 ～ 30 | 20 ～ 50 |
| Rated current (IEC)(A) | - | 15 ～ 140 | 15 ～ 540 | 20 ～ 30 | 15 ～ 540 | 20 | 15 ～ 60 | 15 ～ 40 | 20 ～ 45 | 15 ～ 140 | - | 20 | 20 ～ 40 | - | - | - |
Loading...
Configure
Specification/Dimensions
-
Number of Poles(Pole)
-
Rated current (UL)(A)
-
Mounting Method
- Direct attachment
- DIN rail mount
- DIN/Direct attachment
- PCB
- Other
-
Screw Size
-
Parts/Completed products
-
Wiring Method
-
Number of input/outputs
-
Rated current (JIS)(A)
-
Rated current (IEC)(A)
Narrow search by specifying Manufacturer
-
- MISUMI (17)
- TOYOGIKEN (27)
- SATOPARTS (19)
- PATLITE (KASUGA) (16)
- OSADA (8)
- IDEC (5)
- WEIDMULLER (3)
- KIMDEN (1)
- TAKACHI ELECTRONICS ENCLOSURE (1)
- YOSHIDADENKI (1)
CAD
-
- 2D
- 3D
Related Categories to Terminal Blocks (Round/Y Terminal Types)
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
