Lamp Fixtures for Inspection
| Days to Ship |
|
|---|
-

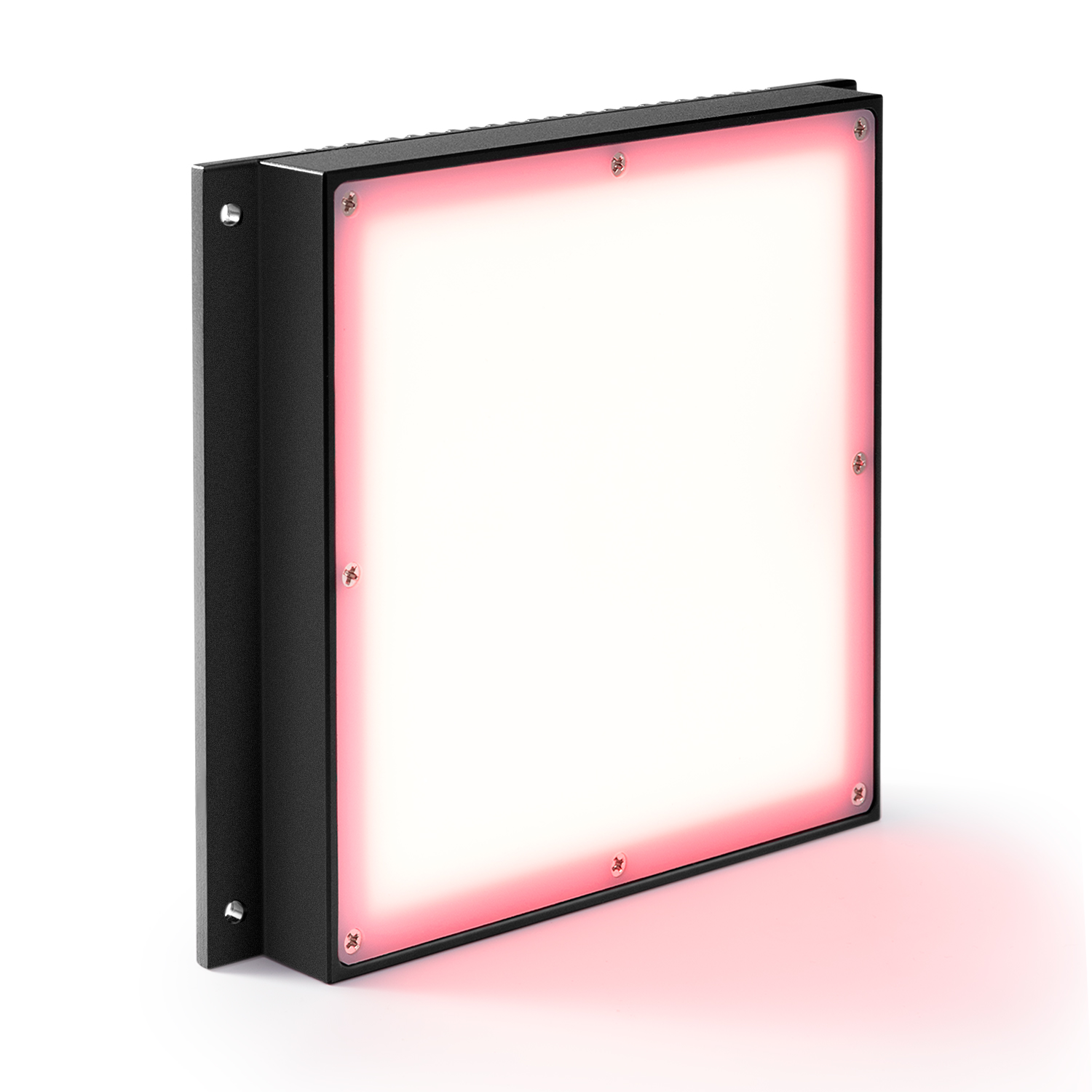

LED Lamps- Lightings / Backlight
MISUMI
LED light has a longer lifespan than conventional halogen and fluorescent lamps. Maintenance frequency can be reduced.
- Volume Discount
Standard Price: MYR 1,980.21- Days to Ship: 4 Day(s) or more -
LED Ring Light Compliant With Uniform Light Emission and Testings (White/Red/Blue)
CST
CST is one of the leading manufacturer of LED lighting for image processing equipment in China. The manufacturer has been providing stable quality products for a long time.
Standard Price: MYR 1,425.19- Days to Ship: 24 Day(s) or more -

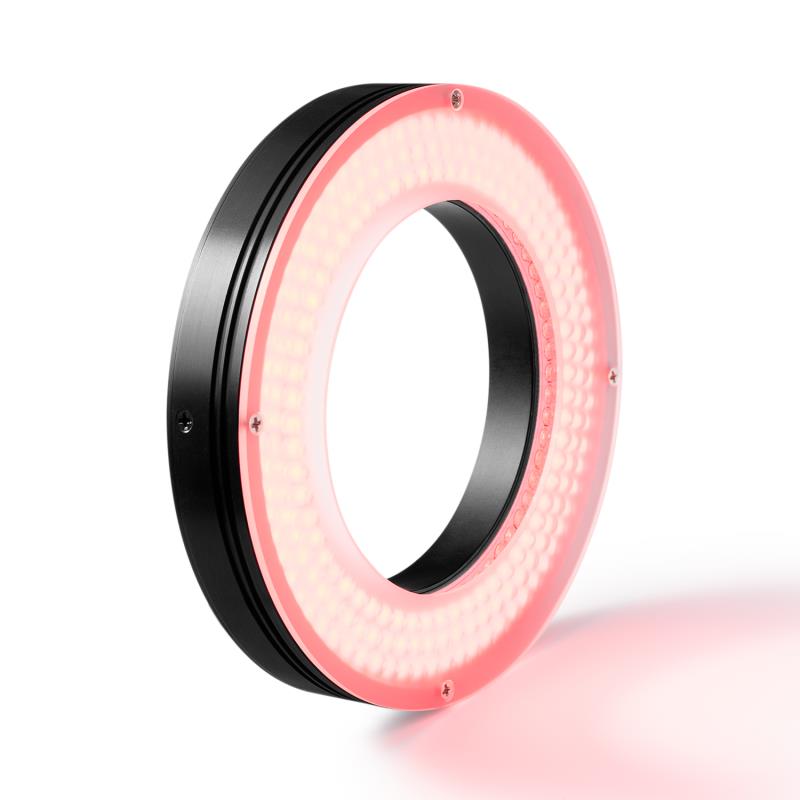

Direct Ring Light (Direct Light) IDR Series
IMAC
This general-purpose ring light supports a diverse range of visual inspections.
[Features]
· A high concentration of shell type LEDs is mounted, and light can be effectively focused on the center by the angle of the circuit board.
· The tilt is ideal for inspecting for scratches, edges, and alignment markings.
· The lineup contains various sizes, from standard outer diameters of 32 mm / internal diameter 10 mm to external diameter 140 mm/ internal diameter 95 mm.
· Light color: Can be selected from white / red / blue / green.
[Applications]
· Optimized for character recognition and 2D code reading.
· Convenient for mounting substrate parts inspection and alignment mark reading.Standard Price: MYR 1,197.24- Days to Ship: 8 Day(s) or more -
Bar Lighting (Direct Light / Diffused Light) IDBA Series
IMAC
General purpose bar lighting.
It can be used widely, including oblique irradiation and transmission applications.Standard Price: MYR 901.67- Days to Ship: 13 Day(s) or more -
IMAC
405 nm, 375 nm, 365 nm ultraviolet lighting.
Enables inspections clearer than those using visible light. Output 2 times that of the conventional model.Standard Price: MYR 5,215.43- Days to Ship: 18 Day(s) or more -
Shadowless Ring Lighting (White/Red/Blue) for Electronic Component Inspection, Etc.
CST
CST is one of the leading manufacturer of LED lighting for image processing equipment in China. The manufacturer has been providing stable quality products for a long time.
Standard Price: MYR 2,275.31- Days to Ship: 24 Day(s) or more -
MISUMI
LED lighting has a longer lifespan than traditional halogen and fluorescent lights. Maintenance frequency can be reduced.
Standard Price: MYR 1,870.20- Days to Ship: 11 Day(s) or more -

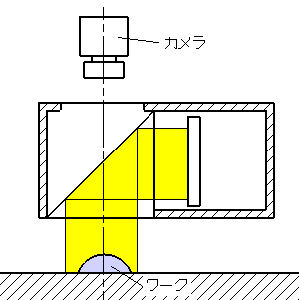

White LED lighting equipment ML-TV3 (for coaxial epi‐illumination)
MIRUC OPTICAL
Ultra-compact, lightweight, long lifespan, low-power consumption spot lighting. A simple power supply with adjustable light intensity contributes to space saving. Compatible with various coaxial epi-illumination lenses. Cable length L = 500 mm
Standard Price: MYR 3,565.96 Days to Ship: 21 Day(s) or more -
Coaxial Spot Lighting for Telecentric IV/IHV Series
IMAC
Coaxial spotlight.
Insert into a telecentric lens to be used for coaxial epi-illumination. Ideal for positioning (alignment) in the LCD, semiconductor, and electronic component fields, etc. Various products are available from compact shapes (IV) to high brightness (IHVE).Standard Price: MYR 1,492.33- Days to Ship: 8 Day(s) or more -
Shadowless Ring Illumination (Indirect Light) IFR Series
IMAC
Diffusion-type ring lighting that uniformly irradiates glossy and uneven workpieces.
[Features]
· Adopts an optical guide plate for indirect lighting where direct LED light is not visible.
· Light is emitted from the optical guide plate to reduce LED glare and limit halation.
[Applications]
· Character recognition, 2D code reading.
· For mounting substrate parts inspection.
· Character inspection on gloss paper.Standard Price: MYR 5,159.30- Days to Ship: 18 Day(s) or more -
MORITEX
[Features]
· High-illuminance LEDs are densely arranged so that illumination from all directions in 360° produces uniform shadowless illumination.
· Standard type LED lighting fixture that can be used for a wide range of applications.
· Choose a model that matches the manufacturer lens.Standard Price: MYR 2,963.25 Days to Ship: 64 Day(s) or more -
Direct Ring Lighting UDR Series
U-TECHNOLOGY
[Features]
・ Lighting suitable for inspection of various purposes.
・ High luminance can be obtained by direct illumination.
・ Lighting that can be easily installed and adjusted by illuminating from the 360° direction.
・ The light quality can be changed by using a diffuser plate and a polarizing plate.
[Applications]
・ Board inspection.
・ Scratch inspection.
・ Surface inspection.
・ Dirt inspection.Standard Price: MYR 8,040.31 Days to Ship: 13 Day(s) or more -
![Dedicated Light Units For Image Processing [FLV]](//pre-my.misumi-ec.com/linked/material/mech/OMR1/PHOTO/221302232377_002.jpg?$product_view_b$)
Dedicated Light Units For Image Processing [FLV]
OMRON
A wide range of lineup consists of light units such as ring light, bar light, spot light, etc.
Standard Price: MYR 2,223.62- Days to Ship: 9 Day(s) or more -

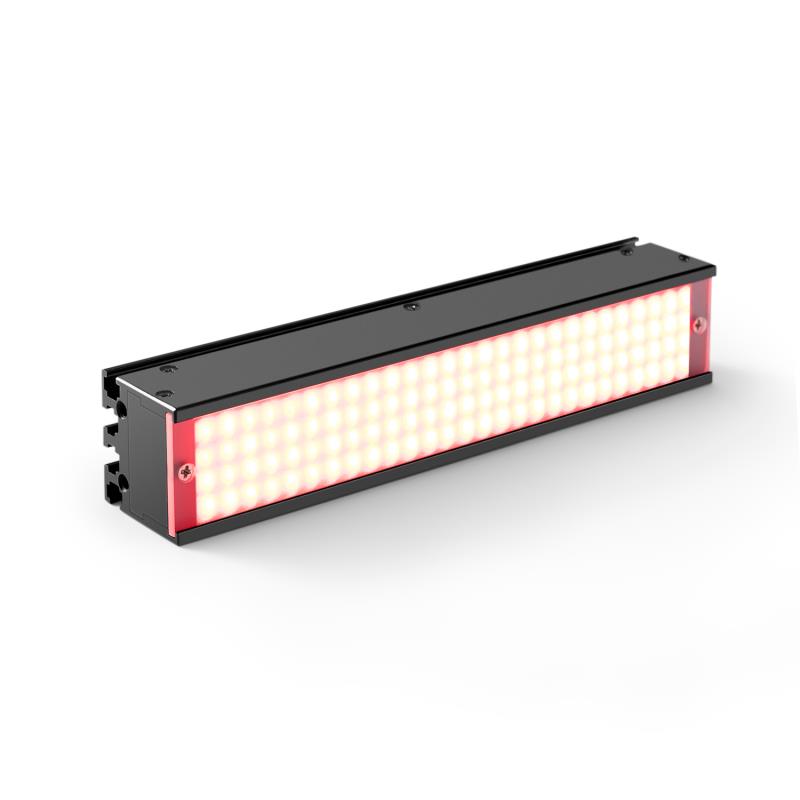

Bar Light (White/Red/Blue) for Strong Illuminance
CST
This lighting brightly illuminates objects to make them more viewable in characters/QR codes readout inspection, canned food sealing inspections, and inspections for contaminant and external appearance.
Standard Price: MYR 1,292.20- Days to Ship: 10 Day(s) or more -
LED Lamps- Lightings / Direct Ring
MISUMI
LED light has a longer lifespan than conventional halogen and fluorescent lamps. Maintenance frequency can be reduced.
- Volume Discount
Standard Price: MYR 2,200.23- Days to Ship: 4 Day(s) or more -
LED Lighting Series Spot Lighting PDS Series
KONDO SEISAKUSHO
Ideal for saving space measures.
[Features]
· Suitable for restricted inspection spaces
· Where lighting equipment could not previously fit.- CAD ：
- 2D
Standard Price: MYR 1,304.36 Days to Ship: 48 Day(s) or more -
MIRUC OPTICAL
Low-cost white LED lighting using a penlight. Since there is no need to route cables around, it is useful around machinery and equipment. The workpiece can be clearly observed, reducing eye fatigue.
- CAD ：
- 2D
Standard Price: MYR 1,734.21 Days to Ship: 6 Day(s) or more -
White spot LED lighting device
MIRUC OPTICAL
Enables workpieces to be observed with clarity and with reduced eye fatigue.
Standard Price: MYR 3,565.96 Days to Ship: 6 Day(s) or more -
Bifurcated fiber lighting device
MIRUC OPTICAL
Spot lighting from two branches. The semi-lock type SUS tube can be fixed at any position. By changing the angle of illumination from 2 directions, the edges can be emphasized, and the light can be well wrapped around workpieces having uneven surfaces or twisted shapes.
Standard Price: MYR 6,180.55 Days to Ship: 6 Day(s) or more -
White LED lighting device (separated type)
MIRUC OPTICAL
A lighting device in which the LED lighting section and the power supply controller are separated. The LED light attached to the objective lens is compact (ø40), making it suitable for applications in narrow spaces.
Standard Price: MYR 2,063.49 Days to Ship: 6 Day(s) or more -
Flat Direct Ring Lighting (Direct Light) IDR-F Series
IMAC
Lightweight flat-ring lighting that has shell type LEDs mounted horizontally to provide illumination over a wide range.
[Features]
· The flat illuminating surface enables illumination over a wide area.
· Uses a POM case, with a ring with an O.D. of 90 mm and a weight of 85 g. Features a lightweight design that makes it ideal for being moved around as well.
· Ultra-slim light is also available for dedicated use with the 16 mm diameter telecentric lens (LWD 40, 65).
· Usable with auxiliary light of a coaxial spotlight source.
· Light color: Can be selected from white / red / blue / green.
[Applications]
· Ideal for positioning, visual inspection, and character recognition when mounted on the end of robot arms.
· Convenient for two-dimensional code reading, mounting substrate parts inspection, and alignment mark reading.Standard Price: MYR 1,492.96- Days to Ship: 8 Day(s) or more -

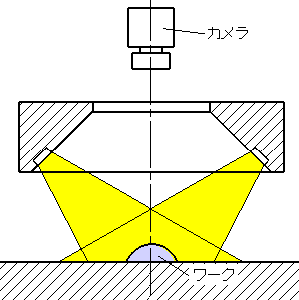

Low Angle Ring Light (Direct Light) IDR-LA Series
IMAC
General purpose ring lighting ideal for scratch inspection/edge detection by illuminating from a low angle.
[Features]
· Mounted on direct ring lighting at an angle.
· Ideal for edge detection and scratch inspection with oblique irradiation.
· The lineup contains various sizes, from standard outer diameters of 40 mm / internal diameter 15 mm to external diameter 200 mm/ internal diameter 170 mm.
· Light color: Can be selected from white / red / blue / green.
[Applications]
· Ideal for inspecting tablets or powder for foreign matter and scratches or dirt.
· Useful for reading engraved text on metal surfaces or substrate and sheet edge extraction.Standard Price: MYR 1,315.56- Days to Ship: 8 Day(s) or more -
Horizontal Opposed Ring Light (Direct Light) IDRA-T Series
IMAC
General-purpose ring lighting that can emphasize irregularities by irradiation in the horizontal direction.
[Features]
· Shell type LEDs are mounted horizontally.
· Ideal for edge detection and minute scratch inspection using horizontal irradiation.
· The lineup contains various sizes, from standard outer diameters of 78 mm / internal diameter 46 mm to external diameter 206 mm/ internal diameter 170 mm.
· Light color: Can be selected from white / red / blue / green.
[Applications]
· Ideal for inspecting tablets or powder for foreign matter and fine scratches or dirt.
· Useful for reading engraved text on metal surfaces.
· Optimal for circuit board and sheet edge extraction.Standard Price: MYR 2,970.95- Days to Ship: 13 Day(s) or more -
IMAC
Direct-type bar lighting optimal for large workpieces and long distances.
[Features]
· 3 to 4 times brighter than IDBA-LE series. Light color can be selected from white / red / blue.
· Narrow angle lighting type (L) that is optimal for long-distance lighting (WD 200 to 5,000 mm).
· Wide angle lighting type (S) that is optimal for short-distance lighting (WD 80 to 200 mm).
· Optimal for environments where lighting cannot be installed nearby and for applications for uniform irradiation within large trays.
· 75 mm (12 V specification)/150 mm (24 V specification) increments up to 1,800 mm are supported.
[Applications]
· Ideal for printing and visual inspections of large workpieces (cardboard).
· Convenient for use as an auxiliary light source in inspection equipment for applications that require a high speed shutter, such as transporting workpieces.- CAD ：
- 2D
Standard Price: MYR 4,817.57 Days to Ship: 18 Day(s) or more -
Square Edgelight Illuminator (Surface Emitting, Thin Type) IFLA/IFL Series
IMAC
Thin surface light-emitting fitting.
Backlight illumination achieves vivid silhouette images. The IFLA series has a 6 mm thickness that allows it to be installed even in places without much space. Energy saving/low heat-generation type with uniform surface emission.Standard Price: MYR 1,433.41- Days to Ship: 8 Day(s) or more -
Chip LED Surface Illumination (Surface Emitting) IDHM Series
IMAC
Surface lighting with densely arranged chip LEDs.
Backlight illumination achieves vivid silhouette images. Lineup in multiples of □30 mm. Can be selected to fit the image range.Standard Price: MYR 783.98- Days to Ship: 8 Day(s) or more -
Square Surface Lighting (Indirect Light) IPQC Series
IMAC
Indirect lighting fixture with a low angle that illuminates from 4 directions.
Uses high-power LEDs for at least 10 times as much light as conventional products. Ideal for engraving/edge extraction of square workpieces.Standard Price: MYR 4,684.01- Days to Ship: 8 Day(s) or more -
Coaxial Vertical Pseudo Lighting IFV Series
IMAC
Pseudo coaxial epi-illumination from the same optical axis as the camera axis, using a half mirror.
[Features]
· It enables inspection with specular reflection, making it effective for inspection of fine surface scratches and print/character inspection.
· Available in 6 opening sizes from 13 mm to 100 mm.
· BS (Beam Splitter) types help suppress ghost images.
· Since the C01 type allows camera mounting in the horizontal direction, it can be selected according to the equipment space.
· Light color can be selected from white / red / blue / green.
[Applications]
· Optimal for inspections of substrate patterns, sheet letters, gloss surface scratches, and characters.
· Convenient for the pitch measurement of connector pins.Standard Price: MYR 2,734.61- Days to Ship: 13 Day(s) or more -
Infrared Lighting Infrared Series
IMAC
Infrared light ideal for transmission type inspection of packages, liquids, printing, etc.
[Features]
· Adopts a wavelength peak of 850 nm, 950 nm, 1,200 nm or 1,450 nm.
· Can be used for inspections that cannot be performed using visible light.
· High transmittance infrared light is optimal for inspections where liquid is permeated or printed patterns are erased.
[Applications]
· Ideal for detecting foreign objects in liquid.
· Convenient for visual inspection and character recognition after erasing patterns from the work surface.
· Ideal for non-contact spectroscopic analysis and sugar concentration measurement, etc.Standard Price: MYR 2,261.34- Days to Ship: 18 Day(s) or more -
Shadowless Low-Angle Ring Illumination (Indirect Light) IPR Series
IMAC
Diffusion-type low angle ring lighting that uniformly irradiates glossy and uneven workpieces.
[Features]
· Adopts an optical guide plate to keep direct LED light from being visible.
· Uniformly irradiates glossy and uneven workpieces.
· Light is emitted from the optical guide plate to reduce LED glare and limit halation.
[Applications]
· Ideal for edge chipping / crack inspection of spouts, etc., character recognition and 2D code reading.
· Convenient for mounting substrate parts inspection and character inspection on gloss paper.Standard Price: MYR 11,186.13 Days to Ship: 18 Day(s) or more -
Collimate Light (Pseudo Collimated Light) IBF Series
IMAC
Pseudo collimated light source capable of long distance irradiation several tens of meters away.
[Features]
· Usable as a backlight in combination with a telecentric lens.
· Parallel light prevents light wraparound, thus optimizing for shape inspections of transparent items and shape/dimension inspection of screws, etc.
· Parallel light emission enables illumination tens of meters forward as well.
· Can be used for factory indicator lights or situations where the equipment environment prevents lighting from being placed nearby.
· Ideal for local irradiation as light does not spread. Light color can be selected from white / red / blue / green / 850 infrared / 400 ultraviolet.
[Applications]
· Convenient for size and shape inspections of electronic parts and lead frame dimensions.
· Ideal for measuring the pitch of connector pins and for edge extraction of substrates and sheets.Standard Price: MYR 4,034.42- Days to Ship: 18 Day(s) or more -
Slim Lighting Ring VRDFR Series
SHIMATEC
Thin, space-saving ring lighting fixture.
[Features]
· Thin, space-saving design.
· Contains both coaxial and oblique lighting components to enable wide-range uniform lighting.
· Provides extremely uniform irradiation thanks to its wide light emission area and diffusibility.
· Separate supported power supply controller VS-24 series and extension cable required.
[Applications]
· Convenient for semiconductor electronic parts, circuit board inspection (exterior, alignment), text reading, tablet inspection, plastics, etc.- CAD ：
- 2D
Standard Price: MYR 4,270.86- Days to Ship: 13 Day(s) or more -
Highly Uniform Multi Ring Lighting VRMD Series
SHIMATEC
Universal ring lighting which can easily provide the ideal image just by changing the lighting height.
[Features]
· The original design of the diffusion plate delivers uniform wide-angle illumination.
· Dust can be cleaned away easily at any time as the diffusion plate covers the entire light emission section.
· The diffusion plate also comes with a protective cover for resistance to external impact, minimizing damage caused during accidents, etc.
· Separate supported power supply controller VS-24 series and extension cable required.
[Applications]
· Ideal for all types of image processing, LCD alignment, and PCB alignment inspections.
· Ideal for inspections of chip components, electronic components, and food cup inner surfaces.
· Perfect for cleanrooms in semiconductor factories or food processing factories.- CAD ：
- 2D
Standard Price: MYR 1,708.39- Days to Ship: 13 Day(s) or more -
High Luminance Multi Ring Lighting VRMD UP Series
SHIMATEC
High brightness type universal ring lighting which can easily provide the ideal image just by changing the lighting height.
[Features]
· Effects of the translucent diffuser plate enable brightness to be concentrated on a smaller area than the standard type.
· Dust can be cleaned away easily at any time as the diffusion plate covers the entire light emission section.
· The diffusion plate also comes with a protective cover for resistance to external impact, minimizing damage caused during accidents, etc.
· Separate supported power supply controller VS-24 series and extension cable required.
[Applications]
· Ideal for all types of image processing, LCD alignment, and PCB alignment inspections.
· Ideal for inspections of chip components, electronic components, and food cup inner surfaces.
· Perfect for cleanrooms in semiconductor factories or food processing factories.- CAD ：
- 2D
Standard Price: MYR 1,708.39- Days to Ship: 13 Day(s) or more -
Highly Uniform Dome Lighting VDSD Series
SHIMATEC
Dome lighting with excellent uniformity and brightness.
[Features]
· Uniform and very high brightness.
· In addition to the illumination of the dome, it can irradiate diffused light from the side.
· More uniform irradiation is possible through a combination of two types of lights.
· The edge direction and the upward direction can be dimmed and lit independently.
· Separate supported power supply controller VS-24 series and extension cable required.
[Applications]
· Ideal for inspection of uneven products and foreign matter inspections of food packages, containers, etc.Standard Price: MYR 4,037.90- Days to Ship: 13 Day(s) or more -
Low Cost Type Surface Emission (for Transmission) Light VDFK Series
SHIMATEC
Light-emitting fitting that supports a maximum illuminating surface of 300 x 200 mm.
[Features]
· Square surface lighting uses an optical guide plate.
· Up to 300 x 200 mm light emitting surfaces can be provided at a reasonable cost.
· Separate supported power supply controller VS-24 series and extension cable required.
[Applications]
· Ideal for all types of external inspections and dimensional measurements.
· Ideal for permeation of large workpieces.
· Can also be used for surface emission reflective lighting in addition to transmissive lighting.- CAD ：
- 2D
Standard Price: MYR 3,863.19- Days to Ship: 13 Day(s) or more -
VXHSL Series Coaxial Vertical Lighting
SHIMATEC
Small coaxial illumination equipment with excellent uniformity.
[Features]
· Light can be reflected off a flat workpiece by irradiation from the same axis as the camera to make the detected object stand out.
· The lighting itself is compact but features a wide effective irradiation area.
· Separate supported power supply controller VS-24 series and extension cable required.
[Applications]
· Ideal for all types of image processing, LCD alignment, PCB alignment, glass, metal, and wafer inspections.
· Optimal for gloss on metals and glass and for mirror-surfaced workpieces.Standard Price: MYR 5,552.09- Days to Ship: 13 Day(s) or more -
General Purpose Bar Illumination, VANSF Series
SHIMATEC
Universal bar lighting that combines well balanced brightness and uniformity.
[Features]
· Uniformity is improved further by mounting an optional diffusion plate.
· Separate supported power supply controller VS-24 series and extension cable required.
[Applications]
· Useful for all types of image processing, LCD alignment, PCB alignment, and inspections of chip components and electronic components.- CAD ：
- 2D
Standard Price: MYR 893.06- Days to Ship: 13 Day(s) or more -
Mini Spot Lighting IHVA-SP Series
IMAC
Spot lighting that combines high-output power LED with special lens.
It is small and lightweight, allowing installation in various environments such as inside equipment, at the tip of a robot arm, or for epi-illumination of a stereomicroscope.
Lineup includes short-distance wide-range, wide-angle light distribution type (S) and long-distance high-output irradiation narrow light distribution type (L).Standard Price: MYR 1,493.74 Days to Ship: 13 Day(s) or more -
Direct Ring Lighting FL-DR Series
OMRON
One of the highest luminosities in the industry* / Clear images with wide-field lighting.
[Features]
· Small yet high-luminosity ODR illumination
· Broad range of workpiece distances supportedStandard Price: MYR 3,500.20- Days to Ship: 12 Day(s) or more -
Narrow-Angle Light Distribution Coaxial Light IFVA Series
IMAC
Narrow-angle light distribution coaxial light that provides high illumination, high uniformity, and a compact housing.
[Features]
· Because it allows testing using specular reflection, it is effective for inspecting for fine scratches on surfaces or inspections of printing and lettering.
· Brightness is at least 3 times that of the IFV series.
· The uniformity of the light emitting surface has been improved, enabling uniform lighting even of glossy workpieces that reflect light.
· Despite its compact housing, the aperture on the camera side has been widened as much as possible to ensure a wide field of view.Standard Price: MYR 5,142.37 Days to Ship: 8 Day(s) or more -
Square Lens Lighting IFHA Series
IMAC
Lightweight lens lighting with low profile of 8 mm.
[Features]
・ Since there is no camera window, there is no light leakage and it is possible to evenly illuminate the entire glossy workpiece
・ Sharpness is greatly improved by the special optical design. Printed characters such as barcodes can be captured clearly
・ It can be installed in a space smaller than the housing size of only 8 mm
・ With a rich lineup of light emitting surfaces of 50 × 50 to 200 × 200 mm, the ideal shape can be selected.
・ The brightness is 6 times higher than before, so it can be used with high-speed shuttersStandard Price: MYR 7,477.38- Days to Ship: 19 Day(s) or more -
Dome Light (White/Red/Blue) for External Appearance Inspection of Uneven Surfaces, Etc.
CST
CST is one of the leading manufacturer of LED lighting for image processing equipment in China. The manufacturer has been providing stable quality products for a long time.
Standard Price: MYR 1,923.61- Days to Ship: 24 Day(s) or more -
Surface Light (White/Red/Blue) for Liquid Inspection, Etc.
CST
CST is one of the leading manufacturer of LED lighting for image processing equipment in China. The manufacturer has been providing stable quality products for a long time.
Standard Price: MYR 1,113.34- Days to Ship: 24 Day(s) or more -
Coaxial Epi-Illumination (White/Red/Blue) for Uneven Reflection Reduction
CST
CST is one of the leading manufacturer of LED lighting for image processing equipment in China. The manufacturer has been providing stable quality products for a long time.
Standard Price: MYR 2,630.84- Days to Ship: 24 Day(s) or more
![Dedicated Light Units For Image Processing [FLV]](http://pre-my.misumi-ec.com/linked/material/mech/OMR1/PHOTO/221302232377_002.jpg?$product_view_b$)
| Brand |
|---|
| Product Series |
| CAD |
| Days to Ship |
| Light Type |
| Main Body Type |
| Emitting Color |
| Irradiation Direction |
| Light Source |
| Irradiation Light Type |
| External Dimension D (Range)(mm) |
| Width W (Range)(mm) |
| Length L (Range)(mm) |
| Power Consumption (Range)(W) |
| Center Hole Size d (Range)(mm) |
| Height H (Range)(mm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| Brand | MISUMI | CST | IMAC | IMAC | IMAC | CST | MISUMI | MIRUC OPTICAL | IMAC | IMAC | MORITEX | U-TECHNOLOGY | OMRON | CST | MISUMI | KONDO SEISAKUSHO | MIRUC OPTICAL | MIRUC OPTICAL | MIRUC OPTICAL | MIRUC OPTICAL | IMAC | IMAC | IMAC | IMAC | IMAC | IMAC | IMAC | IMAC | IMAC | IMAC | IMAC | SHIMATEC | SHIMATEC | SHIMATEC | SHIMATEC | SHIMATEC | SHIMATEC | SHIMATEC | IMAC | OMRON | IMAC | IMAC | CST | CST | CST |
| Product Series | LED Ring Light Compliant With Uniform Light Emission and Testings (White/Red/Blue) | Shadowless Ring Lighting (White/Red/Blue) for Electronic Component Inspection, Etc. | White LED lighting equipment ML-TV3 (for coaxial epi‐illumination) | Square Edgelight Illuminator (Surface Emitting, Thin Type) IFLA/IFL Series | Chip LED Surface Illumination (Surface Emitting) IDHM Series | Shadowless Low-Angle Ring Illumination (Indirect Light) IPR Series | Low Cost Type Surface Emission (for Transmission) Light VDFK Series | Dome Light (White/Red/Blue) for External Appearance Inspection of Uneven Surfaces, Etc. | Coaxial Epi-Illumination (White/Red/Blue) for Uneven Reflection Reduction | ||||||||||||||||||||||||||||||||||||
| CAD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||||||||||||
| Days to Ship | 4 Day(s) or more | 24 Day(s) or more | 8 Day(s) or more | 13 Day(s) or more | 18 Day(s) or more | 24 Day(s) or more | 11 Day(s) or more | 21 Day(s) or more | 8 Day(s) or more | 18 Day(s) or more | 64 Day(s) or more | 13 Day(s) or more | 9 Day(s) or more | 10 Day(s) or more | 4 Day(s) or more | 48 Day(s) or more | 6 Day(s) or more | 6 Day(s) or more | 6 Day(s) or more | 6 Day(s) or more | 8 Day(s) or more | 8 Day(s) or more | 13 Day(s) or more | 18 Day(s) or more | 8 Day(s) or more | 8 Day(s) or more | 8 Day(s) or more | 13 Day(s) or more | 18 Day(s) or more | 18 Day(s) or more | 18 Day(s) or more | 13 Day(s) or more | 13 Day(s) or more | 13 Day(s) or more | 13 Day(s) or more | 13 Day(s) or more | 13 Day(s) or more | 13 Day(s) or more | 13 Day(s) or more | 12 Day(s) or more | 8 Day(s) or more | 19 Day(s) or more | 24 Day(s) or more | 24 Day(s) or more | 24 Day(s) or more |
| Light Type | Visible Light | Visible Light | Visible Light | Visible Light | Ultraviolet Light | Visible Light | Visible Light / Infrared Ray | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Infrared Ray | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light | Visible Light |
| Main Body Type | Square Type | Ring Type | Ring Type | Bar Type | Ring Type / Square Type / Line Type | Ring Type | Ring Type | Spot Type | Spot Type | Ring Type | - | Ring Type | Ring Type / Square Hole Type / Square Type / Bar Type / Spot Type | Bar Type | Ring Type | - | Bar Type | Spot Type | Spot Type | Ring Type | Ring Type | Ring Type | Ring Type | Bar Type | Square Type | Square Type | Square Hole Type | Square Type | Ring Type / Square Type / Bar Type | Ring Type | Spot Type | Ring Type | Ring Type | Ring Type | Round Type | Square Hole Type | Square Type | Bar Type | Spot Type | Ring Type | Square Type | Round Type | Round Type | Square Type | Square Hole Type |
| Emitting Color | Red / White | Red / White / Blue | Red / White / Blue / Green | Red / White / Blue / Green | - | Red / White / Blue | Red / White / Blue | White | Red / White / Blue / Green | White / Blue / Green | Red | Blue | Red / White | Red / White / Blue | Red / White | White | White | White | White | White | Red / White / Blue / Green | Red / White / Blue / Green | Red / White / Blue / Green | Red | Red / White / Blue | Red | Red / Blue | Red / White / Blue / Green | - | White | Red / White / Blue / Green | Red / White / Blue / Green / Yellow | Red / White / Blue / Green | Red / White / Blue / Green | Red / White / Blue / Green | Red / White / Blue / Green | Red / White / Blue / Green | Red / White / Blue / Green | Red / White / Blue / Green | White | Red | Red / White / Blue | Red / White / Blue | Red / White / Blue | Red / White / Blue |
| Irradiation Direction | Backlight | - | Oblique Ray | Vertical Illumination | Vertical Illumination / Oblique Ray / Coaxial Vertical | - | Oblique Ray | Vertical Illumination | Coaxial Vertical | Vertical Illumination / Oblique Ray | Oblique Ray | Oblique Ray | Vertical Illumination / Oblique Ray / Backlight / Coaxial Vertical | - | Oblique Ray | Oblique Ray | Vertical Illumination | Vertical Illumination | Vertical Illumination | Vertical Illumination | Vertical Illumination | Oblique Ray | Oblique Ray | Vertical Illumination | Backlight | Backlight | Oblique Ray | Coaxial Vertical | Vertical Illumination / Oblique Ray / Coaxial Vertical | Oblique Ray | Vertical Illumination / Backlight | Vertical Illumination | Oblique Ray | Oblique Ray | Oblique Ray | Vertical Illumination | Coaxial Vertical | Vertical Illumination | Vertical Illumination | Oblique Ray | Coaxial Vertical | Vertical Illumination | - | - | - |
| Light Source | Self Emission Type | - | Self Emission Type | Self Emission Type | Self Emission Type | - | Self Emission Type | Fiber Head | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | - | Self Emission Type | - | Fiber Head | Fiber Head | Fiber Head | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | Self Emission Type | - | - | - |
| Irradiation Light Type | Surface Emitted Light | Diffused Light | Direct Light | Direct Light | Direct Light / Surface Emitted Light | Direct Light | Direct Light | Direct Light | Surface Emitted Light | Diffused Light | Direct Light | Light Collection | Direct Light / Surface Emitted Light / Reflected Light | Diffused Light | Direct Light | - | Direct Light | Direct Light | Direct Light | Diffused Light | Direct Light | Direct Light | Direct Light | Direct Light | Surface Emitted Light | Surface Emitted Light | Diffused Light | Surface Emitted Light | Direct Light / Surface Emitted Light | Diffused Light | Parallel Light | Diffused Light | Diffused Light | Diffused Light | Reflected Light | Surface Emitted Light | Surface Emitted Light | Direct Light | Direct Light | Direct Light | Reflected Light | Surface Emitted Light | Diffused Light | Diffused Light | Diffused Light |
| External Dimension D (Range)(mm) | - | - | 30.1~50 / 50.1~80 / 80.1~100 / 100.1~130 / 130.1~150 | - | 30.1~50 / 50.1~80 | - | 30.1~50 / 50.1~80 / 80.1~100 / 100.1~130 / 130.1~150 | - | 10~30 | 100.1~130 / 130.1~150 | 50.1~80 | 80.1~100 | 10~30 / 30.1~50 / 50.1~80 / 80.1~100 / 100.1~130 | - | 10~30 / 30.1~50 / 50.1~80 / 80.1~100 | - | - | - | - | - | 30.1~50 / 50.1~80 / 80.1~100 | 30.1~50 / 50.1~80 / 80.1~100 / 100.1~130 / 130.1~150 / 150.1~200 | 50.1~80 / 80.1~100 / 100.1~130 / 150.1~200 | - | - | - | - | - | 30.1~50 / 50.1~80 / 80.1~100 | 80.1~100 | 30.1~50 | 80.1~100 / 130.1~150 / 150.1~200 | 10~30 / 30.1~50 / 50.1~80 / 80.1~100 / 100.1~130 / 130.1~150 / 150.1~200 | 10~30 / 30.1~50 / 50.1~80 / 80.1~100 / 100.1~130 / 130.1~150 / 150.1~200 | 50.1~80 / 100.1~130 / 150.1~200 / 200~ | - | - | - | 10~30 | 80.1~100 | - | - | - | - | - |
| Width W (Range)(mm) | 25.1~40 / 60.1~80 / 80.1~100 | - | - | 25.1~40 / 40.1~60 / 60.1~80 / 80.1~100 / 100.1~150 / 200.1~250 / 250.1~ | 40.1~60 / 60.1~80 | - | - | - | 10~25 / 25.1~40 / 40.1~60 | - | - | - | 10~25 / 25.1~40 / 40.1~60 / 60.1~80 / 100.1~150 | - | - | - | - | - | - | - | - | - | - | 150.1~200 | 25.1~40 / 40.1~60 / 80.1~100 | 40.1~60 / 60.1~80 / 100.1~150 | 25.1~40 / 40.1~60 / 60.1~80 / 80.1~100 | 40.1~60 / 60.1~80 / 80.1~100 / 100.1~150 | 60.1~80 / 80.1~100 / 100.1~150 | - | 40.1~60 / 60.1~80 / 100.1~150 | - | - | - | - | 100.1~150 / 150.1~200 / 200.1~250 / 250.1~ | 60.1~80 / 80.1~100 / 100.1~150 | 40.1~60 / 100.1~150 / 150.1~200 / 200.1~250 / 250.1~ | 25.1~40 | - | 80.1~100 | 80.1~100 / 100.1~150 / 150.1~200 / 200.1~250 | - | - | - |
| Length L (Range)(mm) | 30.1~50 ～ 80.1~100 | - | - | 10~30 ～ 100.1~150 | 10~30 ～ 30.1~50 | - | - | - | - | - | - | - | 30.1~50 ～ 400.1~600 | - | - | - | - | - | - | - | - | - | - | 50.1~80 | 30.1~50 ～ 50.1~80 | 30.1~50 ～ 80.1~100 | 30.1~50 ～ 80.1~100 | 10~30 ～ 80.1~100 | 10~30 ～ 30.1~50 | - | - | - | - | - | - | 100.1~150 ～ 200.1~250 | 30.1~50 ～ 100.1~150 | 10~30 | - | - | 50.1~80 | - | - | - | - |
| Power Consumption (Range)(W) | 4.1~5 ～ 50.1~80 | - | 1.1~2 ～ 10.1~20 | 0.1~1 ～ 20.1~30 | 2.1~3 ～ 5.1~6 | - | 10.1~20 ～ 50.1~80 | - | 0.1~1 | 4.1~5 ～ 6.1~8 | 4.1~5 | 10.1~20 | 0.1~1 ～ 20.1~30 | - | 2.1~3 ～ 20.1~30 | - | - | - | - | - | 1.1~2 ～ 10.1~20 | 2.1~3 ～ 10.1~20 | 2.1~3 ～ 5.1~6 | 10.1~20 | 0.1~1 ～ 2.1~3 | 1.1~2 ～ 10.1~20 | 4.1~5 ～ 10.1~20 | 0.1~1 ～ 10.1~20 | 1.1~2 ～ 4.1~5 | 6.1~8 | - | 1.1~2 ～ 6.1~8 | 0.1~1 ～ 10.1~20 | 0.1~1 ～ 10.1~20 | 4.1~5 ～ 20.1~30 | 6.1~8 ～ 20.1~30 | 2.1~3 ～ 20.1~30 | 1.1~2 ～ 10.1~20 | - | 8.1~10 | 10.1~20 | 8.1~10 ～ 30.1~40 | - | - | - |
| Center Hole Size d (Range)(mm) | - | - | 5~20 / 20.1~30 / 30.1~40 / 50.1~70 / 70.1~100 | - | 20.1~30 / 40.1~50 | - | 5~20 / 30.1~40 / 40.1~50 / 50.1~70 / 70.1~100 | - | - | 30.1~40 / 40.1~50 | 30.1~40 | 40.1~50 | 5~20 / 20.1~30 / 30.1~40 / 40.1~50 / 50.1~70 | - | 5~20 / 30.1~40 / 50.1~70 | - | - | - | - | 5~20 | 5~20 / 30.1~40 / 40.1~50 | 5~20 / 20.1~30 / 40.1~50 / 50.1~70 / 101~130 / 131~200 | 40.1~50 / 50.1~70 / 70.1~100 / 101~130 | - | - | - | - | - | 20.1~30 / 30.1~40 / 40.1~50 | 70.1~100 | - | 20.1~30 / 40.1~50 | 5~20 / 30.1~40 / 40.1~50 / 50.1~70 / 70.1~100 / 131~200 | 5~20 / 30.1~40 / 40.1~50 / 50.1~70 / 70.1~100 / 131~200 | 5~20 / 20.1~30 / 30.1~40 / 40.1~50 | - | - | - | - | 40.1~50 | - | - | - | - | - |
| Height H (Range)(mm) | 5~15 / 20.1~30 | - | 5~15 / 15.1~20 / 20.1~30 | 5~15 / 20.1~30 / 30.1~40 | 15.1~20 / 20.1~30 / 40.1~70 | - | 5~15 / 15.1~20 / 20.1~30 | - | - | 5~15 / 15.1~20 | 15.1~20 | 15.1~20 | 5~15 / 15.1~20 / 30.1~40 / 40.1~70 / 70.1~100 | - | 5~15 / 15.1~20 | - | - | - | - | - | 5~15 / 15.1~20 | 15.1~20 / 20.1~30 | 5~15 | 30.1~40 | 5~15 | 5~15 | 20.1~30 | 15.1~20 / 20.1~30 / 30.1~40 / 40.1~70 / 70.1~100 | 15.1~20 / 20.1~30 / 40.1~70 | 30.1~40 | - | 5~15 | 15.1~20 / 20.1~30 / 30.1~40 | 15.1~20 / 20.1~30 / 30.1~40 | 30.1~40 / 40.1~70 / 70.1~100 / 101~ | 15.1~20 | 30.1~40 / 40.1~70 / 70.1~100 | 15.1~20 | - | 15.1~20 | 40.1~70 | 5~15 | - | - | - |
![Dedicated Light Units For Image Processing [FLV]](http://pre-my.misumi-ec.com/linked/material/mech/OMR1/PHOTO/221302232377_002.jpg?$product_view_c$)
Loading...
Configure
Specification/Dimensions
-
Light Type
-
Main Body Type
-
Emitting Color
-
Irradiation Direction
-
Light Source
-
Irradiation Light Type
-
External Dimension D (Range)(mm)
-
Width W (Range)(mm)
-
Length L (Range)(mm)
-
Power Consumption (Range)(W)
-
Center Hole Size d (Range)(mm)
-
Height H (Range)(mm)
Narrow search by specifying Manufacturer
CAD
-
- 2D
- 3D
Related Categories to Lamp Fixtures for Inspection
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
