Timing Belt
| Days to Ship |
|
|---|
-
- Recommendation
MISUMI

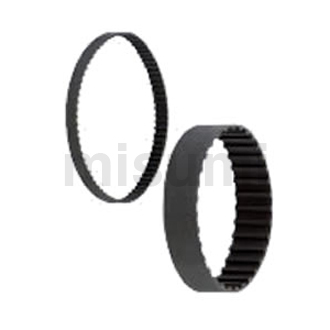

Timing Belts S5M
It is a circular tooth profile timing belt. This belt always uses for high torque transmission in an automation machine
[Features]
• Belt Shape: Closed End
• Belt Tooth Type: S5M (round tooth profile)
• Tooth Pitch: 5 mm.
• Belt Width: 10, 15 and 20 mm.
• Circumference Length Shortest/Longest: 225 mm. and 3580 mm.
• Belt Operating Temperature Range: -30 to 90℃.
• Material:
Tooth rubber: Chloroprene
Core wire: Glass Fiber
Backing cloth layer: Nylon canvas
[Applications]
Suitable for use with a timing pulley in a transmission system in an automation machine- Volume Discount
- RoHS
Standard Price: MYR 5.76- Days to Ship: 1 Day(s) or more -
- Recommendation
MISUMI

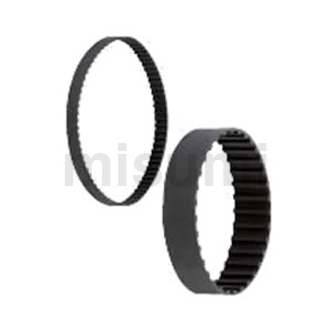

Timing Belts S3M
It is a circular tooth profile rubber timing belt. This belt always uses for high torque transmission in an automation machine
[Features]
• Belt Shape: Closed End
• Belt Tooth Type: S3M (circular tooth profile)
• Tooth Pitch: 3 mm.
• Belt Width: 6, 10, and 15 mm.
• Circumference Length Shortest/Longest: 120 mm. and 3210 mm.
• Belt Operating Temperature Range: －30 to 90℃.
• Material:
Tooth rubber: Chloroprene
Core wire: Glass Fiber
Backing cloth layer: Nylon canvas
[Applications]
Suitable for use with a timing pulley in a transmission system in an automation machine- Volume Discount
- RoHS
Standard Price: MYR 3.33- Days to Ship: 1 Day(s) or more -
MISUMI

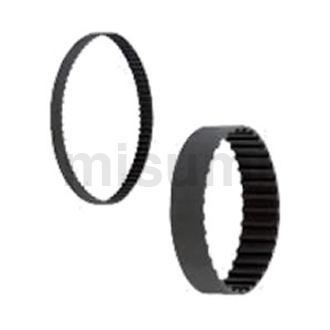

Timing Belts T5
It is a trapezoidal tooth profile timing belt. This belt always uses for regular torque transmission in an automation machine
[Features]
• Belt Shape: Closed End
• Belt Tooth Type: T5 (trapezoidal tooth profile)
• Tooth Pitch: 5 mm.
• Belt Width: 10, 15, 20, 25 and 50 mm.
• Circumference Length Shortest/Longest: 185 mm. and 1630 mm.
• Belt Operating Temperature Range: 0 to 80℃.
• Material:
Tooth rubber: Chloroprene
Core wire: Glass Fiber
[Applications]
Suitable for use with a timing pulley in a transmission system in an automation machine- Volume Discount
- RoHS
Standard Price: MYR 4.38- Days to Ship: 1 Day(s) or more -
MISUMI

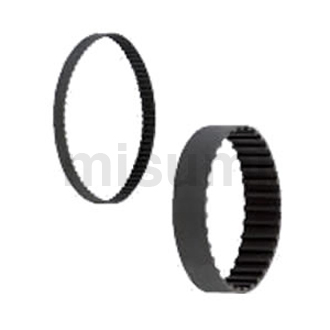

Timing Belts T10
It is a trapezoidal tooth profile timing belt. This belt always uses for regular torque transmission in an automation machine
[Features]
• Belt Shape: Closed End
• Belt Tooth Type: T10 (trapezoidal tooth profile)
• Tooth Pitch: 10 mm.
• Belt Width: 15, 25, 30, 40 and 50 mm.
• Circumference Length Shortest/Longest: 320 mm. and 3500 mm.
• Belt Operating Temperature Range: 0 to 80℃.
• Material:
Tooth rubber: Chloroprene
Core wire: Glass Fiber
[Applications]
Suitable for use with a timing pulley in a transmission system in an automation machine- Volume Discount
- RoHS
Standard Price: MYR 9.03- Days to Ship: 1 Day(s) or more -
MISUMI
Timing Belts S8M
It is a round tooth profile rubber timing belt. This belt always uses for high torque transmission in an automation machine
[Features]
• Belt Shape: Closed End
• Belt Tooth Type: S8M (round tooth profile)
• Tooth Pitch: 8 mm.
• Belt Width: 15, 25, 30 and 40 mm.
• Circumference Length Shortest/Longest: 400 mm. and 4400 mm.
• Belt Operating Temperature Range: －30 to 90℃.
• Material:
Tooth rubber: Chloroprene
Core wire: Glass Fiber
Backing cloth layer: Nylon canvas
[Applications]
Suitable for use with a timing pulley in a transmission system in an automation machine- Volume Discount
- RoHS
Standard Price: MYR 11.19- Days to Ship: 1 Day(s) or more -
MISUMI
Timing Belts HTD3M
It is an arc tooth profile that has higher transmission power than the trapezoidal tooth timing belt.
This belt always uses for high torque transmission in an automation machine
[Features]
• Belt Shape: Closed End
• Belt Tooth Type: H3M (arc tooth profile)
• Tooth Pitch: 3 mm.
• Belt Width: 6, 9, 12, and 15 mm.
• Circumference Length Shortest/Longest: 90 mm. and 5100 mm.
• Belt Operating Temperature Range: －10 to 90℃.
• Material:
Tooth rubber: Chloroprene
Core wire: Glass Fiber
Tooth surface protection layer: Nylon canvas
[Applications]
Suitable for use with a timing pulley in a transmission system in an automation machine- Volume Discount
- RoHS
Standard Price: MYR 2.18- Days to Ship: 1 Day(s) or more -
MISUMI
Timing Belts HTD8M
It is an arc tooth profile that has higher transmission power than the trapezoidal tooth timing belt.
This belt always uses for high torque transmission in an automation machine
[Features]
• Belt Shape: Closed End
• Belt Tooth Type: H8M (arc tooth profile) • Tooth Pitch: 8 mm.
• Belt Width: 20, 25, 30, 40, 50 and 85 mm.
• Circumference Length Shortest/Longest: 288 mm. and 5120 mm.
• Belt Operating Temperature Range: －10 to 90℃.
• Material:
Tooth rubber: Chloroprene
Core wire: Glass Fiber
Tooth surface protection layer: Nylon canvas
[Applications]
Suitable for use with a timing pulley in a transmission system in an automation machine- Volume Discount
- RoHS
Standard Price: MYR 15.16- Days to Ship: 1 Day(s) or more -
Days to Ship: 13 Day(s) -
MISUMI
Timing Belts XL
It is a trapezoidal tooth profile timing belt. This belt always uses for regular torque transmission in an automation machine
[Features]
• Belt Shape: Closed End
• Belt Tooth Type: XL (trapezoidal tooth profile)
• Tooth Pitch: 5.08 mm.
• Belt Width: 6.4, 7.9, 9.5 and 12.7 mm.
• Circumference Length Shortest/Longest: 152.4 mm. and 2448.56 mm.
• Belt Operating Temperature Range: -30 to 90℃.
• Material:
Tooth rubber: Chloroprene
Core wire: Glass Fiber
Tooth surface protection layer: Nylon canvas
[Applications]
Suitable for use with a timing pulley in a transmission system in an automation machine- Volume Discount
- RoHS
Standard Price: MYR 5.73- Days to Ship: 1 Day(s) or more -
MISUMI
This is an economy item, The price is cheaper than the MISUMI standard product.
- Volume Discount
- RoHS
Standard Price: MYR 1.64- Days to Ship: 1 Day(s) or more -
Clamp Plates for Open End Belts S Type
MISUMI

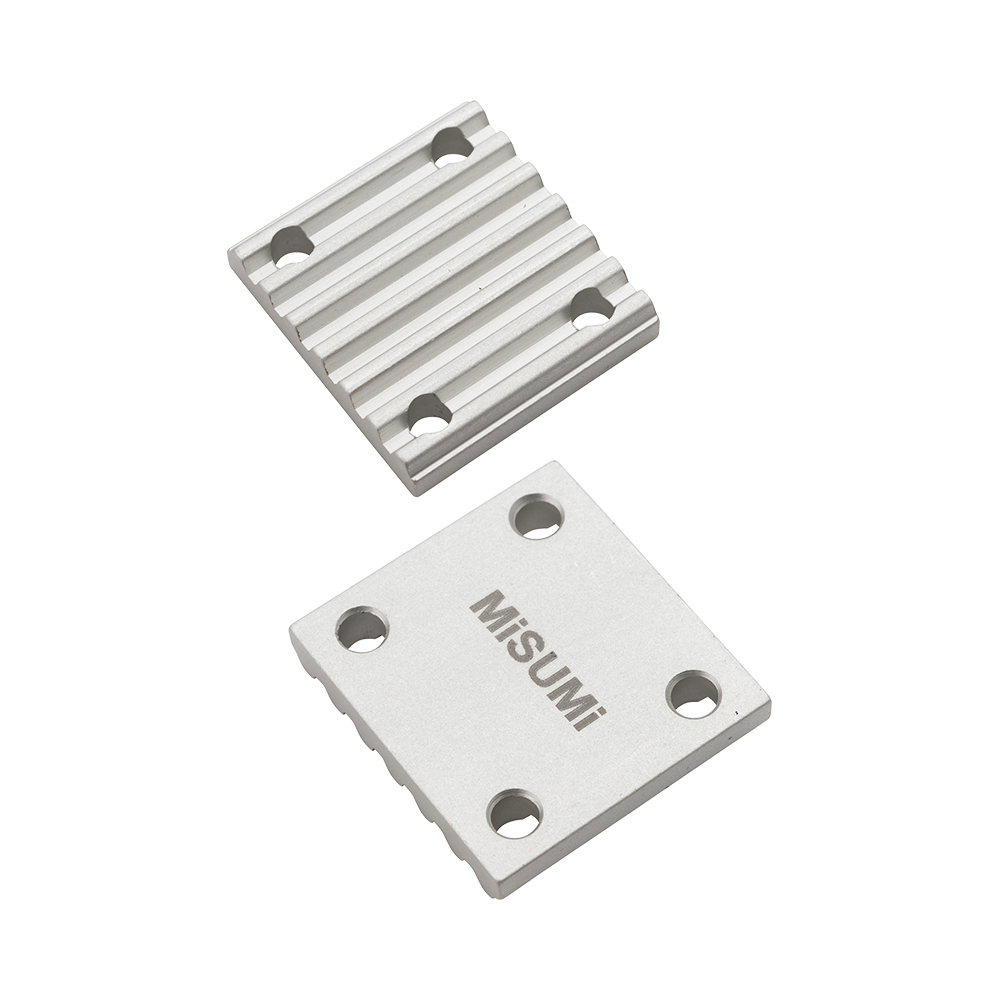

Clamp Plates for Open End Belts S Type
It is a equipemt for connect the open end timing belt to become a closed end timing belt
[Features]
• Usage: Connect open end timing belt
• Suitable for belt width: 6, 10, 15, 25, 30 and 40 mm.
• Suitable for belt tooth profile: S3M , S5M and S8M
• Material: Aluminum 6061
[Applications]
Suitable for connect open end timing belt to achieve the purpose of transmission.- Volume Discount
- RoHS
Standard Price: MYR 10.30- Days to Ship: 1 Day(s) or more -
Days to Ship: 13 Day(s) -
MISUMI
HTD arc tooth, with higher transmission power than trapezoidal tooth, is economical and maintenance free.
- Volume Discount
- RoHS
Standard Price: MYR 4.50- Days to Ship: 1 Day(s) or more -
MISUMI
Timing Belts MXL
It is a trapezoidal tooth profile timing belt. This belt always uses for regular torque transmission in an automation machine
[Features]
• Belt Shape: Closed End
• Belt Tooth Type: MXL (trapezoidal tooth profile)
• Tooth Pitch: 2.032 mm.
• Belt Width: 4.8, 6.4, 9.5 and 12.7 mm.
• Circumference Length Shortest/Longest: 91.44 mm. and 2972.82 mm.
• Belt Operating Temperature Range: -30 to 90℃.
• Material:
Tooth rubber: Chloroprene
Core wire: Glass Fiber
Tooth surface protection layer: Nylon canvas
[Applications]
Suitable for use with a timing pulley in a transmission system in an automation machine- Volume Discount
- RoHS
Standard Price: MYR 1.37- Days to Ship: 1 Day(s) or more -
Standard Price: MYR 11.00- Days to Ship: 1 Day(s) or more -
MISUMI
Timing Belts L.
It is a trapezoidal tooth profile timing belt. This belt always uses for regular torque transmission in an automation machine
[Features]
• Belt Shape: Closed End
• Belt Tooth Type: L (trapezoidal tooth profile)
• Tooth Pitch: 9.525 mm.
• Belt Width: 12.7, 19.1, 25.4, and 38.1 mm.
• Circumference Length Shortest/Longest: 247.65 mm. and 4257.68 mm.
• Belt Operating Temperature Range: －30 to 90℃.
• Material:
Tooth rubber: Chloroprene
Core wire: Glass Fiber
Tooth surface protection layer: Nylon canvas
[Applications]
Suitable for use with a timing pulley in a transmission system in an automation machine- Volume Discount
- RoHS
Standard Price: MYR 6.32- Days to Ship: 1 Day(s) or more -
MISUMI
Economy series products, please order more than 4 pcs.
- Volume Discount
- RoHS
Standard Price: MYR 9.80- Days to Ship: 1 Day(s) or more -
Days to Ship: 13 Day(s) -
Standard Price: MYR 17.00- Days to Ship: 10 Day(s) -
Days to Ship: 13 Day(s) -
Standard Price: MYR 107.08- Days to Ship: 10 Day(s) -
Standard Price: MYR 16.66- Days to Ship: 10 Day(s) or more -
MISUMI
Economy series products, please order more than 4 pcs.
- Volume Discount
- RoHS
Standard Price: MYR 9.42- Days to Ship: 12 Day(s) -
MISUMI
Economy series products, please order more than 4 pcs.
- Volume Discount
- RoHS
Standard Price: MYR 9.00- Days to Ship: 12 Day(s) -
MISUMI
Economy series products, please order more than 4 pcs.
- Volume Discount
- RoHS
Standard Price: MYR 19.42- Days to Ship: 12 Day(s) -
MISUMI
Economy series products, please order more than 4 pcs.
- Volume Discount
- RoHS
Standard Price: MYR 9.00- Days to Ship: 12 Day(s) -
MISUMI
Economy series products, please order more than 4 pcs.
- Volume Discount
- RoHS
Standard Price: MYR 9.00- Days to Ship: 12 Day(s)
| Brand |
|---|
| Product Series |
| CAD |
| Days to Ship |
| Specifications |
| Belt Series |
| Belt Shape |
| Nominal Width W (mm)(mm) |
| Belt Material |
| Belt Tooth Surface |
| Core Wire Material |
| Nominal Width W (inch)(Inch) |
| Belt Shape Type |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| Brand | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI |
| Product Series | |||||||||||||||||||||||||||
| CAD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
| Days to Ship | 1 Day(s) or more | 1 Day(s) or more | 1 Day(s) or more | 1 Day(s) or more | 1 Day(s) or more | 1 Day(s) or more | 1 Day(s) or more | 13 Day(s) | 1 Day(s) or more | 1 Day(s) or more | 1 Day(s) or more | 13 Day(s) | 1 Day(s) or more | 1 Day(s) or more | 1 Day(s) or more | 1 Day(s) or more | 1 Day(s) or more | 13 Day(s) | 10 Day(s) | 13 Day(s) | 10 Day(s) | 10 Day(s) or more | 12 Day(s) | 12 Day(s) | 12 Day(s) | 12 Day(s) | 12 Day(s) |
| Specifications |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Belt Series | S5M | S3M | T5 | T10 | S8M | 3M | HTD 8M | S3M / S5M / S8M | XL | S2M | S3M / S5M / S8M | T5 / T10 | 5M | MXL | T5 / T10 | L | H | 3M / 5M / 8M | P8M | XL / L / H | S14M | P5M | S5M | S3M | S8M | MXL | S2M |
| Belt Shape | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Open End | Closed End | Closed End | Belt Clamp Plates | Open End | Closed End | Closed End | Belt Clamp Plates | Closed End | Closed End | Open End | Closed End | Open End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End | Closed End |
| Nominal Width W (mm)(mm) | 10 ～ 25 | 6 ～ 15 | 10 ～ 25 | 15 ～ 50 | 15 ～ 40 | 6 ～ 15 | 20 ～ 85 | 6 ～ 40 | 6.4 ～ 12.7 | 4 ～ 10 | 6 ～ 40 | 10 ～ 50 | 9 ～ 30 | 4.8 ～ 12.7 | 10 ～ 30 | 12.7 ～ 38.1 | 19.1 ～ 50.8 | 6 ～ 40 | 15 ～ 25 | 6.4 ～ 50.8 | 40 ～ 60 | 10 ～ 15 | 10 ～ 25 | 6 ～ 15 | 15 ～ 40 | 4.8 ～ 12.7 | 4 ～ 10 |
| Belt Material | Rubber Belt | Rubber Belt | Rubber Belt | Rubber Belt | Rubber Belt | Rubber Belt | Rubber Belt | Polyurethane Belt | Rubber Belt | Rubber Belt | - | Polyurethane Belt | Rubber Belt | Rubber Belt | - | Rubber Belt | Rubber Belt | Polyurethane Belt | Rubber Belt | Polyurethane Belt | Rubber Belt | Rubber Belt | Rubber Belt | Rubber Belt | Rubber Belt | Rubber Belt | Rubber Belt |
| Belt Tooth Surface | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | - | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | - | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) | Standard (Single Sided) |
| Core Wire Material | Glass Fiber | Glass Fiber | Glass Fiber | Glass Fiber | Glass Fiber | Glass Fiber | Glass Fiber | Steel Cord | Glass Fiber | Glass Fiber | - | Steel Cord | Glass Fiber | Glass Fiber | - | Glass Fiber | Glass Fiber | Steel Cord | Glass Fiber | Steel Cord | Glass Fiber | Glass Fiber | Glass Fiber | Glass Fiber | Glass Fiber | Glass Fiber | Glass Fiber |
| Nominal Width W (inch)(Inch) | - | - | - | - | - | - | - | - | 0.25 ～ 0.5 | - | - | - | - | 0.19 ～ 0.5 | - | 0.5 ～ 1.5 | 0.75 ～ 2 | - | - | 25 ～ 200 | - | - | - | - | - | 0.19 ～ 0.5 | - |
| Belt Shape Type | Round Tooth Profile Super Torque | Round Tooth Profile Super Torque | Trapezoidal Tooth Profile Metric Type | Trapezoidal Tooth Profile Metric Type | Round Tooth Profile Super Torque | Circular Tooth Profile HTD Belt | Circular Tooth Profile HTD Belt | Round Tooth Profile Super Torque | Trapezoidal Tooth Profile Circular Type | Round Tooth Profile Super Torque | - | Trapezoidal Tooth Profile Circular Type | Circular Tooth Profile HTD Belt | Trapezoidal Tooth Profile Circular Type | - | Trapezoidal Tooth Profile Circular Type | Trapezoidal Tooth Profile Circular Type | Circular Tooth Profile HTD Belt | Circular Tooth Profile PX Belt | Trapezoidal Tooth Profile Circular Type | Round Tooth Profile Super Torque | Circular Tooth Profile PX Belt | Round Tooth Profile Super Torque | Round Tooth Profile Super Torque | Round Tooth Profile Super Torque | Trapezoidal Tooth Profile Circular Type | Round Tooth Profile Super Torque |
Loading...
Configure
Specification/Dimensions
-
Belt Series
-
Belt Shape
-
Nominal Width W (mm)(mm)
-
Belt Material
-
Belt Tooth Surface
-
Standard (Single Sided)
-
Double (Both Sided)
-
Standard (Single Sided)
-
Core Wire Material
-
Nominal Width W (inch)(Inch)
-
Belt Shape Type
Narrow search by specifying Manufacturer
-
- UNITTA (28)
- MITSUBOSHI BELTING (16)
- NABEYA BI-TECH (5)
- NOK (3)
- BANDO CHEMICAL (2)
- KATAYAMA CHAIN (2)
CAD
-
- 2D
- 3D
Related Categories to Timing Belt
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
