5 Series - Aluminum Frames 20, 25, 40 Square
| Days to Ship |
|
|---|
-
8 Series Aluminum Frame - Square 40x40mm, 4 Side Slots, A6N01SS-T5 Aluminum
MISUMI
Aluminum Frame 8 Series /Slot width 10/ 40x40 mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Square.
● Slot width : 10 mm. /1 slot
● Cross-section : 40 mm. X 40 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5, A6061SS-T6 Equivalent, A6063S-T5 and A6063S-T6 Equivalent
● Surface treatment: Clear/ Black Anodize, Clear Coating
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 4 Day(s) or more -
Days to Ship: 2 Day(s) or more -
6 Series Aluminum Frame - Square 30x30mm, 4 Side Slots, A6N01SS-T5 Aluminum
MISUMI
Aluminum Frame 6 Series /Slot width 8/ 30x30 mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Square.
● Slot width : 8 mm. /1 slot
● Cross-section : 30 mm. X 30 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5, A6061SS-T6 Equivalent, A6063S-T5 and A6063S-T6 Equivalent
● Surface treatment: Clear/ Black Anodize, Clear Coating
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 2 Day(s) or more -
Aluminum Frame 8 Series Rectangular 40 × 80 mm 4 Side Slots - A6N01SS-T5 Aluminum
MISUMI
Aluminum Frame 8 Series/ Slot width 10/40x80mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Rectangle.
● Slot width : 10 mm. /1 slot
● Cross-section : 40 mm. X 80 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5, A6061SS-T6 Equivalent, A6063S-T5 and A6063S-T6 Equivalent
● Surface treatment: Clear/ Black Anodize, Clear Coating
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 2 Day(s) or more -

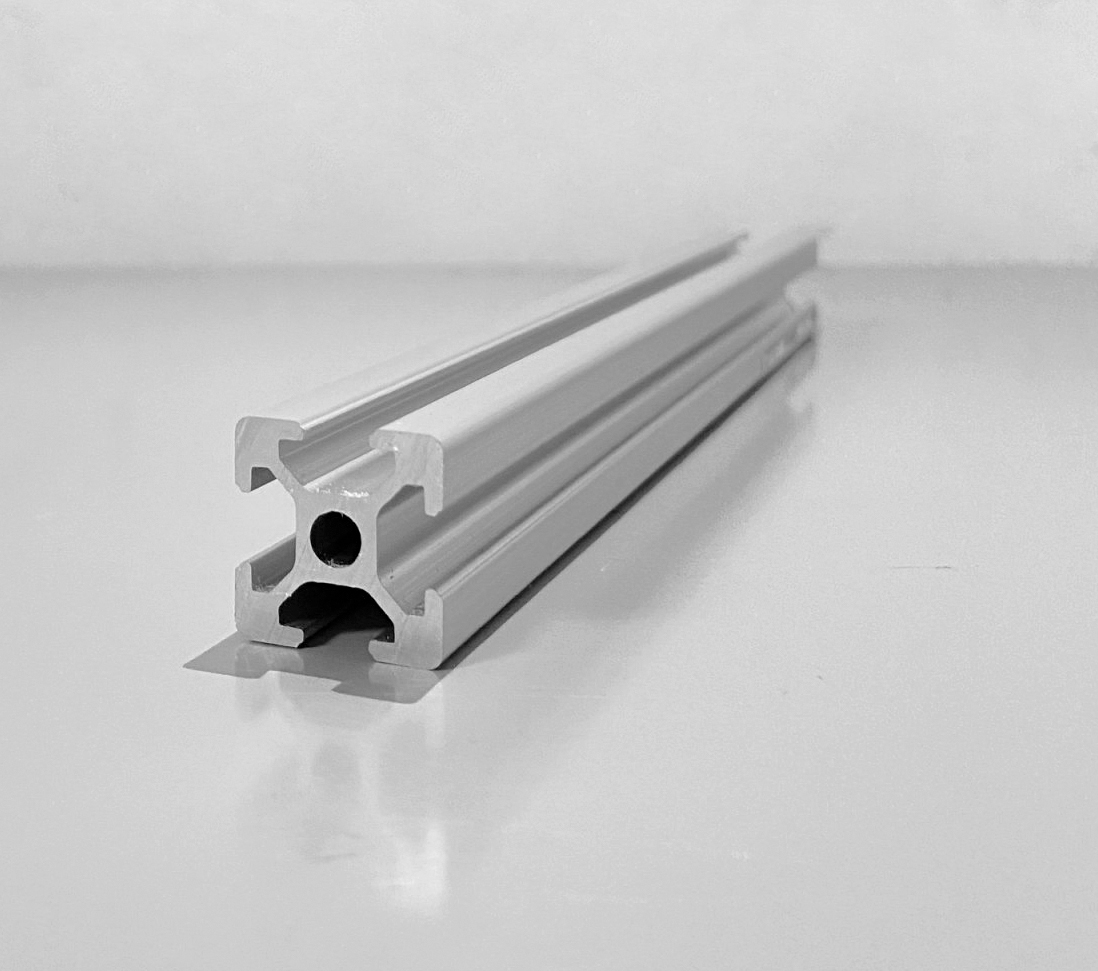

5 Series Aluminum Frame - Square 20x20mm, 4 Side Slots, A6N01SS-T5 Aluminum
MISUMI
Aluminum Frame 5 Series/Slot width 6/20x20mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Square.
● Slot width : 6 mm. /1 slot
● Cross-section : 20 mm. X 20 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T and A6063S-T5
● Surface treatment: Clear/ Black Anodize, Clear Coating
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 2 Day(s) or more -

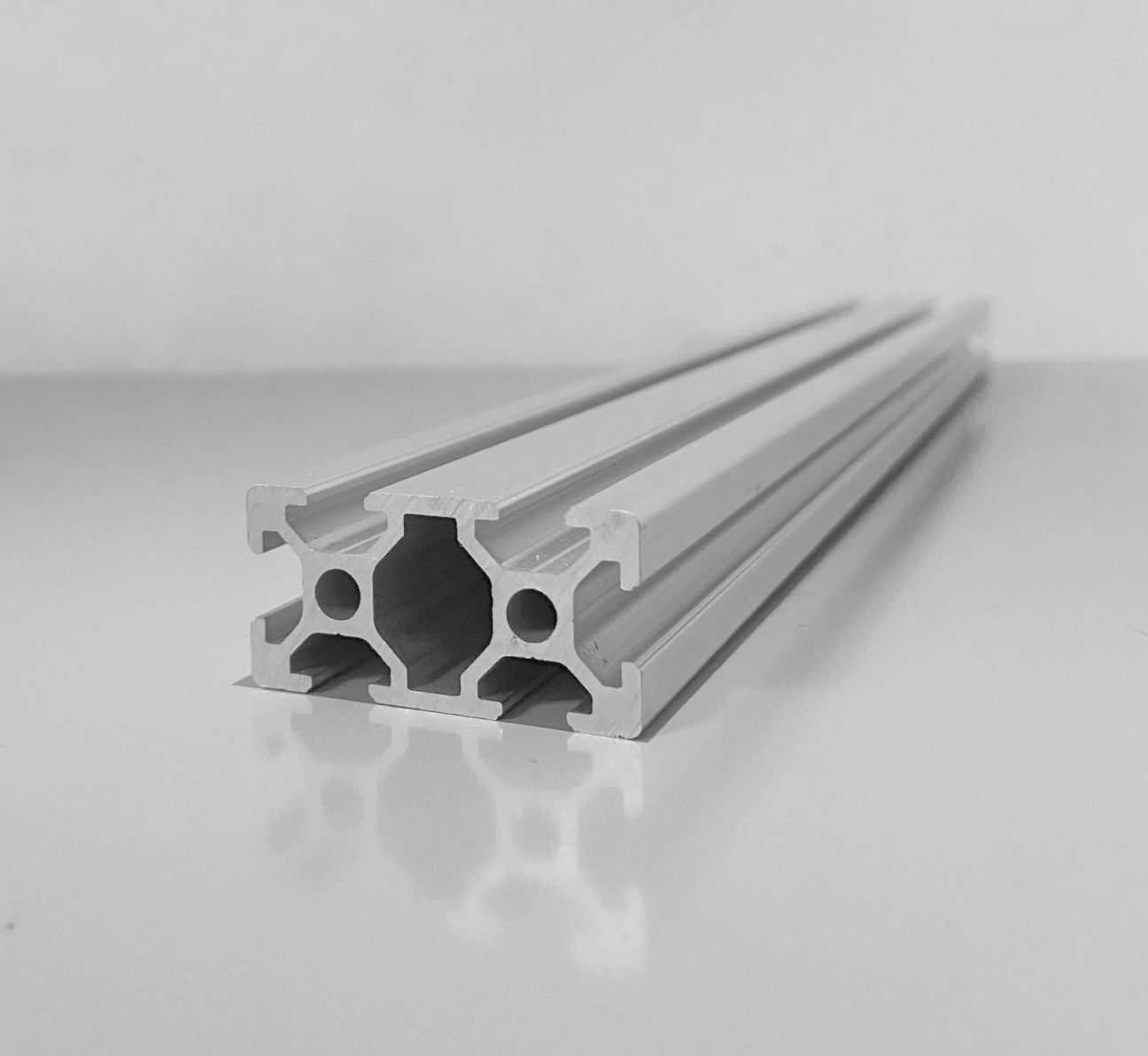

Aluminum Frame 5 Series Rectangular 20 × 40 mm 4 Side Slots - A6N01SS-T5 Aluminum
MISUMI
Aluminum Frame 5 Series/ Slot width 6/20x40mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Rectangle.
● Slot width : 6 mm. / width side 1 slot and long side 2 slots
● Cross-section : 20 mm. X 40 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6063S-T5
● Surface treatment: Clear/ Black Anodize, Clear Coating
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 2 Day(s) or more -
Days to Ship: 11 Day(s) -
Days to Ship: 2 Day(s) or more -
6 Series Aluminum Frame - Square 60x60mm, 4 Side Slots, A6N01SS-T5 Aluminum
MISUMI
Aluminum Frame 6 Series/ Slot width 8/60x60mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Square
● Slot width : 8 mm. / 2 slot per side
● Cross-section : 60 mm. X 60 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6063S-T5
● Surface treatment: Clear/ Black Anodize, Clear Coating
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 7 Day(s) or more -
8-45 Series Aluminum Frame - Square 45x45mm, 2 Side Slots, A6N01SS-T5 Aluminum
MISUMI
Aluminum Frame Series 8-45, Square shape 45 x 45mm, 2- Side Slots with Slot width 10mm
Surface treatment is not applied to cut surfaces and additional machining parts.- Volume Discount
Days to Ship: 10 Day(s) or more -
5 Series Aluminum Frame - 20x60mm/20x80mm, 6mm Slot Width
MISUMI
Aluminum Frame 5 Series/ Slot width 6/ 20x60 mm. and 20x80mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Rectangle.
● Slot width : 6 mm.
● Cross-section : have 2 types
- 20 mm. X 60 mm.
number of width slot = 1 slot
number of length slot = 3 slots
- 20 mm. X 80 mm.
number of width slot = 1 slot
number of length slot = 4 slots
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6063S-T5
● Surface treatment: Clear Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 5 Day(s) or more -
Aluminum Frame 8 Series/slot width 10/40x80mm, Parallel Surfacing
MISUMI
Aluminum Frame 8 Series/slot width 10/40x80mm, Parallel Surfacing
Aluminum profile is a device used to build machine structures. It is available in various sizes, cross-sectional shapes, and with different types of surface treatments to choose from. Moreover, it comes with a milled surface.
[Feature]
● Shape : Rectangle
● Slot width :10 mm.
● Cross-section : 40x80 mm. and 80x40 mm.
● Overall length :The size is configurable between 100 and 3000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6061SS-T6 Equivalent
● Surface treatment: Clear Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.Days to Ship: 12 Day(s) or more -
8 Series Aluminum Frame - Square 80x80mm, 4 Side Slots, A6N01SS-T5 Aluminum
MISUMI
Aluminum Frame 8 Series/ Slot width 10/80x80mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Square
● Slot width : 10 mm. / 1 slot per side
● Cross-section : 80 mm. X 80 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6063S-T5
● Surface treatment: Clear/ Black Anodize, Clear Coating
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 10 Day(s) or more -
8 Series Aluminum Frame - 40x160mm, 10mm Slot Width
MISUMI
Aluminum Frame Series 8, Square shape 40 x 160mm, 4- Side Slots with Slot width 10mm
Surface treatment is not applied to cut surfaces and additional machining parts.- Volume Discount
Days to Ship: 10 Day(s) or more -
8-45 Series Aluminum Frame - Square 45x45mm, 4 Side Slots, A6N01SS-T5 Aluminum
MISUMI
Aluminum Frame 8-45 Series/ Slot width 10/45x45mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Square
● Slot width : 10 mm. / 1 slot per side
● Cross-section : 45 mm. X 45 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5, A6061SS-T6 Equivalent, A6063S-T5 and A6063S-T6 Equivalent
● Surface treatment: Clear/ Black Anodize, Clear Coating
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 10 Day(s) or more -
8-45 Series Aluminum Frame - Square 60x60mm, 4 Side Slots, A6N01SS-T5 Aluminum
MISUMI
Aluminum Frame 8-45 Series/slot width 10/60x60mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Square
● Slot width : 10 mm. / 1 slot per side
● Cross-section : 60 mm. X 60 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5, A6061SS-T6 Equivalent, A6063S-T5 and A6063S-T6 Equivalent
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 7 Day(s) or more -
Aluminum Frame 6 Series Rectangular 30 × 60 mm 4 Side Slots - A6N01SS-T5 Aluminum
MISUMI
Aluminum Frame 6 Series/ Slot width 8/30x60mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Rectangle.
● Slot width : 8 mm./1 slot
● Cross-section : 30 mm. X 60 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5, A6061SS-T6 Equivalent, A6063S-T5 and A6063S-T6 Equivalent
● Surface treatment: Clear/ Black Anodize, Clear Coating
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 4 Day(s) or more -
8-50 Series Aluminum Frame - Square 50x50mm, 4 Side Slots, A6N01SS-T5 Aluminum
MISUMI
Aluminum Frame 8-50 Series/ Slot width 10/50x50mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Square
● Slot width : 10 mm. /1 slot
● Cross-section : 50 mm. X 50 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5, A6061SS-T6 Equivalent, A6063S-T5 and A6063S-T6 Equivalent
● Surface treatment: Clear Anodize and Black Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.Days to Ship: 7 Day(s) or more -
Aluminum Extrusion, SF30, Groove Width 8 mm Type, SF2-30/30
SUS
Compatible with SF30 series. 8 mm groove width type.
Standard Price: MYR 46.25- Days to Ship: 4 Day(s) or more -
6 Series Aluminum Frame - Square 30x30mm, 3 Side Slots, A6N01SS-T5 Aluminum
MISUMI
Aluminum Frame 6 Series/slot width 8/30x30mm
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Square
● Slot width : 8 mm. / 1 slot only 3 side and the other is blind
● Cross-section : 30 mm. x 30 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6063S-T5
● Surface treatment: Clear Anodize and Black Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 7 Day(s) or more -
Aluminum Frame 8 Series/slot width 10/45 Degree
MISUMI
Aluminum Frame Series 8, Triangle shape 40mm
Surface treatment is not applied to cut surfaces and additional machining parts.- Volume Discount
Days to Ship: 10 Day(s) or more -
8 Series R-Shape Aluminum Frame - 80x80x40mm
MISUMI
Aluminum Frame 8 Series/slot width 10/80x80x40mm.
Aluminium Profile is a device used to build machine structures for build a corner of machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Square fillet corner
● Slot width : 10 mm. / 1 slot only 2 side and the others are blind
● Cross-section : Overall 80 mm. x 80 mm., Aluminium Profile size 40x40 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6063S-T5
● Surface treatment: Clear Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.Days to Ship: 10 Day(s) or more -
Aluminum Extrusion 8-45 Series, Square, Parallel Chamfering, 45 × 45, 50 × 50, 60 × 60, 90 × 90
MISUMI
Aluminum Frame 8-45 Series/slot width 10/45x45mm, Parallel Surfacing
Aluminum profile is a device used to build machine structures. It is available in various sizes, cross-sectional shapes, and with different types of surface treatments to choose from. Moreover, it comes with a milled surface.
[Feature]
● Shape : Sqaure
● Slot width : 10 mm.
● Cross-section : 45x45 mm., 50x50 mm., 60x60 mm. and 90x90 mm.
● Overall length :The size is configurable between 100 and 3000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6061SS-T6 Equivalent
● Surface treatment: Clear Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.Days to Ship: 12 Day(s) or more -
Aluminum Frame 5 Series Square 20 × 20 mm 2 Side Slots (Opposing)
MISUMI
Aluminum Frame Series 5, Square shape 20 x 20mm, 2- Side Slots (Opposing) with Slot width 6mm
Surface treatment is not applied to cut surfaces and additional machining parts.- Volume Discount
Days to Ship: 10 Day(s) or more -
Aluminum Frame 8-45 Series Rectangular 45 × 90 mm 4 Side Slots - A6N01SS-T5 Aluminum
MISUMI
Aluminum Frame 8-45 Series/slot width 10/45x90mm
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Rectangle.
● Slot width :10 mm.
● Cross-section : 45 mm. x 90 mm.
number of width slot = 1 slot
number of length slot = 2 slots
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5, A6061SS-T6 Equivalent, A6063S-T5 and A6063S-T6 Equivalent
● Surface treatment: Clear/ Black Anodize, Clear Coating
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 10 Day(s) or more -
8 Series R-Shape Aluminum Frame - 40x40mm Cross-Section
MISUMI
Aluminum Frame 8 Series/slot width 10/40x40 mm.
Aluminium Profile is a device used to build machine structures for build a corner of machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : R Shape
● Slot width :10 mm.
● Cross-section rectangle : 40 x 40 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6063S-T5
● Surface treatment: Clear Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 10 Day(s) or more -
Aluminum Frame 8 Series Square 80 × 80 mm 1 Side Slot
MISUMI
Aluminum Frame 8 Series/slot width 10/80x80 mm.
Aluminum profile is a device used to build machine structures. It is available in various sizes, cross-sectional shapes, and with different types of surface treatments to choose from.
[Feature]
● Shape : Square.
● Slot width : 10 mm.
● Cross-section : 80 mm. x 80 mm.
number of slot width x length = 2 X 2 slot
number of slotted surfaces = 3 sides
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5
● Surface treatment: Clear Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 10 Day(s) or more -
Basic Frame, M4 Series, Heavy Grade, AFS-1040
NIC AUTOTEC
This basic frame is the frame that alpha frame is based on. The outer dimensions and T grooves are designed with standard dimensions, and standard brackets and accessories can be freely combined by bolt coupling.
Days to Ship: 6 Day(s) or more -
Aluminum Frame 6 Series/slot width 8/Curved Aluminum Frames
MISUMI
Aluminum Frame 6 Series/slot width 8/Curved Aluminum Frames
Aluminium Profile is a device used to build machine structures for build a corner of machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Curved Aluminum Frames
● Slot width : 8 mm.
● Cross-section : 30 mm. x 30 mm.
● R size : 140, 300 and 500 mm.
● Material : Aluminium grade A6N01SS-T5
● Surface treatment: Clear Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.Days to Ship: 14 Day(s) or more -
Aluminum Frame 6 Series Rectangular 30 × 60 mm 2 Side Slots (Opposing)
MISUMI
"6 Series 30mm, 60mm Square Aluminum Extrusions with 2 Slots."
- Volume Discount
Days to Ship: 10 Day(s) or more -
6 Series Aluminum Frame - Square 60x60mm, 3 Side Slots, A6N01SS-T5 Aluminum
MISUMI
Aluminum Frame 6 Series/ Slot width 8/60x60mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section and shapes to choose from.
[Feature]
● Shape : Square
● Slot width : 8 mm. / 2 slot per side
● Cross-section : 60 mm. X 60 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6063S-T5
● Surface treatment: Clear Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 7 Day(s) or more -
Aluminum Frame 6 Series/slot width 8/30x300mm
MISUMI
Aluminum Frame 6 Series/slot width 8/30x300mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Rectangle.
● Slot width :8 mm.
● Cross-section : 30 mm. x 300 mm.
number of width slot = 1 slot
number of length slot = 10 slots
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5
● Surface treatment: Clear Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 10 Day(s) or more -
8 Series Aluminum Frame - 40x120mm, 10mm Slot Width
MISUMI
Aluminum Frame 8 Series/slot width 10/40x120mm
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Rectangle.
● Slot width : 10 mm.
● Cross-section : 40 mm. x 120 mm.
number of width slot = 1 slot
number of length slot = 3 slots
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6063S-T5
● Surface treatment: Clear Anodize and Black Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 10 Day(s) or more -
Basic Frame, M6 Series, Heavy Grade, AFS-15150B
NIC AUTOTEC
This basic frame is the frame that alpha frame is based on. The outer dimensions and T grooves are designed with standard dimensions, and standard brackets and accessories can be freely combined by bolt coupling.
Days to Ship: 8 Day(s) or more -
8-45 Series Aluminum Frame - Square 45x45mm, 3 Side Slots, A6N01SS-T5 Aluminum
MISUMI
Aluminum Frame Series 8-45, Square shape 45 x 45mm, 3- Side Slots with Slot width 10mm
Surface treatment is not applied to cut surfaces and additional machining parts.- Volume Discount
Days to Ship: 10 Day(s) or more -
5 Series Aluminum Frame - 25x25mm, 6mm Slot Width
MISUMI
Aluminum Frame 5 Series/ Slot width 6/25x25mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Square
● Slot width : 6 mm. / 1 slot per side
● Cross-section : 25 mm. X 25 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6063S-T5
● Surface treatment: Clear Anodize and Black Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.Days to Ship: 10 Day(s) or more -
5 Series R-Shape Aluminum Frame - 20x20mm Cross-Section
MISUMI
Aluminum Frame Series 5, R shape 20 x 20mm
Surface treatment is not applied to cut surfaces and additional machining parts.
Surface treatment is not applied to cut surfaces and additional machining parts.- Volume Discount
Days to Ship: 10 Day(s) or more -
6 Series R-Shape Aluminum Frame - 30x30mm Cross-Section
MISUMI
Aluminum Frame 6 Series/slot width 8/30x30mm.
Aluminium Profile is a device used to build machine structures for build a corner of machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Square fillet corner
● Slot width : 8 mm. / 1 slot only 2 side and the others are blind
● Cross-section : 30x30 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6063S-T5
● Surface treatment: Clear Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 10 Day(s) or more -
Aluminum Frame 8 Series/slot width 10/30, 45, 60-Degree
MISUMI
Aluminum Frame 8 Series/slot width 10/ Angled Shape 30, 45, 60-Degree
Aluminum profile is a device used to build machine structures. It is available in various sizes, cross-sectional shapes, and with different types of surface treatments to choose from.
[Feature]
● Shape : Angled Shape
● Angle (degree) : 30, 45, 60
● Slot width :8 mm.
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5
● Surface treatment: Clear Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 10 Day(s) or more -
Aluminum Frame 8 Series/slot width 10/40x40mm, Parallel Surfacing
MISUMI
Aluminum Frame 8 Series/slot width 10/40x40mm, Parallel Surfacing
Aluminum profile is a device used to build machine structures. It is available in various sizes, and cross-sectional shapes to choose from. Moreover, it comes with a milled surface.
[Feature]
● Shape : Square
● Slot width : 10 mm.
● Cross-section : 40x40 mm. and 80x80 mm.
● Overall length :The size is configurable between 100 to 3000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6061SS-T6 Equivalent
● Surface treatment: Clear Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.Days to Ship: 12 Day(s) or more -
Days to Ship: 11 Day(s) -
Aluminum Frame 3 Series/Base 15/Configurable Length
MISUMI
15 mm square aluminum extrusion. [Material]A6N01SS−T5
- Volume Discount
Days to Ship: 10 Day(s) or more -
Aluminum Frame 5 Series Square 20 × 20 mm 1 Side Slot
MISUMI
Aluminum Frame Series 5, Square shape 20 x 20mm, 1- Side Slot with Slot width 6mm
Surface treatment is not applied to cut surfaces and additional machining parts.- Volume Discount
Days to Ship: 10 Day(s) or more -
5 Series Aluminum Frame - 40x60mm/40x80mm, 6mm Slot Width
MISUMI
Aluminum Frame 5 Series/slot width 6/40x60, 40x80 mm.
Aluminum profile is a device used to build machine structures. It is available in various sizes, cross-sectional shapes, and with different types of surface treatments to choose from.
[Feature]
● Shape : Rectangle.
● Slot width : 6 mm.
● Cross-section : 40x60 mm. ,No of slot 2 X 3
● Cross-section : 40x80 mm. ,No of slot 2 X 4
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6063S-T5
● Surface treatment: Clear Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 7 Day(s) or more -
6 Series Aluminum Frame - 30x90mm, 8mm Slot Width
MISUMI
Aluminum Frame 6 Series/ Slot width 8/30x90mm.
Aluminium Profile is a device used to build machine structures, available in various sizes,cross section shapes and with different types of surfaces treatment to choose from.
[Feature]
● Shape : Rectangle.
● Slot width : 8 mm.
● Cross-section : 30 mm. x 90 mm.
number of width slot = 1 slot
number of length slot = 3 slots
● Overall length :The size is configurable between 50 to 4000 mm, and the minimum length can be increased by increments 0.5 mm.
● Material : Aluminium grade A6N01SS-T5 and A6063S-T5
● Surface treatment: Clear Anodize and Black Anodize
[Application]
Used for automatic machine structures in various industries such as automotive industry, electronics industry, etc.- Volume Discount
Days to Ship: 7 Day(s) or more
| Brand |
|---|
| Product Series |
| CAD |
| Days to Ship |
| Specifications |
| Standard Extrusion Size(mm) |
| Extrusion Type_ |
| Number of Slotted Surfaces |
| Surface Treatment |
| Extrusion Size |
| Extrusion Series |
| Extrusion Type |
| Number of Extrusion Slots |
| Surface Milled |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| Brand | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | SUS | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | NIC AUTOTEC | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | NIC AUTOTEC | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI |
| Product Series | 8 Series Aluminum Frame - Square 40x40mm, 4 Side Slots, A6N01SS-T5 Aluminum | 6 Series Aluminum Frame - Square 30x30mm, 4 Side Slots, A6N01SS-T5 Aluminum | Aluminum Frame 8 Series Rectangular 40 × 80 mm 4 Side Slots - A6N01SS-T5 Aluminum | 5 Series Aluminum Frame - Square 20x20mm, 4 Side Slots, A6N01SS-T5 Aluminum | Aluminum Frame 5 Series Rectangular 20 × 40 mm 4 Side Slots - A6N01SS-T5 Aluminum | 6 Series Aluminum Frame - Square 60x60mm, 4 Side Slots, A6N01SS-T5 Aluminum | 8-45 Series Aluminum Frame - Square 45x45mm, 2 Side Slots, A6N01SS-T5 Aluminum | Aluminum Frame 8 Series/slot width 10/40x80mm, Parallel Surfacing | 8 Series Aluminum Frame - Square 80x80mm, 4 Side Slots, A6N01SS-T5 Aluminum | 8-45 Series Aluminum Frame - Square 45x45mm, 4 Side Slots, A6N01SS-T5 Aluminum | 8-45 Series Aluminum Frame - Square 60x60mm, 4 Side Slots, A6N01SS-T5 Aluminum | Aluminum Frame 6 Series Rectangular 30 × 60 mm 4 Side Slots - A6N01SS-T5 Aluminum | 8-50 Series Aluminum Frame - Square 50x50mm, 4 Side Slots, A6N01SS-T5 Aluminum | 6 Series Aluminum Frame - Square 30x30mm, 3 Side Slots, A6N01SS-T5 Aluminum | Aluminum Extrusion 8-45 Series, Square, Parallel Chamfering, 45 × 45, 50 × 50, 60 × 60, 90 × 90 | Aluminum Frame 5 Series Square 20 × 20 mm 2 Side Slots (Opposing) | Aluminum Frame 8-45 Series Rectangular 45 × 90 mm 4 Side Slots - A6N01SS-T5 Aluminum | Aluminum Frame 6 Series Rectangular 30 × 60 mm 2 Side Slots (Opposing) | 6 Series Aluminum Frame - Square 60x60mm, 3 Side Slots, A6N01SS-T5 Aluminum | 8-45 Series Aluminum Frame - Square 45x45mm, 3 Side Slots, A6N01SS-T5 Aluminum | Aluminum Frame 8 Series/slot width 10/40x40mm, Parallel Surfacing | ||||||||||||||||||||||||
| CAD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| Days to Ship | 4 Day(s) or more | 2 Day(s) or more | 2 Day(s) or more | 2 Day(s) or more | 2 Day(s) or more | 2 Day(s) or more | 11 Day(s) | 2 Day(s) or more | 7 Day(s) or more | 10 Day(s) or more | 5 Day(s) or more | 12 Day(s) or more | 10 Day(s) or more | 10 Day(s) or more | 10 Day(s) or more | 7 Day(s) or more | 4 Day(s) or more | 7 Day(s) or more | 4 Day(s) or more | 7 Day(s) or more | 10 Day(s) or more | 10 Day(s) or more | 12 Day(s) or more | 10 Day(s) or more | 10 Day(s) or more | 10 Day(s) or more | 10 Day(s) or more | 6 Day(s) or more | 14 Day(s) or more | 10 Day(s) or more | 7 Day(s) or more | 10 Day(s) or more | 10 Day(s) or more | 8 Day(s) or more | 10 Day(s) or more | 10 Day(s) or more | 10 Day(s) or more | 10 Day(s) or more | 10 Day(s) or more | 12 Day(s) or more | 11 Day(s) | 10 Day(s) or more | 10 Day(s) or more | 7 Day(s) or more | 7 Day(s) or more |
| Specifications |
|
|
| ||||||||||||||||||||||||||||||||||||||||||
| Standard Extrusion Size(mm) | 40 | 20 | 30 | 40 | 20 | 20 | 40 ～ 80 | 40 | 60 | 45 | 20 | 40 | 80 | 40 | 45 | 60 | 30 | 50 | 30 | 30 | 40 | 40 | 45 ～ 90 | 20 | 45 | 40 | 80 | 10 | 30 | 30 | 60 | 30 | 40 | 15 | 45 | 25 | 20 | 30 | 40 | 40 ～ 80 | - | 15 | 20 | 40 | 30 |
| Extrusion Type_ | HFS (Standard) / EFS (Lightweight) / GFS (High Rigidity) / HFSL (Lightweight, Standard) / NEFS (Economy) / NFSL (Lightweight, Economy) / GNFS (High Rigidity, Economy) | - | HFS (Standard) / EFS (Lightweight) / GFS (High Rigidity) / HFSL (Lightweight, Standard) / NEFS (Economy) / NFS (Economy) / NFSL (Lightweight, Economy) / GNFS (High Rigidity, Economy) | HFS (Standard) / EFS (Lightweight) / GFS (High Rigidity) / HFSL (Lightweight, Standard) / NEFS (Economy) / NFSL (Lightweight, Economy) / GNFS (High Rigidity, Economy) | HFS (Standard) / NFS (Economy) | HFS (Standard) / NFS (Economy) | - | LCF (European Standard) | HFS (Standard) / HFSG (High Rigidity) / NFS (Economy) | HFS (Standard) / EFS (Lightweight) / GFS (High Rigidity) / HFSL (Lightweight, Standard) / NEFS (Economy) | HFS (Standard) / NFS (Economy) | HFS (Standard) / GFS (High Rigidity) | HFS (Standard) / EFS (Lightweight) / NEFS (Economy) | HFS (Standard) / EFS (Lightweight) / NFS (Economy) | HFS (Standard) / EFS (Lightweight) / GFS (High Rigidity) / HFSL (Lightweight, Standard) / NEFS (Economy) / NFSL (Lightweight, Economy) / GNFS (High Rigidity, Economy) | HFS (Standard) / GFS (High Rigidity) / NFS (Economy) / GNFS (High Rigidity, Economy) | HFS (Standard) / EFS (Lightweight) / GFS (High Rigidity) / HFSL (Lightweight, Standard) / NEFS (Economy) / NFS (Economy) / NFSL (Lightweight, Economy) / GNFS (High Rigidity, Economy) | HFS (Standard) / EFS (Lightweight) / GFS (High Rigidity) / NEFS (Economy) / GNFS (High Rigidity, Economy) | - | HFS (Standard) / EFS (Lightweight) / NEFS (Economy) | HFS (Standard) | HFS (Standard) / NFS (Economy) | HFS (Standard) / GFS (High Rigidity) | HFS (Standard) | HFS (Standard) / EFS (Lightweight) / GFS (High Rigidity) / HFSL (Lightweight, Standard) / NEFS (Economy) / NFSL (Lightweight, Economy) / GNFS (High Rigidity, Economy) | HFS (Standard) / NFS (Economy) | HFS (Standard) / EFS (Lightweight) | - | HFS (Standard) | HFS (Standard) / EFS (Lightweight) | HFS (Standard) / NFS (Economy) | EFS (Lightweight) | EFS (Lightweight) / NEFS (Economy) | - | HFS (Standard) / EFS (Lightweight) / GFS (High Rigidity) / HFSL (Lightweight, Standard) / NEFS (Economy) | HFS (Standard) / NFS (Economy) | HFS (Standard) / NFS (Economy) | HFS (Standard) / NFS (Economy) | HFS (Standard) | HFS (Standard) / GFS (High Rigidity) | LCF (European Standard) | HFS (Standard) | HFS (Standard) | HFS (Standard) / NFS (Economy) | HFS (Standard) / EFS (Lightweight) / NEFS (Economy) |
| Number of Slotted Surfaces | Four-Side Slots | Four-Side Slots / Two-Side Slots | Four-Side Slots | Four-Side Slots | Four-Side Slots | Four-Side Slots | Four-Side Slots | Four-Side Slots | Four-Side Slots | Two-Side Slots | Four-Side Slots | Four-Side Slots | Four-Side Slots / Two-Side Slots (Opposed) | Four-Side Slots | Four-Side Slots | Four-Side Slots | Four-Side Slots | Four-Side Slots | Four-Side Slots | Three-Side Slots | - | - | Four-Side Slots | Two-Side Slots (Opposed) | Four-Side Slots | - | Three-Side Slots | One-Side Slots | - | Two-Side Slots (Opposed) | Three-Side Slots | Four-Side Slots | Four-Side Slots | Four-Side Slots | Three-Side Slots | Four-Side Slots | - | - | - | Four-Side Slots | - | Four-Side Slots | One-Side Slots | Four-Side Slots | Four-Side Slots |
| Surface Treatment | Black Anodize ～ Clear Coating | Black Anodize ～ Clear Anodize | Black Anodize ～ Clear Coating | Black Anodize ～ Clear Coating | Black Anodize ～ Clear Coating | Black Anodize ～ Clear Coating | Black Anodize ～ Clear Anodize | Clear Anodize | Black Anodize ～ Clear Coating | Black Anodize ～ Clear Anodize | Clear Anodize | Clear Anodize | Black Anodize ～ Clear Coating | Black Anodize ～ Clear Anodize | Black Anodize ～ Clear Coating | Clear Anodize | Black Anodize ～ Clear Coating | Black Anodize ～ Clear Anodize | - | Black Anodize ～ Clear Anodize | Clear Anodize | Clear Anodize | Clear Anodize | Clear Anodize | Black Anodize ～ Clear Coating | Clear Anodize | Clear Anodize | - | Clear Anodize | Clear Anodize | Clear Anodize | Clear Anodize | Black Anodize ～ Clear Anodize | - | Black Anodize ～ Clear Anodize | Clear Anodize | Clear Anodize | Clear Anodize | Clear Anodize | Clear Anodize | Clear Anodize | Clear Anodize | Clear Anodize | Clear Anodize | Black Anodize ～ Clear Anodize |
| Extrusion Size | 40x40 | - | 30x30 | 40x80 | 20x20 | 20x40 | - | - | 60x60 | 45x45 | 20x60 ～ 20x80 | 40x80 ～ 80x40 | 80x80 | 40x160 | 45x45 | 60x60 | 30x60 | 50x50 | 30x30 | 30x30 | - | - | 45x45 ～ 90x90 | 20x20 | 45x90 | - | 80x80 | 10x40 | - | 30x60 | 60x60 | 30x300 | 40x120 | 15x150 | 45x45 | 25x25 | - | - | - | 40x40 ～ 80x80 | - | 15x15 | 20x20 | 40x60 ～ 40x80 | 30x90 |
| Extrusion Series | 8 Series | - | 6 Series | 8 Series | 5 Series | 5 Series | MISUMI, European Standard, Aluminum Frame, LCF 20 Series, (Groove Width: 6 mm) | MISUMI, European Standard, Aluminum Frame, 30/40/50/60 Series, (Groove Width: 8 mm) | 6 Series | 8-45 Series | 5 Series | 8 Series | 8 Series | 8 Series | 8-45 Series | 8-45 Series | 6 Series | 8-45 Series | SUS SF30 (8 mm Groove Width Type) | 6 Series | 8 Series | 8 Series | 8-45 Series | 5 Series | 8-45 Series | 8 Series | 8 Series | NIC Autotec M4 Series | 6 Series | 6 Series | 6 Series | 6 Series | 8 Series | NIC Autotec M6 Series | 8-45 Series | 5 Series | 5 Series | 6 Series | 8 Series | 8 Series | - | 3 Series | 5 Series | 5 Series | 6 Series |
| Extrusion Type | Square Shape / Rectangle Shape | Square Shape / R Shape | Square Shape | Rectangle Shape | Square Shape | Rectangle Shape | Rectangle Shape | Square Shape | Square Shape | Square Shape | Rectangle Shape | Rectangle Shape | Square Shape | Rectangle Shape | Square Shape | Square Shape | Rectangle Shape | Square Shape | Square Shape | Square Shape | Triangle Shape | L/R Shape | Square Shape | Square Shape | Rectangle Shape | R Shape | Square Shape | Rectangle Shape | Bent Shape | Rectangle Shape | Square Shape | Rectangle Shape | Rectangle Shape | Rectangle Shape | Square Shape | Square Shape | R Shape | R Shape | Angled Shape | Square Shape | Rectangle Shape | Square Shape | Square Shape | Rectangle Shape | Rectangle Shape |
| Number of Extrusion Slots | 1 Slot x 1 Slot | - | 1 Slot x 1 Slot | 1 Slot x 2 Slots | 1 Slot x 1 Slot | 1 Slot x 2 Slots | - | - | 2 Slots x 2 Slots | 1 Slot x 1 Slot | 1 Slot x 3 Slots ～ 1 Slot x 4 Slots | 1 Slot x 2 Slots ～ 2 Slots x 1 Slot | 2 Slots x 2 Slots | 1 Slot x 4 Slots | 1 Slot x 1 Slot | 1 Slot x 1 Slot | 1 Slot x 2 Slots | 1 Slot x 1 Slot | 1 Row Groove × 1 Row Groove | 1 Slot x 1 Slot | - | - | 1 Slot x 1 Slot ～ 2 Slots x 2 Slots | 1 Slot x 1 Slot | 1 Slot x 2 Slots | - | 2 Slots x 2 Slots | 2 Row Groove × 0 Row Groove | - | 1 Slot x 2 Slots | 2 Slots x 2 Slots | 1 Slot x 10 Slots | 1 Slot x 3 Slots | 1 Row Groove × 5 Row Groove | 1 Slot x 1 Slot | 1 Slot x 1 Slot | - | - | - | 1 Slot x 1 Slot ～ 2 Slots x 2 Slots | - | 1 Slot x 1 Slot | 1 Slot x 1 Slot | 2 Slots x 3 Slots ～ 2 Slots x 4 Slots | 1 Slot x 3 Slots |
| Surface Milled | Not Provided | Not Provided | Not Provided | Not Provided | Not Provided | Not Provided | Not Provided | Not Provided | Not Provided | Not Provided | Not Provided | Provided | Not Provided | Not Provided | Not Provided | Not Provided | Not Provided | Not Provided | - | Not Provided | Not Provided | Not Provided | Provided | Not Provided | Not Provided | Not Provided | Not Provided | - | Not Provided | Not Provided | Not Provided | Not Provided | Not Provided | - | Not Provided | Not Provided | Not Provided | Not Provided | Not Provided | Provided | - | Not Provided | Not Provided | Not Provided | Not Provided |
Loading...
Configure
Specification/Dimensions
-
Standard Extrusion Size(mm)
-
Extrusion Type_
-
Number of Slotted Surfaces
-
Surface Treatment
-
Extrusion Size
- 10x20
- 10x40
- 15x15
- 15x25
- 15x30
- 15x40
- 15x120
- 15x150
- 20x20
- 20x25
- 20x30
- 20x40
- 20x60
- 20x80
- 25x25
- 25x32.3
- 25x35.3
- 25x40
- 25x50
- 25x55
- 25x165
- 30x30
- 30×30
- 30x40
- 30x60
- 30x90
- 30x120
- 30x300
- 40x20
- 40x30
- 40x40
- 40×40
- 40x52
- 40x54.7
- 40x60
- 40x80
- 40x120
- 40x160
- 45x45
- 45x90
- 45x180
- 50x25
- 50x50
- 50x100
- 50x200
- 60x20
- 60x30
- 60x40
- 60x60
- 60x90
- 60x120
- 60x180
- 80x20
- 80x40
- 80x80
- 80x160
- 90x30
- 90x45
- 90x60
- 90x90
- 90x180
- 100x50
- 100x100
- 100x150
- 100x200
- 120x30
- 120x120
- 160x28
- 200x28
- 300x30
-
Extrusion Series
- 3 Series
- NIC Autotec M4 Series
- 5 Series
- IMAO (item) Line 5
- 6 Series
- IMAO (item) Line 6
- NIC Autotec M6 Series
- 8 Series
- IMAO (item) Line 8
- NIC Autotec M8 Series
- 8-45 Series
- NIC Autotec H10 Series
- MISUMI, European Standard, Aluminum Frame, LCF 20 Series, (Groove Width: 6 mm)
- SUS SF20 (6 mm Groove Width Type)
- LECOFRAME 25 Series (For Light/Medium Structures)
- SUS SF30 (8 mm Groove Width Type)
- MISUMI, European Standard, Aluminum Frame, 30/40/50/60 Series, (Groove Width: 8 mm)
- LECOFRAME 40 Series (For Medium/Heavy Structures)
-
Extrusion Type
-
Number of Extrusion Slots
- 1 Row Groove × 0 Row Groove
- 1-row groove × 1-row groove
- 1 Row Groove × 1 Row Groove
- 1 Slot x 1 Slot
- 1 Row Groove × 2 Row Groove
- 1 Slot x 2 Slots
- 1 Row Groove × 3 Row Groove
- 1 Slot x 3 Slots
- 1 Row Groove × 4 Row Groove
- 1 Slot x 4 Slots
- 1 Row Groove × 5 Row Groove
- 1 Slot x 10 Slots
- 2 Row Groove × 0 Row Groove
- 2 Row Groove × 1 Row Groove
- 2 Slots x 1 Slot
- 2 Row Groove × 2 Row Groove
- 2 Slots x 2 Slots
- 2 Row Groove × 3 Row Groove
- 2 Slots x 3 Slots
- 2 Row Groove × 4 Row Groove
- 2 Slots x 4 Slots
- 2 Row Groove × 6 Row Groove
- 3 Row Groove × 1 Row Groove
- 3 Slots x 1 Slot
- 3 Row Groove × 2 Row Groove
- 3 Slots x 2 Slots
- 4 Slots x 1 Slot
- 4 Slots x 2 Slots
- 4 Row Groove × 4 Row Groove
- 4 Slots x 4 Slots
- 10 Slots x 1 Slot
-
Surface Milled
Narrow search by specifying Manufacturer
CAD
-
- 2D
- 3D
Related Categories to 5 Series - Aluminum Frames 20, 25, 40 Square
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
