Damper Hinges, Spring Hinges
| Days to Ship |
|
|---|
-
Standard Price: MYR 9.60- Days to Ship: 1 Day(s) -
Stainless Steel Hinges with Spring
MISUMI
[Features]·Stainless steel hinge that closes when you release your hand due to the spring mechanism.
- Volume Discount
Standard Price: MYR 6.83- Days to Ship: 1 Day(s) or more -
Standard Price: MYR 9.21- Days to Ship: 1 Day(s) -

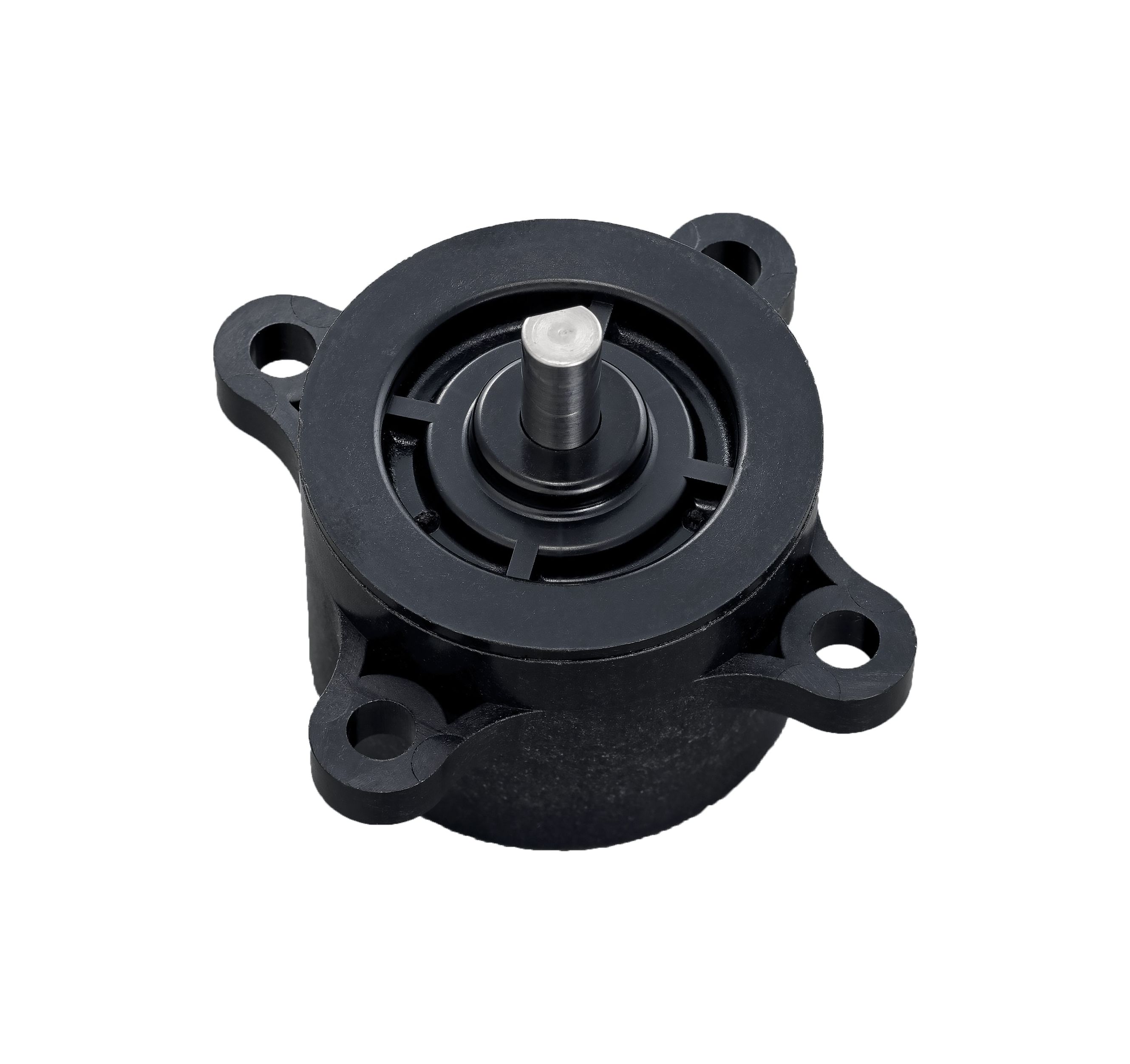

Rotary Damper (BP-879 / Plastic)
TAKIGEN
[Features]
· Appropriate damper characteristics can be obtained within the rotation range (in the direction of the arrow) of 180° (rotation in the reverse direction of the arrow is no load).
· Due to the compact hexagonal shape, setting it into the door is easy.
· Damper characteristics: closing time 10 ± 5 seconds.
· In a tolerance test of 100,000 repetitions (at normal temperature), closing time is more than 2.5 seconds.Standard Price: MYR 45.21 Days to Ship: 2 Day(s) or more -
Hinge With Spring (B-1046 / Stainless Steel)
TAKIGEN
Classic spring hinge. Made from stainless steel for superior corrosion resistance.
Standard Price: MYR 6.68- Days to Ship: 2 Day(s) -
MISUMI
[Features]·Aluminum hinge whose torque can be adjusted with a hex socket head cap screw.
- Volume Discount
Standard Price: MYR 59.40- Days to Ship: 1 Day(s) or more -
Flat Torque Hinge (B-1109 / Stainless Steel)
TAKIGEN
Made from stainless steel for superior corrosion resistance. Since there is no metal friction, metal powder / noise is not generated.
Hinge torque is not really affected by environment temperature. Initial setting torque can be held for many years.Standard Price: MYR 27.47- Days to Ship: 2 Day(s) -
Damper Hinge With Torque Adjustment (BP-879-2H, Plastic)
TAKIGEN
Correct damper characteristics can be obtained within the rotation range of 110°.
Standard Price: MYR 73.04 Days to Ship: 1 Day(s) or more -
MISUMI
Hinge to which a certain amount of torque is applied. You can choose from 3 torques.
- Volume Discount
Standard Price: MYR 26.99- Days to Ship: 1 Day(s) or more -
IMAO CORPORATION
Can remove the door by inserting and removing the shaft. As the spring is built-in, it prevents the shaft from falling off.
Standard Price: MYR 21.22- Days to Ship: 1 Day(s) or more -
Damper Hinge (B-879-0H, Zinc Alloy)
TAKIGEN
Dedicated holder for B-879BP-879.
[Features]
· Inside the hinge B-879-0, 2 pieces can be combined.
· Various settings can be done, like reciprocating damper type, one direction damper type, etc.
Rotary damper is sold separatelyStandard Price: MYR 123.62 Days to Ship: 2 Day(s) -
Damper Hinge (BP-879-1H / Plastic)
TAKIGEN
BP-879 dedicated holder.
[Features]
· Inside the hinge, the 2 pieces BP-879-1 and B-879-1 are combined.
· Various settings can be done, like reciprocating damper type, one direction damper type, etc.
Rotary damper is sold separatelyStandard Price: MYR 35.07 Days to Ship: 2 Day(s) -
![FHD-A1 Series Hinge Damper [Unidirectional]](//pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019678_001.jpg?$product_view_b$)

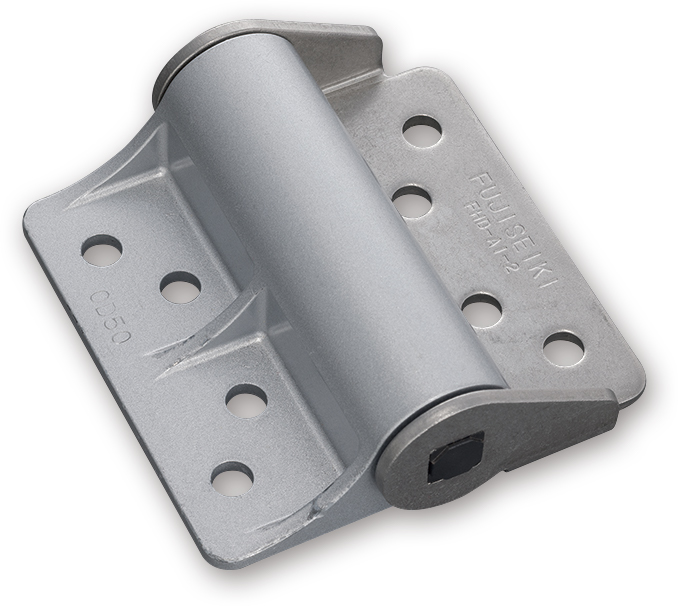

FHD-A1 Series Hinge Damper [Unidirectional]
FUJI LATEX
As this damper is in the shape of a hinge, it is easy to install and corresponds to both opening direction and closing direction. In addition, it can not be used for vertical use.
- CAD ：
- 2D
Standard Price: MYR 346.87- Days to Ship: 4 Day(s) or more -
Flat Torque Hinge (B-1209 / Stainless Steel)
TAKIGEN
Since there is no metal friction, metal powder / noise is not generated.
[Features]
· Hold the door at an arbitrary angle.
· Outer shape has no protrusion and is a clear, flat hinge type.
· No metal powder and no noise will be emitted bdue to resin friction.
· Initial setting torque can be held for many years.
· Compatible with mounting dimensions of B-1078-12, -13, -15.Standard Price: MYR 33.17- Days to Ship: 2 Day(s) -
Double-Action Hinge (B-1118 / Stainless Steel)
TAKIGEN
A spring hinge that automatically closes.
[Features]
· Adjustable torque.
· Materials: Leaves / stainless steel plate (SUS304); Cap color / brass; Shaft spring / steel wire.
· Surface finish: Brushed finish.
[Applications]
· Equipment for indoor use.Standard Price: MYR 101.54- Days to Ship: 1 Day(s) or more -
Flat Torque Hinge (BP-148 / Plastic)
TAKIGEN
[Features]
· Hold the door at an arbitrary angle.
· Can change the hardness of the torque by turning the adjustment bolt.
· Flame retardant materials are used (main body/UL94-HB/shaft/UL94 V-2).Standard Price: MYR 81.47- Days to Ship: 2 Day(s) or more -
MISUMI
[Features]·It is a hinge to which reverse torque is applied and reduces load when opening and closing
Days to Ship: 5 Day(s) or more -
Torque Hinge With Spring (B-1346 / Stainless Steel)
TAKIGEN
Built-in spring reduces the cover weight / It stops at an arbitrary angle.
[Features]
· Built-in spring reduces the cover weight.
· Prevents accidents such as pinching your fingers because it holds the cover at an arbitrary angle.
· Adjustment of holding torque is possible using adjustment nut even after installation.
· Space can be effectively used by using it to replace the damper.Standard Price: MYR 134.85- Days to Ship: 1 Day(s) or more -
Spring Loaded Locker Hinge B-128
TAKIGEN
[Features]
·The action of the spring prevents failure to close the door.
[Applications]
·For lockers, switchboards / power distribution boards, measuring instruments and communication equipment.Standard Price: MYR 24.95 Days to Ship: 2 Day(s) -
Hinge With Spring (B-1246 / Stainless Steel)
TAKIGEN
Suitable for frequent use because the durability of the spring is excellent. Made from stainless steel for superior corrosion resistance.
Standard Price: MYR 24.54- Days to Ship: 2 Day(s) or more -
Compact Flat Torque Hinge (BP-151 / Plastic)
TAKIGEN
[Features]
· Hold the door at an arbitrary angle.
· Outer shape has no protrusion and is a clean flat hinge type.
· No metal powder and no noise will be emitted due to resin frictionStandard Price: MYR 14.82- Days to Ship: 1 Day(s) or more -
Stainless Steel Hinge With Spring B-1046-G
TAKIGEN
[Features]
· An opposite force acts in the closing direction.
· Conventional product spring fitted hinge B-1046-1 compatible with installation with reverse spring specification.
· Made of stainless steel, corrosion resistant.Standard Price: MYR 13.87- Days to Ship: 2 Day(s) -
Damper Hinge (B-879-1H, Zinc Alloy)
TAKIGEN
Dedicated holder for B-879BP-879.
[Features]
· Inside the hinge, the 3 pieces BP-879-1 and B-879-1 are combined.
· Various settings can be done, like reciprocating damper type, one direction damper type, etc.
Rotary damper is sold separately.Standard Price: MYR 84.28 Days to Ship: 2 Day(s) -
![FDT-63A/FDN-63A Series [Two-Way] [One-Way]](//pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019623_001.jpg?$product_view_b$)

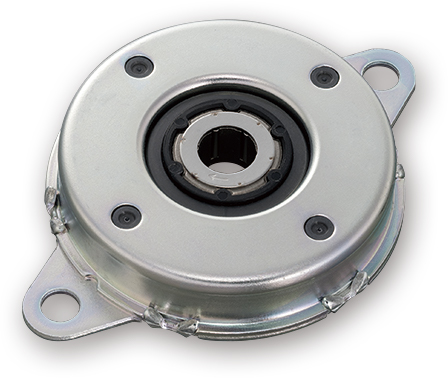

FDT-63A/FDN-63A Series [Two-Way] [One-Way]
FUJI LATEX
This damper has high torque, a thin space saving shape, and a metal appearance. This small damper is available in 2 types of torque, one that works in both directions and the other in one direction.
[Features]
· Velocity characteristics.
· The torque of the disc damper changes according to the rotation speed.
· As per the figure below, generally, the torque increases as the rotation speed increases, and decreases as the rotation speed decreases.
· Regarding the torque value of the catalog, 20rpm is the torque value at the time of rotation.
· When using the rotational fall of the cover, the rotation speed is slow at the initial stage of dropping and only torque less than the rated torque value is generated.
· Temperature characteristics.
· The damper torque value (catalog rated torque value) varies according to the operating environment temperature.
· The torque decreases as the temperature rises, and rises as the temperature decreases.
· This is because the viscosity of the oil inside the damper is affected by the temperature change, hence when the temperature returns to normal, the torque also returns to its original value.
· Temperature characteristics graph is as shown in the figure- CAD ：
- 2D
Standard Price: MYR 100.64- Days to Ship: 4 Day(s) or more -
![FDT-70A/FDN-70A Series [Two-Way] [One-Way]](//pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019634_001.jpg?$product_view_b$)

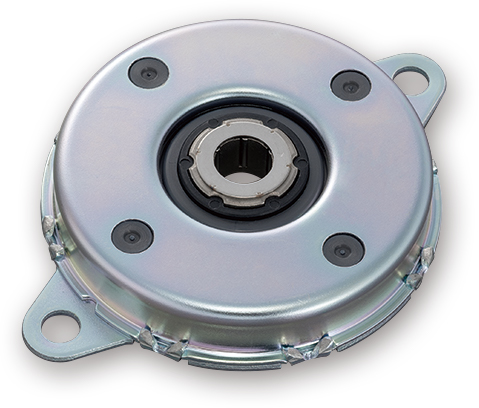

FDT-70A/FDN-70A Series [Two-Way] [One-Way]
FUJI LATEX
This damper has high torque, a thin space saving shape, and a metal appearance. This small damper is available in 2 types of torque, one that works in both directions and the other in one direction.
[Features]
· The torque of the disc damper changes according to the rotation speed.
· Generally, the torque increases as the rotation speed increases, and decreases as the rotation speed decreases.
· Regarding the torque value of the catalog, 20rpm is the torque value at the time of rotation.
· When using the rotational fall of the cover, the rotation speed is slow at the initial stage of dropping and only torque less than the rated torque value is generated.
· The damper torque value (catalog rated torque value) varies according to the operating environment temperature.
· The torque decreases as the temperature rises, and rises as the temperature decreases.
· The viscosity of the oil inside the damper is affected by the temperature change, hence when the temperature returns to normal the torque also returns to the original value- CAD ：
- 2D
Standard Price: MYR 103.37- Days to Ship: 4 Day(s) or more -
![FRT/FRN-F2 Series Rotary Damper [Two-Way] [One-Way]](//pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019814_001.jpg?$product_view_b$)
FRT/FRN-F2 Series Rotary Damper [Two-Way] [One-Way]
FUJI LATEX
[Features]
· High torque rotary damper that is easy to install.
· Available in both types of torque, one that works in both directions and the other in one direction.
· FRT Is a fixed shaft type.
· The axis of FRN is not fixed.- CAD ：
- 2D
Standard Price: MYR 143.58- Days to Ship: 4 Day(s) or more -
TOK BEARING
One-way, compact and durable. Main body type Rotary type, Operating environment Standard, Main body material Resin, Additional function With damper, Opening angle θ (deg) 360, Mounting method Screw mount, Mounting screw hole type Round hole
Standard Price: MYR 49.87- Days to Ship: 4 Day(s) or more -
ACCURATE
Space-saving hinge compatible with thinning of products. Torque difference is realized by the curling direction of leaf spring.
Standard Price: MYR 32.47 Days to Ship: 4 Day(s) or more -
Engineering Plastic Flat Hinge, Lock Type (EFHL)
IMAO CORPORATION
Resin hinge that can adjust the opening / closing torque force of the door by lever operation.
[Features]
· The opening position of the door can be fixed at an arbitrary position, and the adjustment of the opening and closing force of the door can also be done.- CAD ：
- 3D
Standard Price: MYR 94.58- Days to Ship: 1 Day(s) or more -
Hinge With Spring (B-1146 / Stainless Steel)
TAKIGEN
B-1046 strong spring pressure type. Made from stainless steel for superior corrosion resistance.
Standard Price: MYR 25.22- Days to Ship: 1 Day(s) or more -
Stainless Steel Concealed Torque Hinge B-1238-2
TAKIGEN
[Features]
·Holds the door at an arbitrary angle.
·Concealed hinge type that does not protrude from the surface of a door.
· Using the adjustment nut, the torque value can be changed.
[Applications]
·For office equipment, furniture, and control panels.Standard Price: MYR 44.19 Days to Ship: 2 Day(s) -
Spring Loaded Square Back Hinge B-81
TAKIGEN
[Features]
·With a spring, the door opens and closes smoothly.
[Applications]
·Distribution boards, control boards, machine tools.Standard Price: MYR 27.39- Days to Ship: 2 Day(s) or more -
Hinge With Spring Hook (B-46 / Steel)
TAKIGEN
A general-purpose hinge with spring.
[Features]
· Materials: Cold rolled steel plate (SPCC).
· Surface finish: Zinc plating chromate treatment (MFZn-C).
· Choice of 4 sizes depending on the application.
[Applications]
· For various types of doors.Standard Price: MYR 6.43- Days to Ship: 2 Day(s) -
Damper Hinge (B-153 / Zinc Alloy)
TAKIGEN
[Features]
●Damper properties operate within a rotation range of 120°
●Easy-to-install, flat-hinge type.
●Reduces door weight and closes slowly.
[Material / finishing]
●Material: Zinc alloy (ZDC) /Stainless steel plate (SUS304).
●Finish: Acrylic resin baked (Silver metallic) /Barrel polishing.
[Applications]
● Medical equipment, OA equipment.Standard Price: MYR 337.14 Days to Ship: 5 Day(s) or more -
![FHD-B1/B2 Series, Friction Hinge Damper [Bidirectional]](//pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019689_001.jpg?$product_view_b$)
FHD-B1/B2 Series, Friction Hinge Damper [Bidirectional]
FUJI LATEX
This damper is a friction type damper in the shape of a hinge. Easy to install, and torque is applied both in the opening direction and closing direction.
[Features]
· Damper characteristics vary with the operating environment temperatures. The damper characteristics become weaker as the temperature rises, and becomes stronger as the temperature decreases.
· This is because the shaft bush inside the damper changes as an effect of the temperature, and if the temperature returns to normal, the damper characteristics return to normal as well- CAD ：
- 2D
Standard Price: MYR 76.24 Days to Ship: 7 Day(s) or more -
![FRN-P2 Series Rotary Damper [Unidirectional]](//pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019713_001.jpg?$product_view_b$)
FRN-P2 Series Rotary Damper [Unidirectional]
FUJI LATEX
This damper is a unidirectional rotary damper with adjustable torque. Also, the gears attached to the damper are available in 2 types.
[Features]
· The torque of the rotary damper changes according to the rotation speed.
· Generally, the torque increases as the rotation speed increases, and decreases as the rotation speed decreases.
· Regarding the torque value of the catalog, 20rpm is the torque value at the time of rotation.
· In addition, the torque at startup is slightly different from the rated torque.
· The torque of the rotary damper varies according to the operating environment temperature.
· In general, the torque decreases as the temperature rises, and rises as the temperature decreases.
· This is because the viscosity of the oil inside the damper is affected by the temperature change, hence when the temperature returns to normal, the torque also returns to its original value- CAD ：
- 2D
Standard Price: MYR 184.17 Days to Ship: 4 Day(s) or more -
![FRT-G2 Series, Rotary Damper [Two-Way]](//pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019735_001.jpg?$product_view_b$)
FRT-G2 Series, Rotary Damper [Two-Way]
FUJI LATEX
This damper is a low cost, compact and thin rotary damper. We also have 3 types of geared and non-geared types available.
[Features]
· Velocity characteristics: The torque of the rotary damper changes according to the rotation speed.
· Generally, the torque increases as the rotation speed increases, and decreases as the rotation speed decreases.
· In addition, the torque at startup is slightly different from the rated torque.
· Temperature characteristics: The torque of the rotary damper varies according to the operating environment temperature.
· In general, the torque decreases as the temperature rises, and rises as the temperature decreases.
· This is because the viscosity of the silicone oil inside the damper is affected by the temperature change.
· However, when the temperature returns to normal temperature, the torque returns to its original value- CAD ：
- 2D
Standard Price: MYR 14.67- Days to Ship: 4 Day(s) or more -
![FRT-S1 Series Rotary Damper [Two-Way]](//pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019768_001.jpg?$product_view_b$)
FRT-S1 Series Rotary Damper [Two-Way]
FUJI LATEX
This damper is a small diameter rotary damper of space-saving type, with a cylindrical shape and a resin outer diameter ø9.5 mm.
- CAD ：
- 2D
Standard Price: MYR 21.07- Days to Ship: 4 Day(s) or more -
![FRT/FRN-C2 Series Rotary Damper [Two-Way] [One-Way]](//pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019791_001.jpg?$product_view_b$)
FRT/FRN-C2 Series Rotary Damper [Two-Way] [One-Way]
FUJI LATEX
This small damper is available in 2 types of torque, one that works in both directions and the other in one direction. We also offer both types with and without gear.
- CAD ：
- 2D
Standard Price: MYR 21.89- Days to Ship: 4 Day(s) or more -
![FYN-S1 Series Swing Damper [One-Way]](//pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019892_001.jpg?$product_view_b$)
FYN-S1 Series Swing Damper [One-Way]
FUJI LATEX
This damper is a high-torque type metal (zinc die-cast) oscillating damper. In addition, even if the load changes, the same kind of movement is achieved due to the self-adjusting characteristics.
- CAD ：
- 2D
Standard Price: MYR 176.37 Days to Ship: 7 Day(s) or more -
Engineering Plastic Torque Hinge (ETH)
IMAO CORPORATION
Resin hinge that can adjust the opening / closing torque force of the door with the adjusting screw.
[Features]
· The opening position of the door can be fixed at an arbitrary position.
· The door opening and closing torque force can be adjusted.
· Flame retardant UL94-HB certification.- CAD ：
- 3D
Standard Price: MYR 76.07- Days to Ship: 2 Day(s) or more -
TOK BEARING
[Features]
· outer diameter ø11 with maximum torque 0.29N/m (3kgf/ cm) achieved.
· Slim (small and lightweight) 180° open/close type.Standard Price: MYR 26.51 Days to Ship: 4 Day(s) or more -
TOK BEARING
[Features]
· Prevents finger pinching (cover assist device).
· Easy installation, can be retrofitted (processing on the cover side not required).- CAD ：
- 2D
Standard Price: MYR 393.58 Days to Ship: 4 Day(s) or more -
Stainless Steel Torque Hinge with Spring B-1346-PC
TAKIGEN
[Features]·Dedicated cover for B1346 manufactured by Takigen.
Standard Price: MYR 13.81- Days to Ship: 2 Day(s) or more -
Torque-Adjusted-Type Flat Hinge (B-1159 / Stainless Steel)
TAKIGEN
[Features]
· Hold the door at an arbitrary angle.
· Since there is no metal friction, metal powder / noise is not generated.
· Using the adjustment nut, the torque value can be changed.
· Made of stainless steel, corrosion resistant.Standard Price: MYR 61.81- Days to Ship: 2 Day(s) or more
![FHD-A1 Series Hinge Damper [Unidirectional]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019678_001.jpg?$product_view_b$)
![FDT-63A/FDN-63A Series [Two-Way] [One-Way]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019623_001.jpg?$product_view_b$)
![FDT-70A/FDN-70A Series [Two-Way] [One-Way]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019634_001.jpg?$product_view_b$)
![FRT/FRN-F2 Series Rotary Damper [Two-Way] [One-Way]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019814_001.jpg?$product_view_b$)
![FHD-B1/B2 Series, Friction Hinge Damper [Bidirectional]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019689_001.jpg?$product_view_b$)
![FRN-P2 Series Rotary Damper [Unidirectional]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019713_001.jpg?$product_view_b$)
![FRT-G2 Series, Rotary Damper [Two-Way]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019735_001.jpg?$product_view_b$)
![FRT-S1 Series Rotary Damper [Two-Way]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019768_001.jpg?$product_view_b$)
![FRT/FRN-C2 Series Rotary Damper [Two-Way] [One-Way]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019791_001.jpg?$product_view_b$)
![FYN-S1 Series Swing Damper [One-Way]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019892_001.jpg?$product_view_b$)
| Brand |
|---|
| Product Series |
| CAD |
| Days to Ship |
| Specifications |
| Length L(mm) |
| Width W(mm) |
| Body Material |
| Main Body Type |
| Operating Environment |
| Mounting Method |
| Additional Function |
| Mounting Screw Hole Type |
| Main Body Surface Treatment |
| Reversed |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| Brand | MISUMI | MISUMI | MISUMI | TAKIGEN | TAKIGEN | MISUMI | TAKIGEN | TAKIGEN | MISUMI | IMAO CORPORATION | TAKIGEN | TAKIGEN | FUJI LATEX | TAKIGEN | TAKIGEN | TAKIGEN | MISUMI | TAKIGEN | TAKIGEN | TAKIGEN | TAKIGEN | TAKIGEN | TAKIGEN | FUJI LATEX | FUJI LATEX | FUJI LATEX | TOK BEARING | ACCURATE | IMAO CORPORATION | TAKIGEN | TAKIGEN | TAKIGEN | TAKIGEN | TAKIGEN | FUJI LATEX | FUJI LATEX | FUJI LATEX | FUJI LATEX | FUJI LATEX | FUJI LATEX | IMAO CORPORATION | TOK BEARING | TOK BEARING | TAKIGEN | TAKIGEN |
| Product Series | |||||||||||||||||||||||||||||||||||||||||||||
| CAD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| Days to Ship | 1 Day(s) | 1 Day(s) or more | 1 Day(s) | 2 Day(s) or more | 2 Day(s) | 1 Day(s) or more | 2 Day(s) | 1 Day(s) or more | 1 Day(s) or more | 1 Day(s) or more | 2 Day(s) | 2 Day(s) | 4 Day(s) or more | 2 Day(s) | 1 Day(s) or more | 2 Day(s) or more | 5 Day(s) or more | 1 Day(s) or more | 2 Day(s) | 2 Day(s) or more | 1 Day(s) or more | 2 Day(s) | 2 Day(s) | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 1 Day(s) or more | 1 Day(s) or more | 2 Day(s) | 2 Day(s) or more | 2 Day(s) | 5 Day(s) or more | 7 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 7 Day(s) or more | 2 Day(s) or more | 4 Day(s) or more | 4 Day(s) or more | 2 Day(s) or more | 2 Day(s) or more |
| Specifications |
|
| |||||||||||||||||||||||||||||||||||||||||||
| Length L(mm) | 47 ～ 63 | 20 ～ 51 | 26 | 48 | 20 ～ 51 | 60 | 30 ～ 90 | 71 | 32 ～ 50 | 35 ～ 53 | 130 | 110 | 80 | 50 ～ 90 | 76.5 ～ 152.5 | 43 ～ 63.5 | 86 | 108 ～ 258 | 56 | 32 ～ 170 | 30 ～ 40 | 38 ～ 51 | 110 | 89 | 95 | 47 | - | 17 | 49.5 ～ 65 | 60 ～ 100 | 25 | 56 ～ 86 | 20 ～ 51 | 87.5 | 52 | 63 | 24 | 41 | 27.5 | 83 | 43 ～ 63.5 | - | - | 124 ～ 289.3 | 50 ～ 90 |
| Width W(mm) | 35.4 ～ 62 | 14 ～ 38 | 35.4 ～ 80 | 16 | 14 ～ 38 | 59 | 35 ～ 82 | 25 ～ 50 | 36 ～ 48 | 15 ～ 16.2 | 70 | 60 | 86 | 35 ～ 60 | 34.5 ～ 70 | 36.5 ～ 57.5 | 80 | 70 ～ 90 | 51 | 32 ～ 50 | 26 ～ 30 | 32 ～ 38 | 60 | - | - | - | - | - | 48 ～ 64 | 40 ～ 50 | 60 | 66.5 ～ 98 | 14 ～ 38 | 80 | 43 | - | - | - | - | - | 36.5 ～ 56.5 | - | - | 30 ～ 53 | 44 ～ 82 |
| Body Material | - | - | - | Resin | Stainless Steel | - | Stainless Steel | Resin | - | Steel | Zinc Alloy | Resin | Zinc Alloy | Stainless Steel | Stainless Steel | Resin | - | Stainless Steel | Steel | Stainless Steel | Resin | Stainless Steel | Zinc Alloy | Steel | Steel | Resin | Resin | Brass | Resin | Stainless Steel | Stainless Steel | Steel | Steel | Zinc Alloy | Aluminum | Resin | Resin | Resin | Resin | Zinc Alloy | Resin | Resin | Resin | Resin | Stainless Steel |
| Main Body Type | - | Damper/Torque/Spring Hinge | - | Rotary Type | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Free Spring Hinges | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Rotary Type | Rotary Type | Rotary Type | Rotary Type | Rotary Type | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge | Rotary Type | Rotary Type | Rotary Type | Rotary Type | Rotary Type | Damper/Torque/Spring Hinge | Rotary Type | Rotary Type | Damper/Torque/Spring Hinge | Damper/Torque/Spring Hinge |
| Operating Environment | - | - | - | Standard | - | - | - | - | - | Standard | - | - | Standard | - | - | - | - | - | - | - | - | - | - | Standard | Standard | Standard | Standard | Standard | Standard | - | - | - | - | - | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | - | - |
| Mounting Method | - | Screw Mounting | - | - | - | Screw Mounting | - | - | Screw Mounting | Screw Mounting / Weld-On | - | - | Screw Mounting | - | - | - | Screw Mounting | - | - | - | - | - | - | Screw Mounting | Screw Mounting | Screw Mounting | Screw Mounting | - | Screw Mounting | - | - | - | - | - | Screw Mounting | Screw Mounting | Screw Mounting | Others | Screw Mounting | Screw Mounting | Screw Mounting | - | Screw Mounting | - | - |
| Additional Function | - | Spring Built-in | - | With Damper | - | - | - | - | With Torque Function | Not Provided | - | - | With Damper | - | - | - | With Damper | - | - | - | - | - | - | With Damper | With Damper | With Damper | With Damper | With Torque Function / Others | With Torque Function / With Fixing Function | - | - | - | - | - | With Damper | With Damper / With Torque Function | With Damper | With Damper | With Damper | With Damper | With Torque Function | With Damper | With Damper | - | - |
| Mounting Screw Hole Type | - | Round Hole | - | - | - | Counterbored | - | - | Round Hole | Round Hole | - | - | - | - | - | - | Round Hole | - | - | - | - | - | - | - | - | - | Round Hole | - | Countersunk Holes | - | - | - | - | - | - | - | - | - | - | - | Round Hole | - | Round Hole | - | - |
| Main Body Surface Treatment | - | - | - | Not Provided | Tumble Polish | - | Tumble Polish | Not Provided | - | Not Provided / Zinc Plating | Coating | Not Provided | - | Tumble Polish | Brushed | Not Provided | - | Tumble Polish | Colored Chromate | Tumble Polish | Not Provided | Tumble Polish | Coating | - | - | - | Not Provided | - | Not Provided | Tumble Polish | Tumble Polish | Colored Chromate | Colored Chromate | Coating | - | - | - | - | - | - | Not Provided | Not Provided | Not Provided | Not Provided | Tumble Polish |
| Reversed | - | - | - | For Right Side / For Left Side | - | - | - | For Right Side / For Left Side | - | For Right Side / For Left Side / For Both Right and Left Sides | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | For Right Side / For Left Side | - | - | - | - | - | - | - | - | - | - |
![FHD-A1 Series Hinge Damper [Unidirectional]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019678_001.jpg?$product_view_c$)
![FDT-63A/FDN-63A Series [Two-Way] [One-Way]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019623_001.jpg?$product_view_c$)
![FDT-70A/FDN-70A Series [Two-Way] [One-Way]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019634_001.jpg?$product_view_c$)
![FRT/FRN-F2 Series Rotary Damper [Two-Way] [One-Way]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019814_001.jpg?$product_view_c$)
![FHD-B1/B2 Series, Friction Hinge Damper [Bidirectional]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019689_001.jpg?$product_view_c$)
![FRN-P2 Series Rotary Damper [Unidirectional]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019713_001.jpg?$product_view_c$)
![FRT-G2 Series, Rotary Damper [Two-Way]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019735_001.jpg?$product_view_c$)
![FRT-S1 Series Rotary Damper [Two-Way]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019768_001.jpg?$product_view_c$)
![FRT/FRN-C2 Series Rotary Damper [Two-Way] [One-Way]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019791_001.jpg?$product_view_c$)
![FYN-S1 Series Swing Damper [One-Way]](http://pre-my.misumi-ec.com/linked/material/mech/FUL1/PHOTO/221000019892_001.jpg?$product_view_c$)
Loading...
Configure
Specification/Dimensions
-
Length L(mm)
-
Width W(mm)
-
Body Material
-
Main Body Type
-
Operating Environment
- Standard
-
Mounting Method
-
Additional Function
- Not Provided
- With Damper
- With Torque Function
- Spring Built-in
- With Fixing Function
- Others
-
Mounting Screw Hole Type
-
Main Body Surface Treatment
-
Reversed
Narrow search by specifying Manufacturer
CAD
-
- 2D
- 3D
Related Categories to Damper Hinges, Spring Hinges
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
