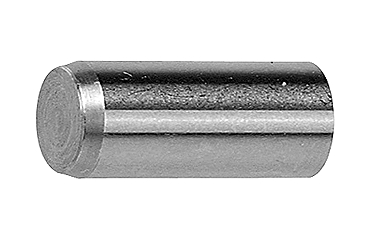

Dowel Pins, Spring Pins, Stepped Pins（Page2）
Standards are stipulated in JIS, and products designed according to both the new and old JIS standards are available. MISUMI offers products of both standards, so note the difference in tolerance.
Besides the dowel pin, MISUMI offers abundant shapes such as spring pin and stepped pin, as well as sizes from 0.1 to 30 mm and length from 2 to 200 mm. [Materials] > Stainless steel, iron (steel), resin
[Nominal Diameter] > 0.1 to 30 mm
Shape
-
Spring Pin, Wave Type, for General Use【1-5,000 Pieces Per Package】
TAIYO STAINLESS SPRING
It has less product entanglement compared to the straight type, and is suitable for automatic insertion.
In addition, it has long extended dimensions, with superior circularity and drawing load capacities.Standard Price: MYR 0.27- Days to Ship: 2 Day(s) or more -
Spring Pin (for General Purposes)【1-1,000 Pieces Per Package】
OCHIAI
[Features]
· Cylindrically coiled thin plate with a slit. When inserted (by press fit) into a hole with a diameter slightly smaller than that of its outer diameter, the pin applies internal pressure to the hole (force due to its expansion), preventing it from dropping out from the hole.
· This hollow pin contributes to weight reduction when compared with solid pins.
· Used for positioning, turn prevention, and retention, etc.
· Used for simple fastening and positioning, etc.
· Its grip prevents it from dropping out from its mating hole.
· When it is necessary to increase the shear load, use a double-pin structure. (The load is made by adding the shear load on the outer and inner pins.)- Volume Discount
Standard Price: MYR 0.27- Days to Ship: 2 Day(s) or more -
Grooved Pin A Type【1-1,000 Pieces Per Package】
SUNCO
[Features]There is a groove gradually spread. [Material] Steel
Standard Price: MYR 1.24- Days to Ship: 5 Day(s) or more -
Taper Pin (steel/stainless steel)【1-1,000 Pieces Per Package】
SUNCO
[Shape] Taper
[Shaft diameter tolerance] Plus tolerance
[Shaft end shape] Standard
[Characteristics] General
[Nominal size] 1/1.2/1.5/1.6/2/2.5/3/4/5/6/7/8/10/12/13/16/20
[Material] Steel / stainless steel
[Surface treatment] None
[Hardening] NoneStandard Price: MYR 1.94- Days to Ship: 5 Day(s) or more -
Tapered Pin With Inner Screw【1-100 Pieces Per Package】
OHKITA
[Features]Easy to insert via internal thread. [Shape]Can choose from taper; material: S45C and SUS303.
Standard Price: MYR 6.23- Days to Ship: 5 Day(s) or more -
Stainless Steel Parallel Pin With Internal Thread m6
HIMENO PRECISION
[Features]·Stainless steel parallel pin with positive tolerance internal thread (A type m6).
Standard Price: MYR 9.66- Days to Ship: 5 Day(s) or more -
![Long Parallel Pin [m6] SUS303](//pre-my.misumi-ec.com/linked/material/mech/OKT1/PHOTO/221006225482.jpg?$product_view_b$)
OHKITA
Pin is 300 mm or longer. Cut for use.
Features outstanding corrosion resistance and machining resistance.
Polishing completed for m6 tolerance.
Material = SUS303 EquivalentStandard Price: MYR 61.48- Days to Ship: 6 Day(s) or more -
Dowel Pin With Internal Thread TMMDP
HIMENO PRECISION
A dowel pin with an inner screw that complies with the Himeno standards (TMMDP).
Standard Price: MYR 5.66- Days to Ship: 5 Day(s) or more -
Dowel Pin With Internal Thread MDP【1-100 Pieces Per Package】
HIMENO PRECISION
[Features]Easy to insert via internal thread. [Shape]Straight / Stepped Parallel; Material: SUJ2
Standard Price: MYR 5.62- Days to Ship: 5 Day(s) or more -
Parallel Pin, Class B, h7 SUS316
OHKITA
A dowel pin made of SUS316.
Resistance to pitting and gap corrosion has been improved through the use of SUS303.
Features outstanding corrosion resistance to media such as sea water or salt water.
The shape of the end surfaces is the same.Standard Price: MYR 10.11- Days to Ship: 5 Day(s) or more -
Standard Price: MYR 56.45- Days to Ship: 1 Day(s) or more -
Taper Pin【1-1,000 Pieces Per Package】
HIMENO PRECISION
A headless pin with a circular cross section and a side taper of 1/50.
- Volume Discount
Standard Price: MYR 1.05- Days to Ship: 2 Day(s) or more -
Dowel Pin With Internal Thread THMDP
HIMENO PRECISION
[Features]Dowel pin with internal thread. [Shape]Straight / Stepped,Parallel; Material: Steel
Standard Price: MYR 5.84- Days to Ship: 5 Day(s) or more -
Standard Price: MYR 72.75- Days to Ship: 4 Day(s) or more -
Dowel Pin With Inside Threads, A Type (With Spiral Grooved)
OHKITA
Dowel pin with internal thread that has a spiral air release groove.
Standard Price: MYR 5.79- Days to Ship: 5 Day(s) or more -
Dowel Pin with Internal Thread Type B (with Spiral Groove)
OHKITA
Dowel pin with internal thread with spiral air release groove. The tolerance is 0 to +0.005. Eighty types are available including sizes not shown in the catalog.
Standard Price: MYR 5.73- Days to Ship: 5 Day(s) or more -
Dowel Pin With Inside Threads, C Type (With Spiral Grooved)
OHKITA
Dowel pin with internal thread that has a spiral air release groove.
Standard Price: MYR 5.73- Days to Ship: 5 Day(s) or more -
Grooved Pin, D Type【1-1,000 Pieces Per Package】
SUNCO
[Features]There are 3 grooves around flange. [Shape]Spring pin; Material: Steel
Standard Price: MYR 1.94- Days to Ship: 5 Day(s) or more -
Stainless Steel Parallel Pin, B Type/Soft (h7)【100 Pieces Per Package】
TAIYO STAINLESS SPRING
Outer diameter dimensions are less accurate than that of the A type. Used for rotating shafts, hinges, etc.
* "h7" is the JIS fitting tolerance.Standard Price: MYR 75.25- Days to Ship: 8 Day(s) or more -
Stainless Steel Parallel Pin (Soft)【1-30,000 Pieces Per Package】
TAIYO STAINLESS SPRING
Outer diameter dimensions are less accurate than those of the A type. Used for rotating shafts, hinges, etc.
After cutting, the product undergoes centerless grinding and finishing to ensure straightness, roundness, and outer diameter dimensions.
Made of stainless steel, it is suitable for home appliance, medical, and food-related applications.Standard Price: MYR 0.92- Days to Ship: 5 Day(s) or more -
Standard Price: MYR 0.64- Days to Ship: 5 Day(s) or more -
(Hardened) Tapered Pin【1-500 Pieces Per Package】
OHKITA
[Features]·Hardening positive tolerance pin. ·Pin with 1/50 taper used for positioning, etc.
Standard Price: MYR 3.30- Days to Ship: 5 Day(s) or more -
Taper Pin With External Thread (Hardened)【1-100 Pieces Per Package】
SUNCO
[Shape] Taper
[Material] S45C
[Shaft diameter tolerance] Plus tolerance
[Shaft end shape] External thread
[Characteristics] General
[Surface treatment] None
[Hardening] Yes
[Nominal diameter] 4/5/6/8/10/12/13/16
[Length] 25 to 160Standard Price: MYR 8.32- Days to Ship: 5 Day(s) or more -
Spring Pin【16-182 Pieces Per Package】
TRUSCO NAKAYAMA
- A simplified dowel pin that does not require high accuracy from its mating flat hole.
- The outward force of a spring keeps pieces in place. (Diameter of applicable hole is the same as its nominal diameter.)Standard Price: MYR 62.28 Days to Ship: 8 Day(s) -
Parallel Pin (B-Type, Made By Ohkita)【100-1,000 Pieces Per Package】
SUNCO
[Material] SUS316
[Shape] Both ends flat tipped
[Tolerance] h7Standard Price: MYR 746.21- Days to Ship: 9 Day(s) or more -
Parallel Pin With Internal Thread h7
OHKITA
Internal threading makes insertion easy.
The tolerance is h7.
Material = S45C equivalent; hardness = HRC45 to 52; quenched and tempered.
Material = SUS303 Equivalent. Use for applications where corrosion resistance is required.Standard Price: MYR 21.97- Days to Ship: 5 Day(s) or more -
OHKITA
This simple dowel pin does not require fitting hole accuracy.
Connects using the protrusions molded on both side of the groove.
The fitting hole recommended tolerance for a nominal diameter of up to 3 mm is H9, and H11 for anything larger.
Material = free-cutting steel; surface processing = nominal diameter less than 4 mm: unprocessed, 4 mm or more: black oxide finish.Standard Price: MYR 3.37- Days to Ship: 6 Day(s) or more -
![[Clean & Pack] Dowel Pin - Undersized, End Shape: Both Ends C Chamfered, Mating Tolerance: h7](//content.misumi-ec.com/image/upload/t_product_view_b/t_misumi_wm/v1/p/jp/product/series/110310663569/110310663569_001_20230911105917.jpg?$product_view_b$)
[Clean & Pack] Dowel Pin - Undersized, End Shape: Both Ends C Chamfered, Mating Tolerance: h7
MISUMI
Three types of cleaning methods are available: degreasing, precision cleaning, and electrolytic polishing + precision cleaning. They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.■Part Number for Clean & Pack Products·Degreasing (Anti-rust single packing) : Part Number SL-□□ ·Precision cleaning (Degassing double packing) : Part Number SH-□□ ·Electrolytic polishing + precision cleaning (Degassing double packing) : Part Number SHD-□□ Product Part Number Cleaning Method Packaging Type Effects Compared to Uncleaned Product Environment (Standard) Process SL-□□ Degreasing Anti-rust packing Oil removal General environment Regular assembly process Post battery assembly process SH-□□ Precision cleaning Degassing double packing Oil removal
Dust removalClean environment (Class 10 to 1,000) Battery assembly process LCD-related post assembly process In-vehicle camera assembly process SHD-□□ Electrolytic polishing + precision cleaning Degassing double packing Oil removal
Dust removal
Outgas reductionVacuum environment
Clean environment (Class 10 to 1,000)Pre-semiconductor process Liquid crystal deposition process Pre-OLED process ■Notes
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.- Volume Discount
Standard Price: MYR 29.23- Days to Ship: 6 Day(s) or more -
![[Clean & Pack] Spring Pin](//content.misumi-ec.com/image/upload/t_product_view_b/t_misumi_wm/v1/p/jp/product/series/110310663659/110310663659_001_20230911105917.jpg?$product_view_b$)
MISUMI
Three types of cleaning methods are available: degreasing, precision cleaning, and electrolytic polishing + precision cleaning. They can be ordered from one piece with the standard part number.
This eliminates the need for customer cleaning or outsourced cleaning, reducing the amount of time and effort required.■Part Number for Clean & Pack Products·Degreasing (Anti-rust single packing) : Part Number SL-□□ ·Precision cleaning (Degassing double packing) : Part Number SH-□□ ·Electrolytic polishing + precision cleaning (Degassing double packing) : Part Number SHD-□□ Product Part Number Cleaning Method Packaging Type Effects Compared to Uncleaned Product Environment (Standard) Process SL-□□ Degreasing Anti-rust packing Oil removal General environment Regular assembly process Post battery assembly process SH-□□ Precision cleaning Degassing double packing Oil removal
Dust removalClean environment (Class 10 to 1,000) Battery assembly process LCD-related post assembly process In-vehicle camera assembly process SHD-□□ Electrolytic polishing + precision cleaning Degassing double packing Oil removal
Dust removal
Outgas reductionVacuum environment
Clean environment (Class 10 to 1,000)Pre-semiconductor process Liquid crystal deposition process Pre-OLED process ■Notes
Cleaning also removes rust prevention oil, which may make the product more susceptible to rusting than an uncleaned product.
Please be careful about the application location and storage environment.- Volume Discount
Standard Price: MYR 22.69- Days to Ship: 6 Day(s) or more -
Spring Pin (for Light Loads)【1-1,000 Pieces Per Package】
OCHIAI
The opening section is wave-shaped to prevent product entanglement.
Standard Price: MYR 0.35- Days to Ship: 2 Day(s) or more -
S45C-Q (Quenched) Parallel Pin A Type【1-50 Pieces Per Package】
HIMENO PRECISION
[Features]Hardening parallel pin with positive tolerance. [Shape]Straight/Parallel Joggling
Standard Price: MYR 1.16- Days to Ship: 2 Day(s) or more -
Long Super Shaft【5-10 Pieces Per Package】
KS SANGYO
Product standardized in KS Sangyo based on JIS B1354 parallel pin. The sizes are available starting from ultra-fine.
Standard Price: MYR 156.70 Days to Ship: 5 Day(s) or more -
Grooved Pin Type B【1-1,000 Pieces Per Package】
SUNCO
[Features]There is a groove gradually spread from center toward flange.
Standard Price: MYR 2.05- Days to Ship: 5 Day(s) or more -
Grooved Pin F Type【1-1,000 Pieces Per Package】
SUNCO
[Features]Simple dowel pin commonly used in Europe and the United States.
Standard Price: MYR 4.48- Days to Ship: 5 Day(s) or more -
S45C Taper Pin【1-1,000 Pieces Per Package】
OHKITA
[Features]Positive tolerance taper pin with 1/50 taper used for positioning, etc.
Standard Price: MYR 1.79- Days to Ship: 5 Day(s) or more -
Parallel Pin Type A【1-100 Pieces Per Package】
TAIYO STAINLESS SPRING
[Features]A type steel parallel pin with large external dimensions accuracy used for rotary shafts, hinges, etc.
Standard Price: MYR 1.10- Days to Ship: 5 Day(s) or more -
Parallel Pin (Type A)【10-50 Pieces Per Package】
TRUSCO NAKAYAMA
● A headless, cylindrical pin with a circular cross section
● M6 (plus) tolerance pin diameter
● Used for jointing, positioning, rotation stopping, etc. by insertion into a mating holeStandard Price: MYR 56.09- Days to Ship: 5 Day(s) or more -
Parallel Pin (S45C-Q B Type) Himeno Precision Works Made
SUNCO
Parallel pins, also called "knock pins".
[Features]
·When two or more parts are fastened together, they are drilled and hammered together while they are still in place.
·Used for precision machining and heavy-duty machines.
[Applications]
·Not limited to positioning applications, it is widely used as a machine part.Standard Price: MYR 2.02- Days to Ship: 5 Day(s) or more -
SUNCO
Parallel pins that are centerless ground after cutting to finish the straightness, roundness, and outer diameter.
[Features]
·Made of stainless steel.
[Applications]
·It is suitable for home appliances, medical care, and food-related industries.
·Used for rotary shafts and hinge shafts.- Volume Discount
Standard Price: MYR 0.84- Days to Ship: 5 Day(s) or more -
SUNCO
Spring pins used for purposes such as connecting, positioning, and preventing screws from rotating.
[Features]
·Generic name for several types of pins to drive.
·A rod-shaped or roll-shaped product consisting of two or more parts is inserted into a precise hole.
·Spring force in the radial direction is used by forming a gap at the seam of a springy plate by rounding it.
·It is possible to have multiple roles such as stopper and hinge.
·When a dynamic load is applied, it is recommended to use the specified insertion direction.
[Applications]
·Compared to general use, the thickness of the plate is thin and the mating material is aluminum or resin, making it suitable for places where the insertion load is kept low.Standard Price: MYR 0.41- Days to Ship: 4 Day(s) or more -
Parallel Pin, Class B, h7 S45C-Q
OHKITA
Heat tempered dowel pin.
The shape of the end surfaces is the same.
Material = S45C Equivalent; Hardness = HRC23 to 33Standard Price: MYR 3.66- Days to Ship: 5 Day(s) or more -
![Long Parallel Pin [m6] S45C](//pre-my.misumi-ec.com/linked/material/mech/OKT1/PHOTO/221006225471.jpg?$product_view_b$)
OHKITA
Pin is 300 mm or longer. Cut for use.
Polishing completed for m6 tolerance.
Material = S45C Equivalent (No Heat Treatment)Standard Price: MYR 25.26- Days to Ship: 6 Day(s) or more -
![Long Parallel Pin [h7] SUS303](//pre-my.misumi-ec.com/linked/material/mech/OKT1/PHOTO/221006225505.jpg?$product_view_b$)
OHKITA
Pin is 300 mm or longer. Cut for use.
Features outstanding corrosion resistance and machining resistance.
Polishing completed for h7 tolerance.
Material = SUS303 EquivalentStandard Price: MYR 61.48- Days to Ship: 6 Day(s) or more -
OHKITA
Positioning pin with a 1/50 taper.
Use for applications that require corrosion resistance.
Material = SUS303 EquivalentStandard Price: MYR 8.14- Days to Ship: 5 Day(s) or more -
OHKITA
This simple dowel pin does not require fitting hole accuracy.
Connects using the protrusions molded on both side of the groove.
The fitting hole recommended tolerance for a nominal diameter of up to 3 mm is H9, and H11 for anything larger.
Material = free-cutting steel; surface processing = nominal diameter less than 4 mm: unprocessed, 4 mm or more: black oxide finish.Standard Price: MYR 3.37- Days to Ship: 6 Day(s) or more
![Long Parallel Pin [m6] SUS303](http://pre-my.misumi-ec.com/linked/material/mech/OKT1/PHOTO/221006225482.jpg?$product_view_b$)
![[Clean & Pack] Dowel Pin - Undersized, End Shape: Both Ends C Chamfered, Mating Tolerance: h7](http://content.misumi-ec.com/image/upload/t_product_view_b/t_misumi_wm/v1/p/jp/product/series/110310663569/110310663569_001_20230911105917.jpg?$product_view_b$)
![[Clean & Pack] Spring Pin](http://content.misumi-ec.com/image/upload/t_product_view_b/t_misumi_wm/v1/p/jp/product/series/110310663659/110310663659_001_20230911105917.jpg?$product_view_b$)
![Long Parallel Pin [m6] S45C](http://pre-my.misumi-ec.com/linked/material/mech/OKT1/PHOTO/221006225471.jpg?$product_view_b$)
![Long Parallel Pin [h7] SUS303](http://pre-my.misumi-ec.com/linked/material/mech/OKT1/PHOTO/221006225505.jpg?$product_view_b$)
| Brand |
|---|
| Product Series |
| CAD |
| Days to Ship |
| Nominal Dia. |
| Type |
| Shaft Dia. Tolerance |
| Length |
| Tip Shape |
| Shape |
| 材質 |
| Threading Y/N |
| Outer Dia. (Max.)(mm) |
| Material Details |
| With or Without Air Vent |
| Properties |
| Cleaning Method |
| Outer Dia. (Min.)(mm) |
| Surface Treatment |
| Sales Unit |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| Brand | TAIYO STAINLESS SPRING | OCHIAI | SUNCO | SUNCO | OHKITA | HIMENO PRECISION | OHKITA | HIMENO PRECISION | HIMENO PRECISION | OHKITA | MISUMI | HIMENO PRECISION | HIMENO PRECISION | KS SANGYO | OHKITA | OHKITA | OHKITA | SUNCO | TAIYO STAINLESS SPRING | TAIYO STAINLESS SPRING | OHKITA | OHKITA | SUNCO | TRUSCO NAKAYAMA | SUNCO | OHKITA | OHKITA | MISUMI | MISUMI | OCHIAI | HIMENO PRECISION | KS SANGYO | SUNCO | SUNCO | OHKITA | TAIYO STAINLESS SPRING | TRUSCO NAKAYAMA | SUNCO | SUNCO | SUNCO | OHKITA | OHKITA | OHKITA | OHKITA | OHKITA |
| Product Series | Spring Pin, Wave Type, for General Use【1-5,000 Pieces Per Package】 | Spring Pin (for General Purposes)【1-1,000 Pieces Per Package】 | Taper Pin (steel/stainless steel)【1-1,000 Pieces Per Package】 | Dowel Pin With Internal Thread MDP【1-100 Pieces Per Package】 | Stainless Steel Parallel Pin, B Type/Soft (h7)【100 Pieces Per Package】 | Stainless Steel Parallel Pin (Soft)【1-30,000 Pieces Per Package】 | Taper Pin With External Thread (Hardened)【1-100 Pieces Per Package】 | Parallel Pin (B-Type, Made By Ohkita)【100-1,000 Pieces Per Package】 | [Clean & Pack] Dowel Pin - Undersized, End Shape: Both Ends C Chamfered, Mating Tolerance: h7 | S45C-Q (Quenched) Parallel Pin A Type【1-50 Pieces Per Package】 | |||||||||||||||||||||||||||||||||||
| CAD |
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||
| Days to Ship | 2 Day(s) or more | 2 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 6 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 1 Day(s) or more | 2 Day(s) or more | 5 Day(s) or more | 4 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 8 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 8 Day(s) | 9 Day(s) or more | 5 Day(s) or more | 6 Day(s) or more | 6 Day(s) or more | 6 Day(s) or more | 2 Day(s) or more | 2 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 5 Day(s) or more | 4 Day(s) or more | 5 Day(s) or more | 6 Day(s) or more | 6 Day(s) or more | 5 Day(s) or more | 6 Day(s) or more |
| Nominal Dia. | 1 ～ 13 | 1 ～ 13 | 1.5 ～ 8 | 1 ～ 20 | 5 ～ 20 | 5 ～ 13 | 3 ～ 20 | 5 ～ 20 | 6 ～ 20 | 2 ～ 6 | - | 1 ～ 25 | 5 ～ 20 | 0.1 ～ 6 | 6 ～ 20 | 6 ～ 20 | 6 ～ 20 | 1.5 ～ 8 | 4 ～ 6 | 1 ～ 5 | 1 ～ 30 | 3 ～ 20 | 4 ～ 16 | 2 | 2 ～ 6 | 5 ～ 20 | 1.5 ～ 10 | 3 ～ 6 | 3 ～ 6 | 1.6 ～ 4 | 3 ～ 25 | 4 ～ 6 | 1.5 ～ 10 | 2 ～ 8 | 1 ～ 30 | 4 ～ 6 | 2 ～ 10 | 4 ～ 6 | 1 ～ 1.6 | 1 ～ 6 | 3 ～ 30 | 3 ～ 25 | 3 ～ 20 | 1 ～ 20 | 1.5 ～ 10 |
| Type | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Dowel Pin | Spring Pin | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Shaft Dia. Tolerance | Positive Tolerance | Positive Tolerance | Positive Tolerance | Positive Tolerance | Positive Tolerance | Positive Tolerance | - | Positive Tolerance | Positive Tolerance | Negative Tolerance | - | Positive Tolerance | Negative Tolerance | Positive Tolerance | Positive Tolerance | Positive Tolerance | Negative Tolerance | Positive Tolerance | Negative Tolerance | Positive Tolerance | Positive Tolerance | Positive Tolerance | Positive Tolerance | Positive Tolerance | Negative Tolerance | - | - | Negative Tolerance | Positive Tolerance | Positive Tolerance | Positive Tolerance | Negative Tolerance | Positive Tolerance | Positive Tolerance | Positive Tolerance | Positive Tolerance | Positive Tolerance | - | - | - | Negative Tolerance | - | - | Positive Tolerance | - |
| Length | 4 ～ 100 | 4 ～ 140 | 8 ～ 36 | 6 ～ 200 | 20 ～ 140 | 15 ～ 80 | 300 ～ 350 | 10 ～ 80 | 15 ～ 100 | 4 ～ 30 | - | 6 ～ 160 | 10 ～ 80 | 2 ～ 60 | 15 ～ 120 | 20 ～ 120 | 20 ～ 100 | 6 ～ 80 | 8 ～ 28 | 3 ～ 35 | 4 ～ 200 | 22 ～ 150 | 25 ～ 160 | 10 ～ 50 | 5 ～ 30 | 10 ～ 120 | 6 ～ 70 | 6 ～ 20 | 5 ～ 50 | 5 ～ 50 | 6 ～ 150 | 80 ～ 150 | 6 ～ 70 | 12 ～ 32 | 10 ～ 200 | 8 ～ 50 | 8 ～ 60 | 28 ～ 32 | 3 ～ 20 | 4 ～ 63 | 6 ～ 150 | 300 ～ 350 | 300 ～ 350 | 6 ～ 200 | 4 ～ 60 |
| Tip Shape | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Both Ends Taper/Chamfer | Both Ends Taper/Chamfer | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Shape | Spring Pins | Spring Pins | Spring Pins | Tapered | Tapered | Straight / Dual-Fit Dowel | Straight / Dual-Fit Dowel | Straight / Dual-Fit Dowel | Straight / Dual-Fit Dowel | Straight / Dual-Fit Dowel | Specialized Tools | Tapered | Straight / Dual-Fit Dowel | Straight / Dual-Fit Dowel | Straight / Dual-Fit Dowel | Straight / Dual-Fit Dowel | Straight / Dual-Fit Dowel | Spring Pins | Straight / Dual-Fit Dowel | Straight / Dual-Fit Dowel | Straight / Dual-Fit Dowel | Tapered | Tapered | Straight / Dual-Fit Dowel | Straight / Dual-Fit Dowel | Straight / Dual-Fit Dowel | - | - | - | Spring Pins | Straight / Dual-Fit Dowel | Straight / Dual-Fit Dowel | Spring Pins | Spring Pins | Tapered | Straight / Dual-Fit Dowel | Straight / Dual-Fit Dowel | - | - | - | Straight / Dual-Fit Dowel | Straight / Dual-Fit Dowel | Straight / Dual-Fit Dowel | Tapered | - |
| 材質 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Stainless Steel | Steel | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Threading Y/N | Standard | Standard | Standard | Standard | Tapped | Tapped | - | Tapped | Tapped | Standard | - | Standard | Tapped | Standard | Tapped | Tapped | Tapped | Standard | Standard | Standard | Standard | Standard | External Thread | Standard | Standard | Tapped | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | Standard | - | - | - | Standard | - | - | Standard | Standard |
| Outer Dia. (Max.)(mm) | 1.2 ～ 13.7 | 1.2 ～ 13.7 | 1.6 ～ 8.4 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 1.6 ～ 8.4 | - | - | - | - | - | 2.25 ～ 6.4 | 2 ～ 6 | - | 1.63 ～ 10.45 | - | - | 1.8 ～ 4.4 | - | - | 1.63 ～ 10.4 | 2.15 ～ 8.3 | - | - | - | - | - | - | - | - | - | - | 1.6 ～ 10.45 |
| Material Details | Stainless Steel ～ Steel | Stainless Steel ～ Steel | Steel | Stainless Steel ～ Steel | Stainless Steel ～ Steel | Stainless Steel | Stainless Steel | Steel | Steel | Stainless Steel | - | Stainless Steel ～ Steel | Steel | Stainless Steel | Steel | Steel | Steel | Steel | Stainless Steel | Stainless Steel | Steel | Steel | Steel | Steel | Stainless Steel | Stainless Steel ～ Steel | Steel | - | - | Stainless Steel | Steel | Stainless Steel | Steel | Steel | Steel | Steel | Steel | Steel | Stainless Steel | Stainless Steel | Steel | Steel | Stainless Steel | Stainless Steel | Steel |
| With or Without Air Vent | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | None | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Properties | Regular | Regular | Regular | Regular | Regular | Regular | Regular | - | - | Regular | - | - | - | - | Regular | - | Regular | Regular | Regular | Regular | Regular | Regular | Regular | Regular | Regular | Regular | Regular | - | - | Light Load | - | - | Regular | Regular | Regular | Regular | Regular | - | - | - | Regular | Regular | Regular | Regular | Regular |
| Cleaning Method | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Degreasing / Precision Cleaning / Electrolytic Polishing + Precision Cleaning | Degreasing / Precision Cleaning / Electrolytic Polishing + Precision Cleaning | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Outer Dia. (Min.)(mm) | 1.1 ～ 13.4 | 1.1 ～ 13.4 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 2.15 ～ 6.2 | 1.99 ～ 5.988 | - | - | - | - | 1.7 ～ 4.2 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Surface Treatment | Tempered Collar / Glossy Finishing | Not Provided / Phosphate Coating | Black Oxide | Not Provided | Not Provided | Not Provided | Not Provided | Not Provided | Not Provided | Not Provided | - | Not Provided | Not Provided | - | Not Provided | - | Not Provided | Black Oxide | Not Provided | Not Provided / Glossy Finishing | Not Provided | Not Provided | Not Provided | Phosphate Coating | Not Provided | Not Provided | - | - | - | Not Provided | Not Provided | - | Black Oxide | Black Oxide | Not Provided | Not Provided | Not Provided | Not Provided | Not Provided | - | Not Provided | Not Provided | Not Provided | Not Provided | - |
| Sales Unit | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Low Quantity (Available beginning with 1 pc.) | Low Quantity (Available beginning with 1 pc.) | Low Quantity (Available beginning with 1 pc.) | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Low Quantity (Available beginning with 1 pc.) | Low Quantity (Available beginning with 1 pc.) | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Low Quantity (Available beginning with 1 pc.) | Box, Pkg. | Low Quantity (Available beginning with 1 pc.) | - | Low Quantity (Available beginning with 1 pc.) | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Box, Pkg. | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Box, Pkg. | Box, Pkg. | Low Quantity (Available beginning with 1 pc.) | Low Quantity (Available beginning with 1 pc.) | - | - | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Box, Pkg. | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Box, Pkg. | Low Quantity (Available beginning with 1 pc.) | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Low Quantity (Available beginning with 1 pc.) ～ Box, Pkg. | Low Quantity (Available beginning with 1 pc.) | Low Quantity (Available beginning with 1 pc.) | Low Quantity (Available beginning with 1 pc.) | Low Quantity (Available beginning with 1 pc.) | Low Quantity (Available beginning with 1 pc.) |
![Long Parallel Pin [m6] SUS303](http://pre-my.misumi-ec.com/linked/material/mech/OKT1/PHOTO/221006225482.jpg?$product_view_c$)
![[Clean & Pack] Dowel Pin - Undersized, End Shape: Both Ends C Chamfered, Mating Tolerance: h7](http://content.misumi-ec.com/image/upload/t_product_view_c/t_misumi_wm/v1/p/jp/product/series/110310663569/110310663569_001_20230911105917.jpg?$product_view_c$)
![[Clean & Pack] Spring Pin](http://content.misumi-ec.com/image/upload/t_product_view_c/t_misumi_wm/v1/p/jp/product/series/110310663659/110310663659_001_20230911105917.jpg?$product_view_c$)
![Long Parallel Pin [m6] S45C](http://pre-my.misumi-ec.com/linked/material/mech/OKT1/PHOTO/221006225471.jpg?$product_view_c$)
![Long Parallel Pin [h7] SUS303](http://pre-my.misumi-ec.com/linked/material/mech/OKT1/PHOTO/221006225505.jpg?$product_view_c$)
Loading...
Configure
Specification/Dimensions
-
Nominal Dia.
-
Type
-
Shaft Dia. Tolerance
-
Length
-
Tip Shape
-
材質
-
Threading Y/N
-
Standard -
-
-
-
Outer Dia. (Max.)(mm)
-
Material Details
-
With or Without Air Vent
-
Properties
-
Cleaning Method
-
Outer Dia. (Min.)(mm)
-
Surface Treatment
-
Sales Unit
Narrow search by specifying Manufacturer
CAD
-
- 2D
- 3D
Days to Ship
-
- All
- 1 Day(s) or Less
- 2 Day(s) or Less
- 3 Day(s) or Less
- 4 Day(s) or Less
- 5 Day(s) or Less
- 6 Day(s) or Less
- 7 Day(s) or Less
- 8 Day(s) or Less
- 9 Day(s) or Less
- 10 Day(s) or Less
Related Categories to Dowel Pins, Spring Pins, Stepped Pins
- Credit Card
- Bank Transfer
Social Media
MISUMI Contact
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?
How can we improve?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy
Thank you for your cooperation.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy
